Toyota CROWN — INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
W/MOON ROOF,LIGHT BLUE,BLUE,TRIM8#
W/MOON ROOF,BEIGE,BEIGE,TRIM3#,4#
W/MOON ROOF,BLUE,BLUE,TRIM8#
W/MOON ROOF,BEIGE,BEIGE,TRIM3#,4#
W/MOON ROOF,BLUE,BLUE,TRIM8#
W/MOON ROOF,BEIGE,BEIGE GRAY,TRIM3#,4#
LIGHT BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#,4#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#,4#
81240BBULB, ROOM LAMP, NO.1
12V 10W,12V 10W,NO.2
12V 10W,12V 10W
81241LENS, ROOM LAMP, NO.1
W/MOON ROOF
W/MOON ROOF
81250LAMP ASSY, ROOM, NO.2
RH,LIGHT-BLUE,BLUE,TRIM8#
RH,BEIGE,BEIGE,TRIM3#,4#
RH,W/RR COOLER,LIGHT BLUE,BLUE,TRIM8#
RH,W/RR COOLER,BEIGE,BEIGE,TRIM3#,4#
LIGHT BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#,4#
LH,LIGHT-BLUE,BLUE,TRIM8#
LH,BEIGE,BEIGE,TRIM3#,4#
LH,W/RR COOLER,LIGHT BLUE,BLUE,TRIM8#
LH,W/RR COOLER,BEIGE,BEIGE,TRIM3#,4#
81250BBULB, ROOM LAMP, NO.2
12V 10W,12V 10W
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
LIGHT BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#,4#
W/MOON ROOF,LIGHT BLUE,BLUE,TRIM8#
W/MOON ROOF,BEIGE,BEIGE,TRIM3#,4#
81260CBULB(FOR MAP LAMP)
12V 8W,W/MOON ROOF,12V 8W
12V 10W,12V 10W
81261LENS AND COVER, MAP LAMP
BEIGE,W/MOON ROOF,BEIGE,TRIM3#,4#
LIGHT BLUE,W/MOON ROOF,BLUE,TRIM8#
LIGHT BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM3#,4#
81268CAP MAP LAMP
BEIGE,W/MOON ROOF,BEIGE,TRIM3#,4#
LIGHT BLUE,W/MOON ROOF,BLUE,TRIM8#
9016445005
main90164-45005
9351013008
main93510-13008
9351024516
main93510-24516
9354024016
main93540-24016

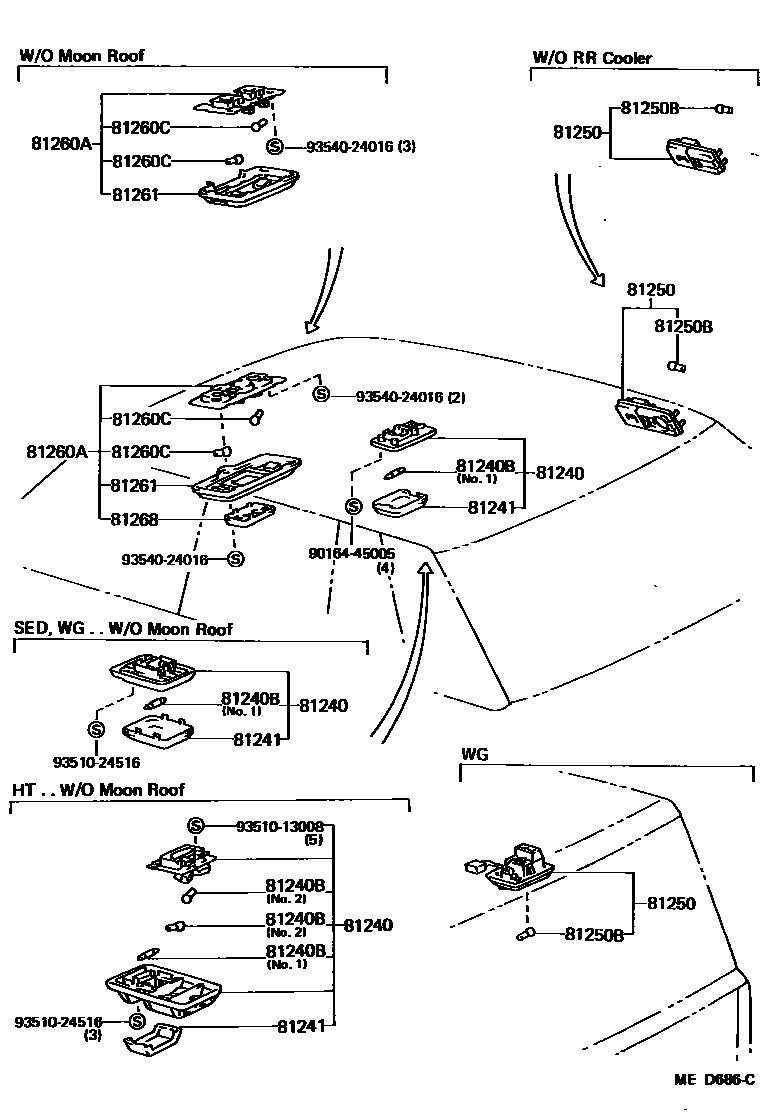

14 parts on this diagram · 2 diagrams in section
INTERIOR LAMP for Toyota CROWN
This section contains 39 genuine Toyota parts for the INTERIOR LAMP system of the Toyota CROWN. Key components include: BULB, ASH RECEPTACLE LAMP, LAMP ASSY, COURTESY, BULB(FOR COURTESY LAMP), LENS, COURTESY LAMP, LAMP ASSY, ROOM, NO.1.
