Toyota CROWN — INSTRUMENT PANEL & GLOVE COMPARTMENT

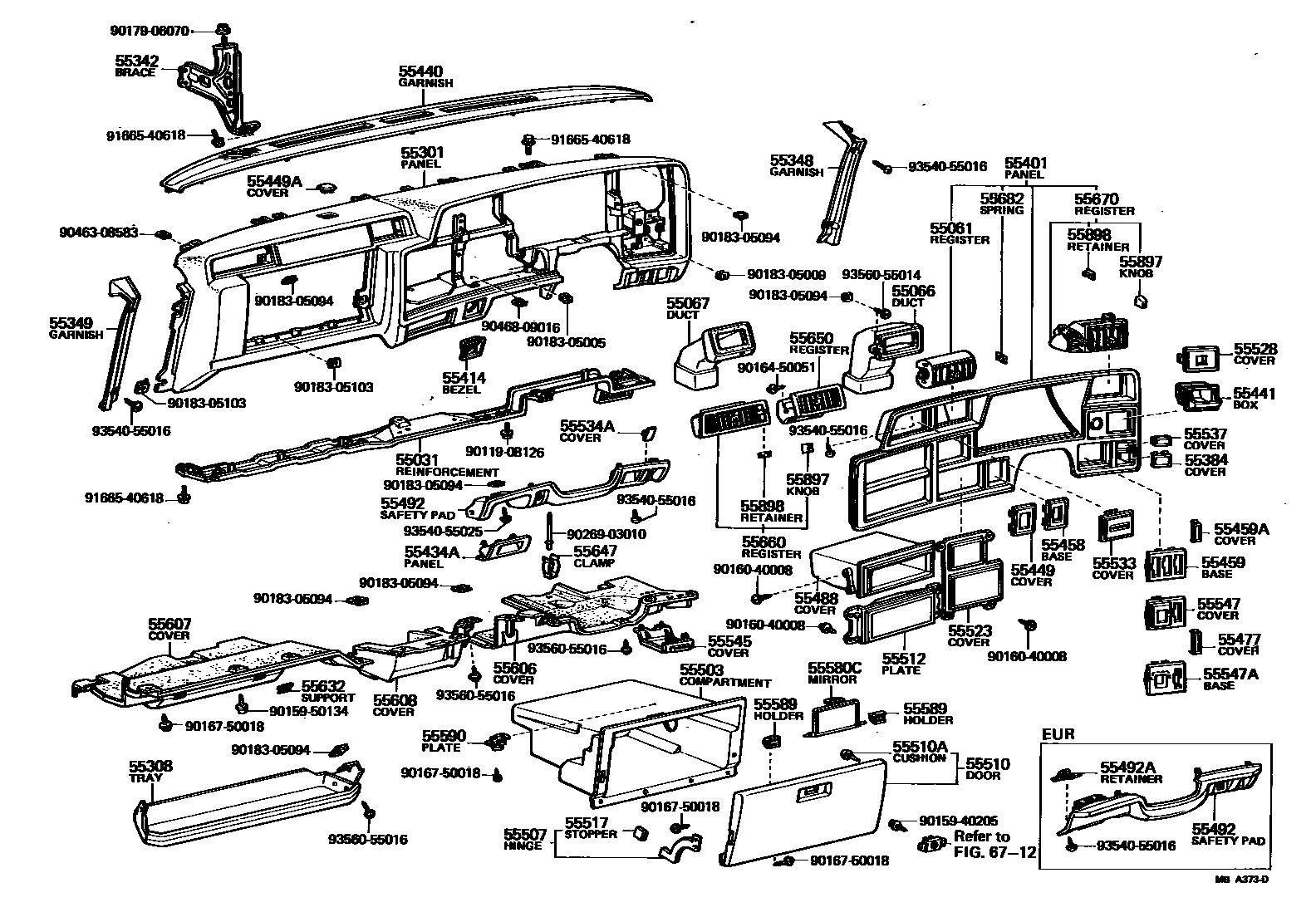

Parts diagram
55031REINFORCEMENT, INSTRUMENT PANEL, NO.1
main55305-30100i197909-198107
main55305-30101i198107-198307
main55305-30110i197909-198107
main55305-30111i198107-198307
55061REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1
main55061-30020i197909-198307
55066DUCT SUB-ASSY, AIR OUTLET, CENTER
main55835-30080i198108-198307
main55835-30090i197909-198307
55067DUCT SUB-ASSY, AIR OUTLET, CENTER NO.2
main55836-30040i197909-198108
main55836-30050i197909-198307
55301PANEL SUB-ASSY, INSTRUMENT
main55301-30220-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main55301-30220-03i198108-198307
GRAY,GRAY,TRIM1#
main55301-30220-04i197909-198108
BLUE,BLUE,TRIM8#
main55301-30220-05i197909-198108
GREIGE,BEIGE,TRIM4#
main55301-30220-15i198108-198307
BEIGE,BEIGE,TRIM4#
main55301-30230-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main55301-30230-03i198108-198307
GRAY,GRAY,TRIM1#
main55301-30230-04i197909-198108
BLUE,BLUE,TRIM8#
main55301-30230-05i197909-198108
GREIGE,BEIGE,TRIM4#
main55301-30230-15i198108-198307
BEIGE,BEIGE,TRIM4#
55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER
main55601-30050-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main55601-30050-03i198108-198307
GRAY,GRAY,TRIM1#
main55601-30050-04i198108-198307
BLUE,BLUE,TRIM8#
main55601-30050-05i197909-198108
GREIGE,BEIGE,TRIM4#
main55601-30050-15i198108-198307
BEIGE,BEIGE,TRIM4#
main55601-30060-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main55601-30060-03i198108-198307
GRAY,GRAY,TRIM1#
main55601-30060-04i198108-198307
BLUE,BLUE,TRIM8#
main55601-30060-05i197909-198108
GREIGE,BEIGE,TRIM4#
main55601-30060-15i198108-198307
BEIGE,BEIGE,TRIM4#
55342BRACE, INSTRUMENT PANEL, NO.2
main55306-30070i197909-198307
main55306-30080i197909-198307
55348GARNISH, INSTRUMENT PANEL SIDE, RH
main55435-30090-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main55435-30090-03i198108-198307
GRAY,GRAY,TRIM1#
main55435-30090-04i198108-198307
BLUE,BLUE,TRIM8#
main55435-30090-05i197909-198108
GREIGE,BEIGE,TRIM4#
main55435-30090-15i198108-198307
BEIGE,BEIGE,TRIM4#
55349GARNISH, INSTRUMENT PANEL SIDE, LH
main55436-30040-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main55436-30040-03i198108-198307
GRAY,GRAY,TRIM1#
main55436-30040-04i198108-198307
BLUE,BLUE,TRIM8#
main55436-30040-05i197909-198108
GREIGE,BEIGE,TRIM4#
main55436-30040-15i198108-198307
BEIGE,BEIGE,TRIM4#
55384COVER, BASE SWITCH HOLE
main55384-20011i197909-198108
55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
main55404-30370i197909-198108
main55404-30390i197909-198108
main55404-30400i197909-198108
main55404-30410i197909-198108
main55404-30420i197909-198108
main55404-30430i197909-198108
main55404-30480i198108-198307
main55404-30490i198108-198307
main55404-30500i198108-198307
main55404-30510i198108-198307
55414BEZEL, CIGAR LIGHTER HOLE
main55477-30010i197909-198307
55434APANEL, INSTRUMENT FINISH, LOWER SUB
main55434-30040-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main55434-30040-03i198108-198307
GRAY,GRAY,TRIM1#
main55434-30040-04i198108-198307
BLUE,BLUE,TRIM8#
main55434-30040-05i197909-198108
GREIGE,BEIGE,TRIM4#
main55434-30040-15i198108-198307
BEIGE,BEIGE,TRIM4#
55440GARNISH, INSTRUMENT PANEL, CENTER
main55044-30090-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main55044-30090-03i198108-198307
GRAY,GRAY,TRIM1#
main55044-30090-04i197909-198108
BLUE,BLUE,TRIM8#
main55044-30090-05i197909-198108
GREIGE,BEIGE,TRIM4#
main55044-30090-15i198108-198307
BEIGE,BEIGE,TRIM4#
55441BOX, INSTRUMENT PANEL
main55408-30020i197909-198108
55449COVER, COOLER SWITCH HOLE
main55549-30040i197909-198108
main55549-30050i198108-198307
WOODY
55449ACOVER, COOLER SENSOR HOLE
main55548-30050-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main55548-30050-03i198108-198307
GRAY,GRAY,TRIM1#
main55548-30050-04i197909-198108
BLUE,BLUE,TRIM8#
main55548-30050-05i197909-198108
GREIGE,BEIGE,TRIM4#
main55548-30050-15i198108-198307
BEIGE,BEIGE,TRIM4#
55458BASE, REAR WIPER SWITCH
main55458-30040i197909-198307
55459BASE, TRANSMISSION CONTROL SWITCH
main55459-30040i197909-198108
55459ACOVER, TRANSMISSION CONTROL SWITCH
main55537-16010-01i197909-198108
BLACK
55477COVER, OVERDRIVE KNOB HOLE
main55537-16010-01i197909-198307
BLACK
55488COVER, STEREO OPENING
main55521-30080i197909-198108
main55521-30090i198108-198307
55492GARNISH OR SAFETY PAD, LOWER, RH
main55045-30010-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main55045-30010-04i197909-198108
BLUE,BLUE,TRIM8#
main55045-30010-05i197909-198108
GREIGE,BEIGE,TRIM4#
main55045-30030-03i198108-198307
ENGLAND SPEC,GRAY,GRAY,TRIM1#
main55045-30030-04i198108-198307
ENGLAND SPEC,BLUE,BLUE,TRIM8#
main55045-30030-15i198108-198307
ENGLAND SPEC,BEIGE,BEIGE,TRIM4#
main55432-30070-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main55432-30070-03i198108-198307
GRAY,GRAY,TRIM1#
main55432-30070-04i198108-198307
BLUE,BLUE,TRIM8#
main55432-30070-05i198002-198108
W/TILT STEERING,GREIGE,BEIGE,TRIM4#
main55432-30070-15i198108-198307
BEIGE,BEIGE,TRIM4#
main55432-30080-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main55432-30080-03i198108-198307
GRAY,GRAY,TRIM1#
main55432-30080-04i197909-198108
BLUE,BLUE,TRIM8#
main55432-30080-05i197909-198108
GREIGE,BEIGE,TRIM4#
main55432-30080-15i198108-198307
BEIGE,BEIGE,TRIM4#
55492ARETAINER, INSTRUMENT PANEL FINISH, LOWER
main55429-30010i198108-198307
ENGLAND SPEC
55503COMPARTMENT SUB-ASSY, GLOVE
main55506-30010i197909-198307
main55506-30020i197909-198307
55507HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR
main55556-30040i197909-198307
55510DOOR ASSY, GLOVE COMPARTMENT
main55550-30170-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main55550-30170-03i198108-198307
GRAY,GRAY,TRIM1#
main55550-30170-04i197909-198108
BLUE,BLUE,TRIM8#
main55550-30170-05i197909-198108
GREIGE,BEIGE,TRIM4#
main55550-30170-15i198108-198307
BEIGE,BEIGE,TRIM4#
55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)
main90541-03015×2i197909-198307
55512PLATE, RADIO TUNER FINISH
main55522-30030i197909-198108
main55522-30050i198108-198307
55517STOPPER, GLOVE COMPARTMENT DOOR ARM
main55517-14010i197909-198307
55523COVER, HEATER CONTROL OPENING
main55523-30030i197909-198307
main55523-30040i197909-198108
55528COVER, AUTO DRIVE OPENING
main55528-22010i198108-198307
main55528-30020i197909-198108
55533COVER, AUTO CLOCK HOLE
main55533-30080i197909-198108
55534ACOVER, ILLUMINATION LAMP HOLE
main55534-30050-02i198002-198108
W/TILT STEERING,DARK WINE,RED/MAROON,TRIM3#
main55534-30050-03i198108-198307
GRAY,GRAY,TRIM1#
main55534-30050-04i197909-198108
BLUE,BLUE,TRIM8#
main55534-30050-05i198002-198108
W/TILT STEERING,GREIGE,BEIGE,TRIM4#
main55534-30050-15i198108-198307
BEIGE,BEIGE,TRIM4#
55537COVER, REAR WINDOW DEFOGGER SWITCH HOLE
main55537-30050i197909-198108
55545COVER, FUSE BOX OPENING
main55540-30040-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main55540-30040-04i197909-198108
BLUE,BLUE,TRIM8#
main55540-30040-05i197909-198108
GREIGE,BEIGE,TRIM4#
main55540-30050-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main55540-30050-04i197909-198108
BLUE,BLUE,TRIM8#
main55540-30050-05i197909-198108
GREIGE,BEIGE,TRIM4#
main55540-30060-03i198108-198307
GRAY,GRAY,TRIM1#
main55540-30060-04i198108-198307
BLUE,BLUE,TRIM8#
main55540-30060-05i198108-198307
BEIGE,BEIGE,TRIM4#
main55540-30070-03i198108-198307
GRAY,GRAY,TRIM1#
main55540-30070-04i198108-198307
BLUE,BLUE,TRIM8#
main55540-30070-05i198108-198307
BEIGE,BEIGE,TRIM4#
55547COVER, REMOTE CONTROL MIRROR HOLE
main55547-30070i197909-198108
55547ABASE, REMOTE CONTROL MIRROR HOLE
main55446-30100i198108-198307
BLACK
main55446-30120i198108-198307
WOODY
main55446-30130i198108-198307
WOODY
main55446-30140i198108-198307
BLACK
55580CMIRROR ASSY, GLOVE COMPARTMENT DOOR
main55580-30010i197909-198307
55589HOLDER, GLOVE COMPARTMENT MIRROR
main55588-30010i197909-198307
RH
main55589-30010i197909-198307
LH
55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER
main55590-12010i197909-198307
55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
main55606-30040-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main55606-30040-03i198108-198307
GRAY,GRAY,TRIM1#
main55606-30040-04i197909-198108
BLUE,BLUE,TRIM8#
main55606-30040-05i197909-198108
GREIGE,BEIGE,TRIM4#
main55606-30040-15i198108-198307
BEIGE,BEIGE,TRIM4#
main55606-30050-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main55606-30050-03i198108-198307
GRAY,GRAY,TRIM1#
main55606-30050-04i198108-198307
BLUE,BLUE,TRIM8#
main55606-30050-05i197909-198108
GREIGE,BEIGE,TRIM4#
main55606-30050-15i198108-198307
BEIGE,BEIGE,TRIM4#
55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
main55607-30010-02i197909-198010
DARK WINE,RED/MAROON,TRIM3#
main55607-30010-04i197909-198010
BLUE,BLUE,TRIM8#
main55607-30010-05i197909-198010
GREIGE,BEIGE,TRIM4#
main55607-30011-02i198010-198108
DARK WINE,RED/MAROON,TRIM3#
main55607-30011-03i198108-198307
GRAY,GRAY,TRIM1#
main55607-30011-04i198010-198108
BLUE,BLUE,TRIM8#
main55607-30011-05i198010-198108
GREIGE,BEIGE,TRIM4#
main55607-30011-15i198108-198307
BEIGE,BEIGE,TRIM4#
main55607-30020-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main55607-30020-03i198108-198307
GRAY,GRAY,TRIM1#
main55607-30020-04i198108-198307
BLUE,BLUE,TRIM8#
main55607-30020-05i197909-198108
GREIGE,BEIGE,TRIM4#
main55607-30020-15i198108-198307
BEIGE,BEIGE,TRIM4#
55608COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.3
main55608-30010-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main55608-30010-03i198108-198307
GRAY,GRAY,TRIM1#
main55608-30010-04i198108-198307
BLUE,BLUE,TRIM8#
main55608-30010-05i197909-198108
GREIGE,BEIGE,TRIM4#
main55608-30010-15i198108-198307
BEIGE,BEIGE,TRIM4#
main55608-30020-02i197909-198108
DARK WINE,RED/MAROON,TRIM3#
main55608-30020-03i198108-198307
GRAY,GRAY,TRIM1#
main55608-30020-04i197909-198108
BLUE,BLUE,TRIM8#
main55608-30020-05i197909-198108
GREIGE,BEIGE,TRIM4#
main55608-30020-15i198108-198307
BEIGE,BEIGE,TRIM4#
55632SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.1
main55632-30020×2i197909-198307
55647CLAMP, INSTRUMENT PANEL UNDER COVER
main55647-30010i197909-198307
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
main55650-30040i197909-198108
main55650-30050i197909-198108
main55650-30080i198108-198307
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
main55660-30020i197909-198108
main55660-30030i197909-198108
main55660-30040i197909-198108
main55660-30050i197909-198108
main55660-30070i198108-198307
main55660-30080i198108-198307
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
main55670-30010i197909-198307
main55670-30020i197909-198307
55682SPRING, INSTRUMENT PANEL REGISTER SUPPORT
main55682-30020×2i197909-198307
55897KNOB, AIR DAMPER CONTROL LEVER
main55897-30030×2i197909-198307
55898RETAINER, AIR DAMPER CONTROL LEVER KNOB
main55918-22010×2i197909-198307
6712LOCK CYLINDER SET
→ Go to FIG 67-12
9011908126
main90119-08126
9015940205
main90159-40205
9015950134
main90159-50134
9016040008
main90160-40008
9016450051
main90164-50051
9016750018
main90167-50018
9017906070
main90179-06070
9018305005
main90183-05005
9018305009
main90183-05009
9018305094
main90183-05094
9018305103
main90183-05103
9026903010
main90269-03010
9046308583
main90463-08583
9046809016
main90468-09016
9166540618
main91665-40618
9354055016
main93540-55016
9354055025
main93540-55025
9356055014
main93560-55014
9356055016
main93560-55016

72 parts on this diagram · 2 diagrams in section

INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota CROWN

This section contains 75 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota CROWN. Key components include: REINFORCEMENT, INSTRUMENT PANEL, NO.1, REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1, DUCT SUB-ASSY, AIR OUTLET, CENTER, DUCT SUB-ASSY, AIR OUTLET, CENTER NO.2, PANEL SUB-ASSY, INSTRUMENT.
