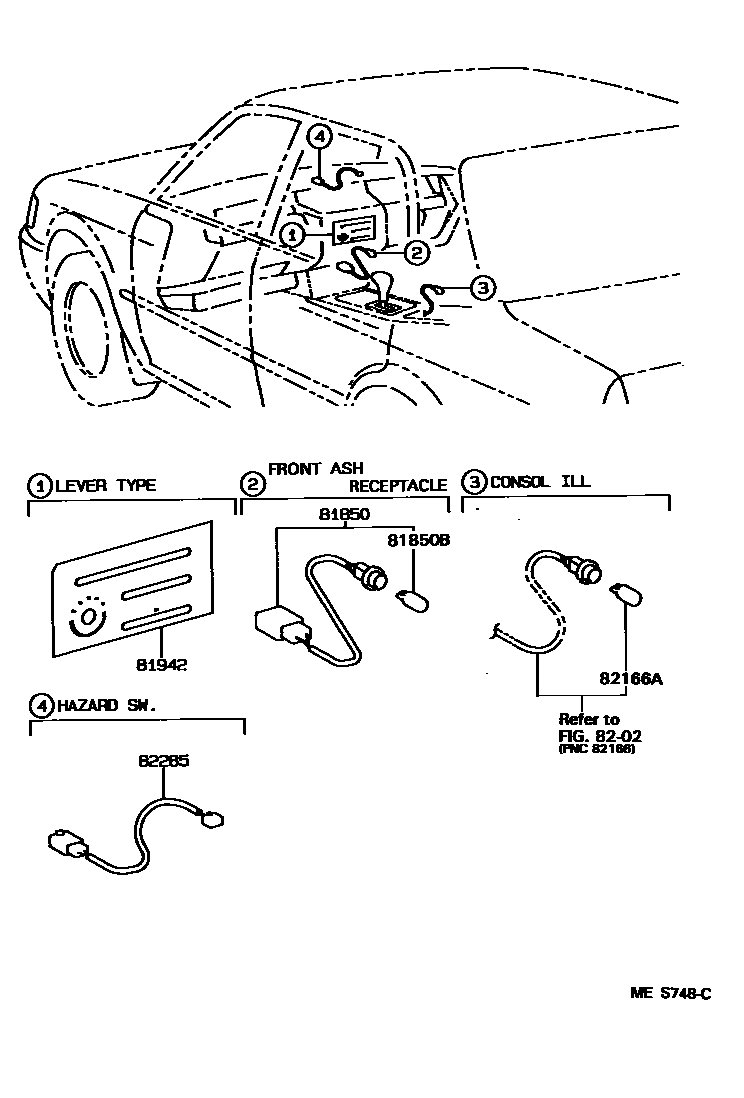

Toyota CROWN — INDICATOR

81850LAMP ASSY, INDICATOR

main81850-33010iGS131,JZS133,LS130,YS132199110-200104

81850BBULB, INDICATOR LAMP

main90981-11014iGS131,JZS133,LS130,YS132199110-200104

14V 1.4W

81942SHEET, HEATER CONTROL NAME

main81942-30060iLS130..RHD199110-199512

main81942-30070iLS130..RHD199110-199512

W(AIR CONDITIONER)

8202

82166ABULB, CONSOLE BOX

main90981-11014iGS131,JZS133..RHD..4FC..Q199110-200104

82285WIRE, ILLUMINATION

main82285-30060iLS130..LHD;GS131,JZS133,YS132199110-199407

6 parts on this diagram · 1 diagram in section
