Toyota CROWN — INDICATOR

8121

81850LAMP ASSY, INDICATOR

main81850-30090iLS130,MS13#,YS132198709-198812

81850BBULB, INDICATOR LAMP

main90981-11014iGS131,LS130,MS13#,YS132198812-199110

14V 1.4W

81879BRACKET, INDICATOR LAMP

main81879-30010×2iMS132,135..SED,WG198709-198812

main81879-30020×2iMS133,135..HT198709-199110

81942SHEET, HEATER CONTROL NAME

main81942-30060iLS130..4H199008-199110

main81942-30070iLS130..4H198908-199008

main81942-30130iLS130..LHD198709-198908

main81942-30140iGS131..SAL198908-199110

TEMP

82166ABULB, CONSOLE BOX

main90981-11014iMS135..RHD..4FC198908-199110

82285WIRE, ILLUMINATION

main82285-30010iGS131,MS132,135..RHD..4FC..ROY198709-198908

REAR CIGARETTE

main82285-30020iGS131,LS130,MS13#,YS132198709-199110

FRONT CIGARETTE

main82285-30030iMS132,133..SAL,SALEX;GS131,LS130,YS132..4F,5F;MS132,135..LHD..(ROY,STD)198709-199110

REAR CIGARETTE

main82285-30050iLS130..LHD;GS131,MS13#,YS132198709-198908

HAZARD SW.

main82285-30060iYS132;GS131,LS130,MS13#..4F,4FC,4HC,5F198908-199008

HAZARD SW.

main82285-30070iGS131,MS135..RHD..4FC198908-199110

REAR CIGARETTE

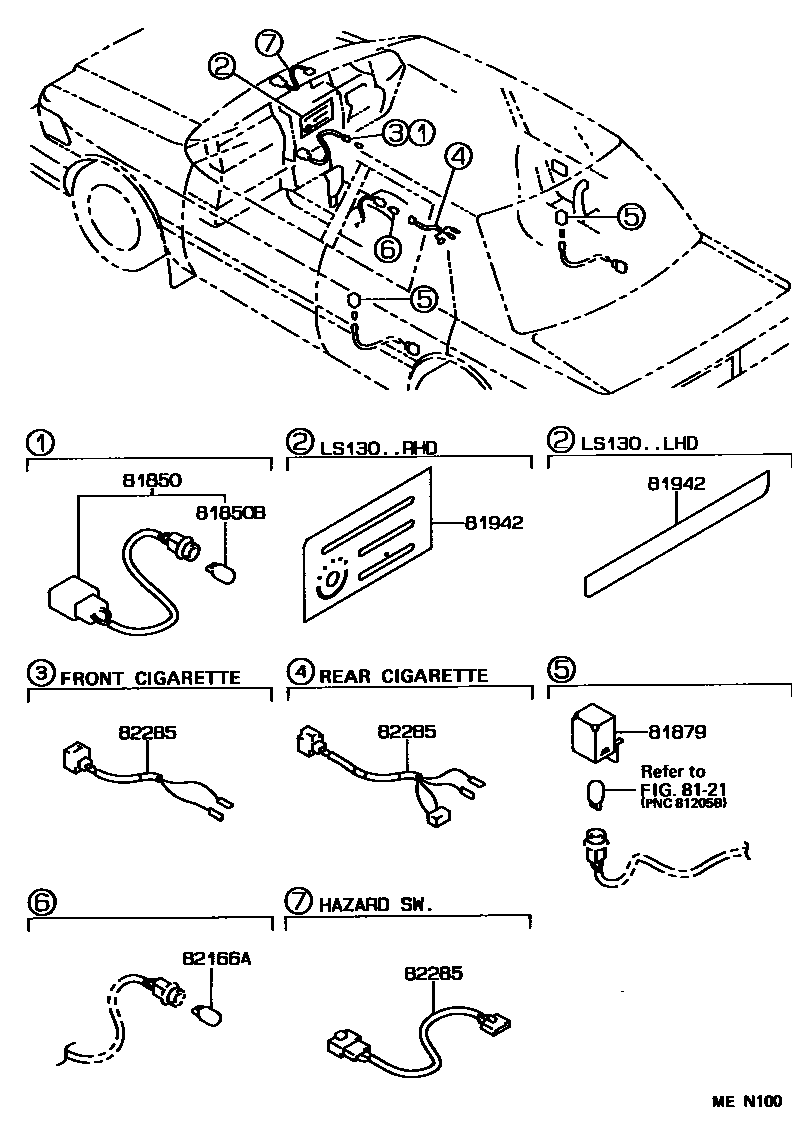

7 parts on this diagram · 1 diagram in section
