Toyota CROWN — IGNITION COIL & SPARK PLUG / GLOW PLUG

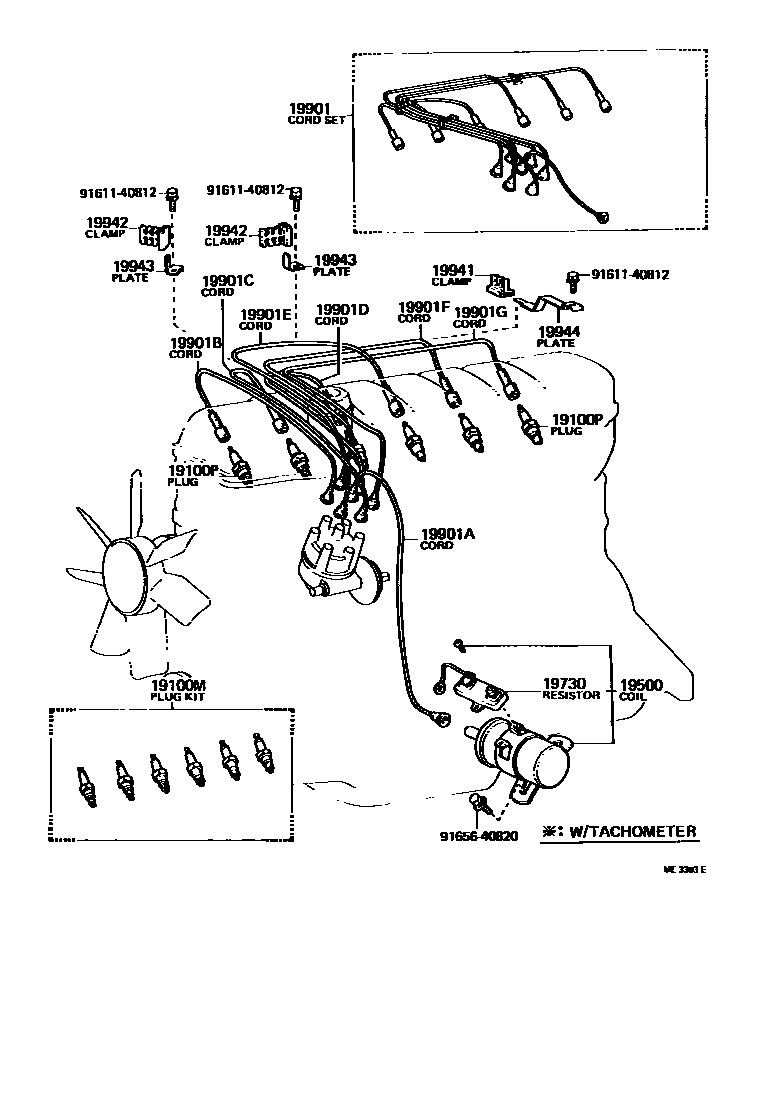

Parts diagram

19100MPLUG KIT, SPARK

main04195-34110i197708-197802

W16EX-U

main04195-41010i197410-197802

W16EP

19100PPLUG, SPARK

main90919-01027×6i197611-197802

W16EP OR W16EX-U,W16EP

main90919-01041×4i197410-197611

W16EX

main90919-01051×4i197410-197611

W16EPR OR W16EXR-U,W16EPR,E.C.E.NO.10

main90919-01057×6i197611-197908

W20EPR

main90919-01059×4i197708-197802

W16EX-U,W16EX-U

main90919-01064×4i197802-197908

W16EXR-U,W16EXR-U

19500COIL ASSY, IGNITION

main90919-02049i197410-197510

main90919-02064i197410-197511

main90919-02081i197511-197802

main90919-02088i197611-197908

19730RESISTOR, IGNITION COIL

main90919-04004i197410-197611

main90919-04019i197802-197908

19901CORD SET, COIL & SPARK, W/RESISTIVE

main90919-21064i197604-197611

main90919-21091i197410-197604

main90919-21092i197410-197412

main90919-21093i197412-197512

main90919-21103i197512-197904

main90919-21223i197904-197908

19901ACORD, COIL RESISTIVE

main90919-13033i197512-197904

main90919-13036i197412-197512

main90919-13039i197505-197908

main90919-13128i197904-197908

main99231-10340i197410-197505

main99231-10430i197410-197412

19901BCORD, SPARK PLUG RESISTIVE, NO.1

main90919-12123i197604-197611

main90919-12139i197604-197611

main90919-12146i197506-197904

main90919-12180i197611-197908

main90919-12311i197904-197908

main99221-10290i197410-197506

main99221-10590i197410-197505

19901CCORD, SPARK PLUG RESISTIVE, NO.2

main90919-12124i197604-197611

main90919-12140i197505-197604

main90919-12145i197506-197904

main90919-12181i197611-197908

main90919-12310i197904-197908

main99221-10240i197410-197506

main99221-10670i197410-197505

19901DCORD, SPARK PLUG RESISTIVE, NO.3

main90919-12125i197604-197611

main90919-12141i197604-197611

main90919-12145i197506-197904

main90919-12182i197611-197908

main90919-12310i197904-197908

main99221-10240i197410-197506

main99221-10720i197410-197505

19901ECORD, SPARK PLUG RESISTIVE, NO.4

main90919-12126i197604-197611

main90919-12142i197505-197604

main90919-12146i197506-197904

main90919-12183i197611-197908

main90919-12311i197904-197908

main99221-10290i197410-197506

main99221-10810i197410-197505

19901FCORD, SPARK PLUG RESISTIVE, NO.5

main90919-12127i197604-197611

main90919-12143i197604-197611

main90919-12184i197611-197908

main99221-10895i197410-197505

19901GCORD, SPARK PLUG RESISTIVE, NO.6

main90919-12128i197604-197611

main90919-12144i197505-197604

main90919-12185i197611-197908

main99221-10985i197410-197505

19941CLAMP, RESISTIVE CORD, NO.1

main90464-00001i197410-197604

main90464-00068i197604-197611

19942CLAMP, RESISTIVE CORD, NO.2

main90464-00008×2i197410-197604

main90464-00069i197604-197611

19943PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1

main19943-41020×2i197410-197604

main19943-45020i197604-197611

19944PLATE, RESISTIVE CORD CLAMP SUPPORT, NO.2

main19944-41021i197410-197604

main19944-45021×2i197604-197611

9161140812

main91611-40812

9165640820

main91656-40820

18 parts on this diagram · 3 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota CROWN

This section contains 25 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota CROWN. Key components include: PLUG KIT, SPARK, PLUG, SPARK, COIL ASSY, IGNITION, RESISTOR, IGNITION COIL, CORD SET, COIL & SPARK, W/RESISTIVE.
