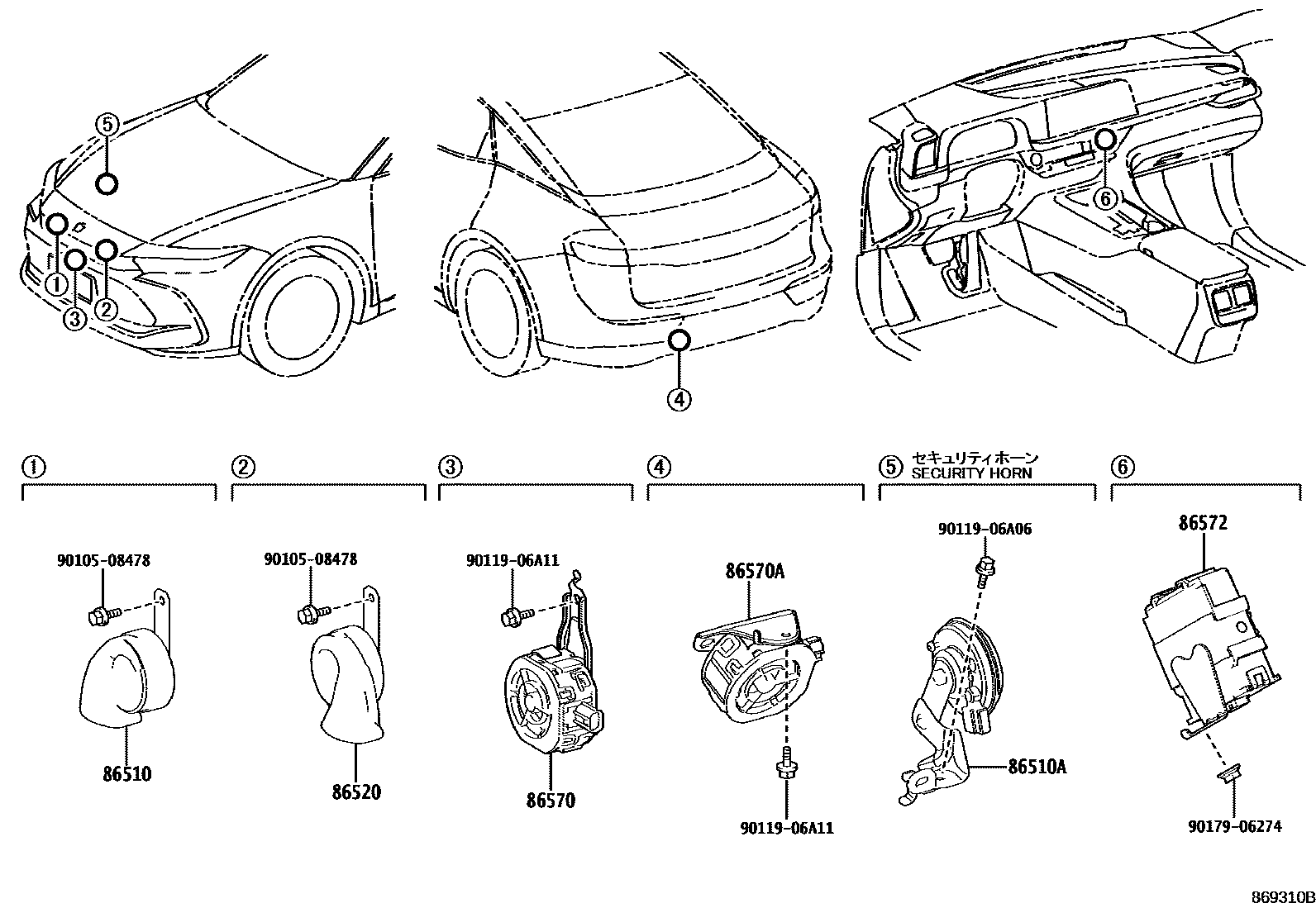

Toyota CROWN — HORN

86510HORN ASSY, HIGH PITCHED

main86510-26130i202301-202303

main86510-26131i202304-202504

main86510-78020i202301-202503

86510AHORN ASSY, SECURITY

main86560-33060i202301-202503

86520HORN ASSY, LOW PITCHED

main86520-26200i202301-202303

main86520-26201i202304-202504

main86520-78020i202301-202503

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-30110i202301-202404

main86570-30110i202301

TAIWAN SPEC

86570ASPEAKER ASSY, VEHICLE APPROACHING, NO.2

main86570-30120i202301-202404

main86570-30120i202301

TAIWAN SPEC

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-30120i202301-202404

TAIWAN SPEC

main865H2-30100i202404

9010508478

main90105-08478

9011906A06

main90119-06A06

9011906A11

main90119-06A11

9017906274

main90179-06274

10 parts on this diagram · 2 diagrams in section

HORN for Toyota CROWN

This section contains 10 genuine Toyota parts for the HORN system of the Toyota CROWN. Key components include: HORN ASSY, HIGH PITCHED, HORN ASSY, SECURITY, HORN ASSY, LOW PITCHED, SPEAKER ASSY, VEHICLE APPROACHING, SPEAKER ASSY, VEHICLE APPROACHING, NO.2.
