Toyota CROWN — HORN
86510HORN ASSY, HIGH PITCHED
DENSO
main86510-20230iGS131..RHD;JZS133..LHD..4FC;JZS133..5F..GCC..Q;JZS133..5F..(D,G,J); JZS133..RHD..4FC..GEN; LS130,YS132..LHD199110-199512
W(AM/FM/SW ETR 5BUTTON 1DIN RADIO); W(AM/FM/SW RADIO)
MARUKO
main86510-30500iJZS133..5F..J;JZS133..5F..GEN..G;JZS133,LS130,YS132..LHD..(4F,4FC)..GEN199212-199512
CHINA SPEC
86511COVER, HIGH PITCHED HORN
86520HORN ASSY, LOW PITCHED
DENSO
main86520-22230iGS131..RHD;JZS133..LHD..4FC;JZS133..5F..GCC..Q;JZS133..5F..(D,G,J); JZS133..RHD..4FC..GEN; LS130,YS132..LHD199110-199512
W(AM/FM/SW ETR 5BUTTON 1DIN RADIO); W(AM/FM/SW RADIO)
MARUKO
main86520-30480iJZS133..5F..J;JZS133..5F..GEN..G;JZS133,LS130,YS132..LHD..(4F,4FC)..GEN199212-199512
CHINA SPEC
9011908718
main90119-08718

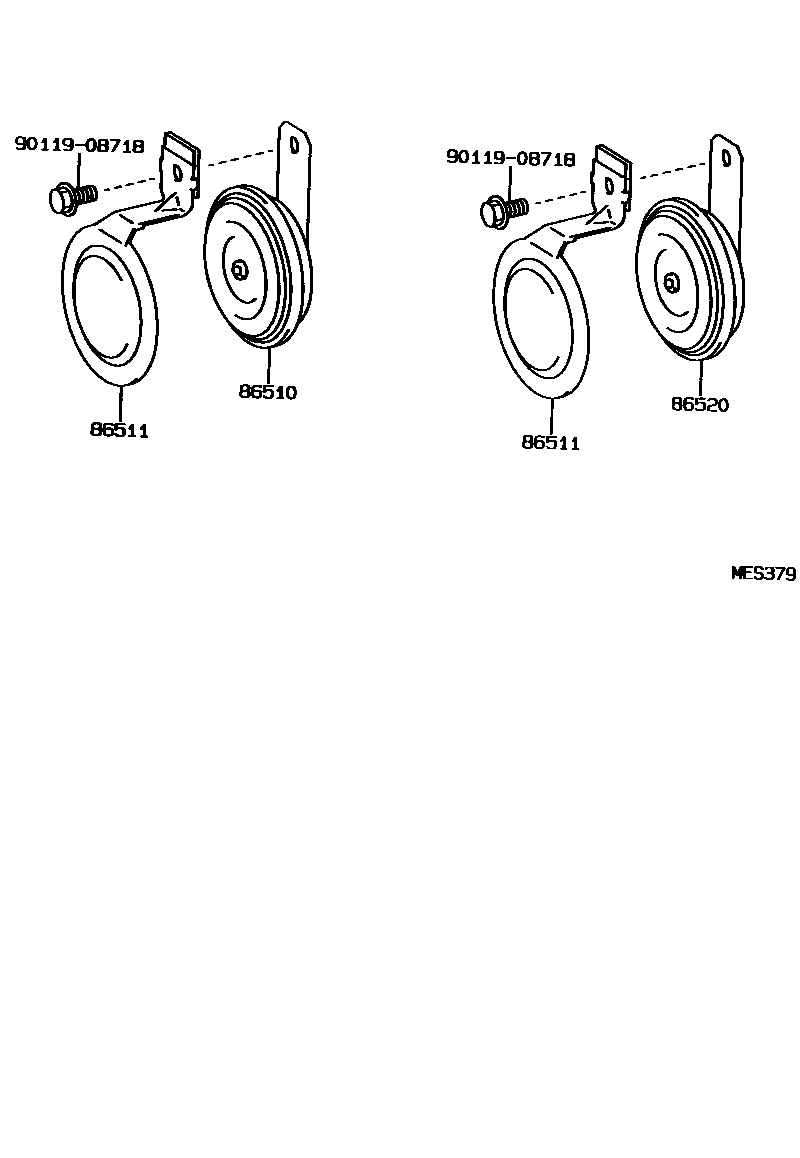

4 parts on this diagram · 1 diagram in section
HORN for Toyota CROWN
This section contains 4 genuine Toyota parts for the HORN system of the Toyota CROWN. Key components include: HORN ASSY, HIGH PITCHED, COVER, HIGH PITCHED HORN, HORN ASSY, LOW PITCHED.
