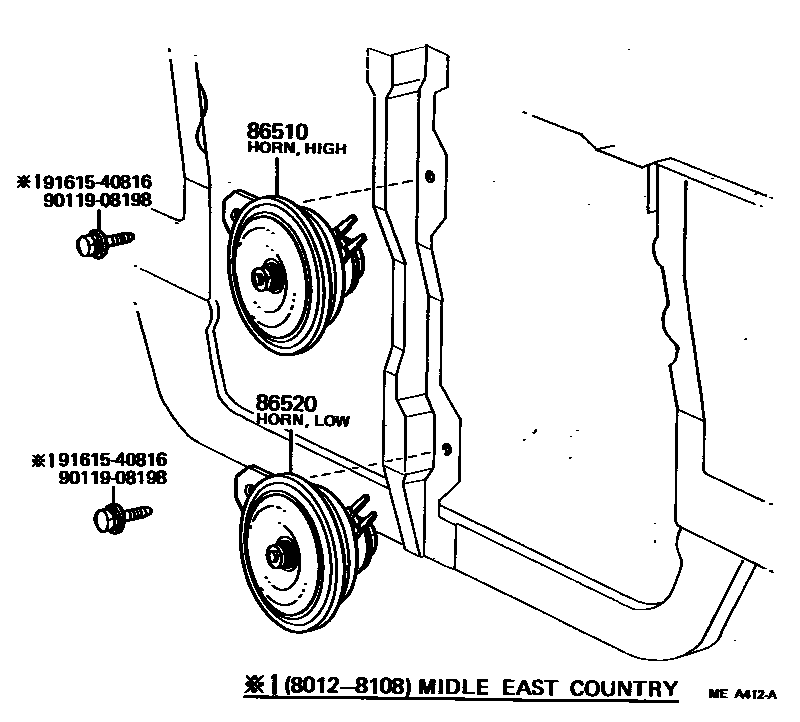

Toyota CROWN — HORN

86510HORN ASSY, HIGH PITCHED

main86510-30280i197909-198108

DENSO

main86510-30290i197909-198108

MARUKO

main86510-30300i197909-198302

main86510-30301i198302-198307

main86510-30331i198202-198307

CHINA SPEC

main86510-30340i198012-198108

MIDDLE EAST COUNTRY SPEC

main86510-30350i198108-198307

DENSO

main86510-30360i198108-198307

MARUKO

main86510-30370i198206-198307

RADIO RECEIVER=MW/SW

86520HORN ASSY, LOW PITCHED

main86520-30280i197909-198108

DENSO

main86520-30290i197909-198108

MARUKO

main86520-30300i197909-198302

main86520-30301i198302-198307

main86520-30331i198202-198307

CHINA SPEC

main86520-30340i198012-198108

MIDDLE EAST COUNTRY SPEC

main86520-30350i198108-198307

DENSO

main86520-30360i198108-198307

MARUKO

main86520-30370i198206-198307

RADIO RECEIVER=MW/SW

9011908198

main90119-08198

9161540816

main91615-40816

4 parts on this diagram · 1 diagram in section

HORN for Toyota CROWN

This section contains 4 genuine Toyota parts for the HORN system of the Toyota CROWN. Key components include: HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED.
