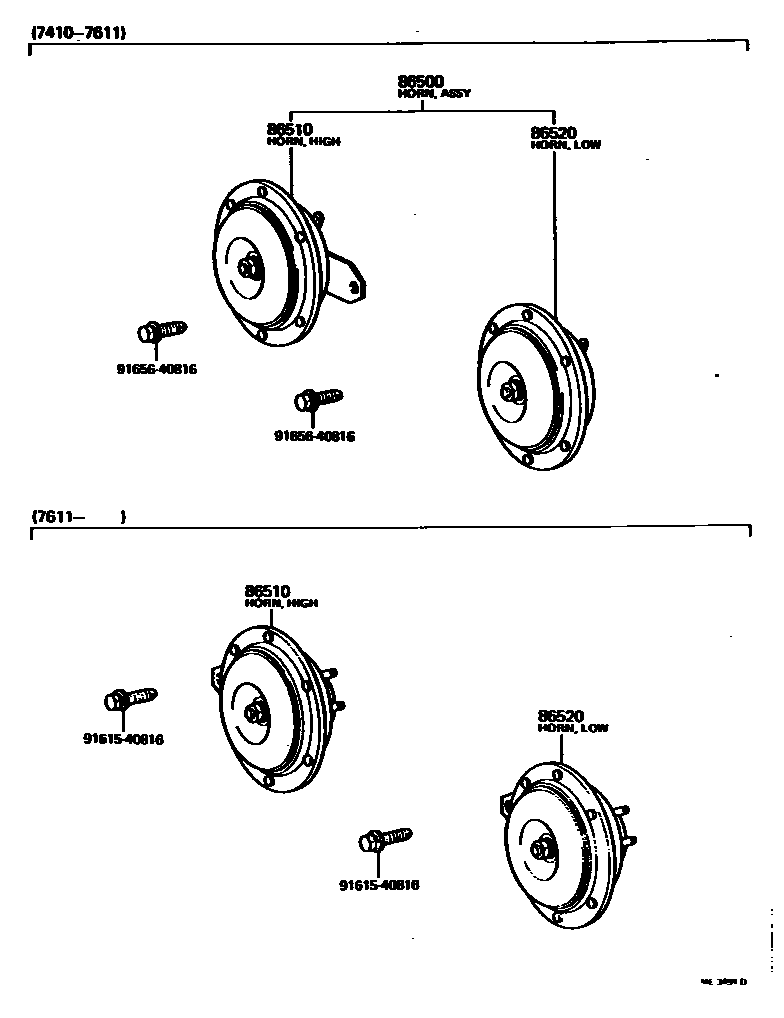

Toyota CROWN — HORN

86500HORN ASSY

main86500-30150i197410-197611

DENSO

main86500-30160i197410-197611

MARUKO

main86500-30210i197410-197611

EUR.SPEC.

86510HORN ASSY, HIGH PITCHED

main86510-30150i197410-197611

DENSO

main86510-30160i197410-197611

MARUKO

main86510-30210i197410-197611

EUR.SPEC.

main86510-30220i197611-197802

DENSO

main86510-30240i197611-197802

EUR.SPEC.

main86510-30250i197802-197811

DENSO

main86510-30260i197802-197908

MARUKO

main86510-30270i197802-197908

EUR.SPEC.

main86510-30310i197811-197908

DENSO

86520HORN ASSY, LOW PITCHED

main86520-30150i197410-197611

DENSO

main86520-30160i197410-197611

MARUKO

main86520-30210i197410-197611

EUR.SPEC.

main86520-30220i197611-197908

DENSO

main86520-30240i197611-197802

EUR.SPEC.

main86520-30250i197802-197811

DENSO

main86520-30260i197802-197908

MARUKO

main86520-30270i197802-197908

EUR.SPEC.

9161540816

main91615-40816

9165640816

main91656-40816

5 parts on this diagram · 1 diagram in section

HORN for Toyota CROWN

This section contains 5 genuine Toyota parts for the HORN system of the Toyota CROWN. Key components include: HORN ASSY, HORN ASSY, HIGH PITCHED, HORN ASSY, LOW PITCHED.
