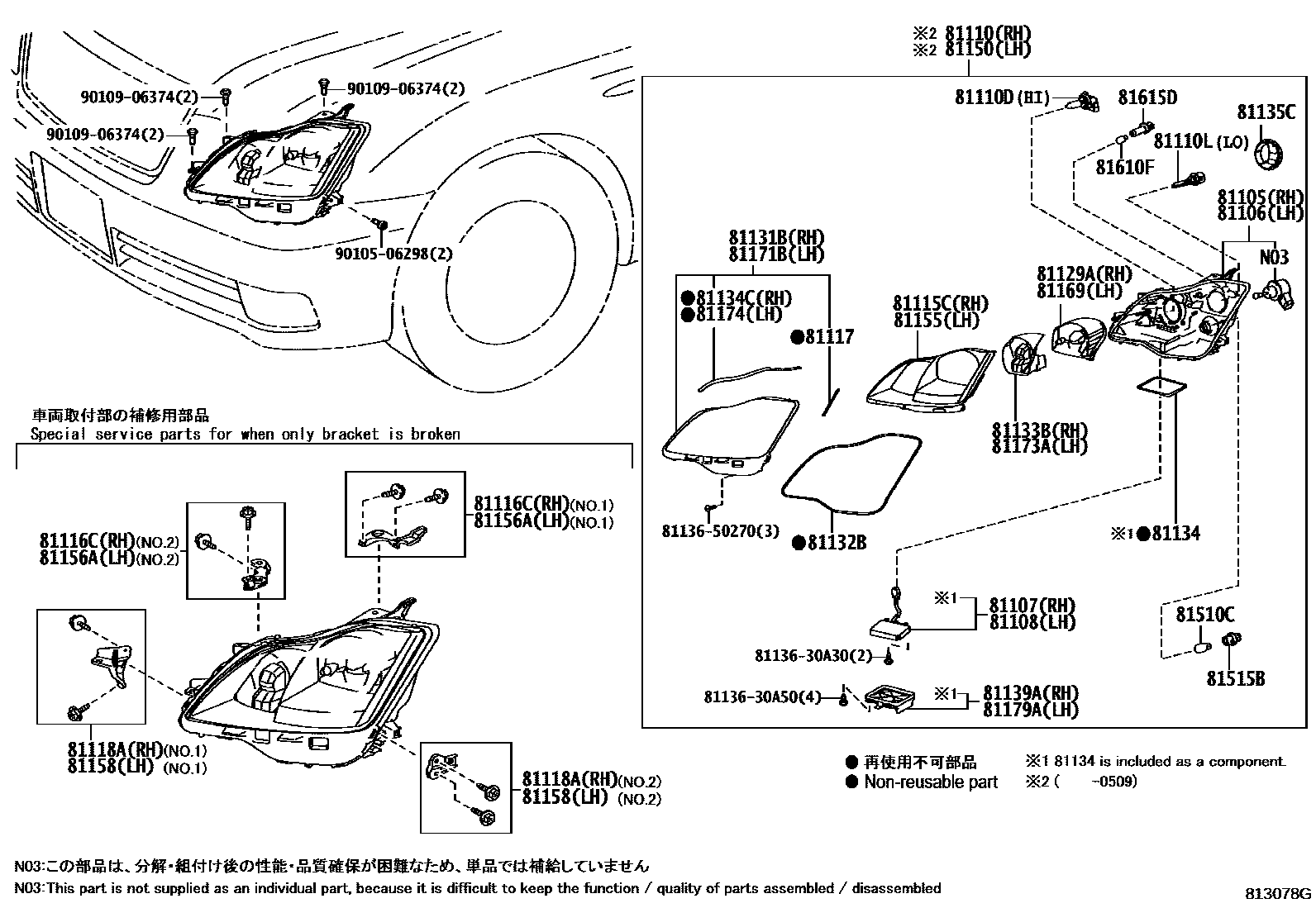

Toyota CROWN — HEADLAMP
81105HOUSING SUB-ASSY, HEADLAMP, RH
81106HOUSING SUB-ASSY, HEADLAMP, LH
81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81110HEADLAMP ASSY, RH
81110DBULB(FOR HEADLAMP, NO.2)
12V 65W
81110LBULB, DISCHARGE HEADLAMP
85V 35W
81116CBRACKET, HEADLAMP, RH
NO.2
NO.1
81117PACKING, HEADLAMP HOUSING
81118ABRACKET, HEADLAMP, RH
NO.1
NO.2
81129AREFLECTOR, HEADLAMP, RH
81131BHEAD LAMP LENS, RH
81132BGASKET, HEADLAMP LENS
81133BBODY & REFLECTOR, HEADLAMP, RH
81134CGASKET, HEADLAMP BODY, RH
81135CCOVER, HEADLAMP BACK, NO.1
81139ACOVER, LIGHT CONTROL COMPUTER, RH
81150HEADLAMP ASSY, LH
81156ABRACKET, HEADLAMP, LH
NO.2
NO.1
81158BRACKET, HEADLAMP, LH
NO.1
NO.2
81169REFLECTOR, HEADLAMP, LH
81171BHEAD LAMP LENS, LH
81173ABODY & REFLECTOR, HEADLAMP, LH
81174GASKET, HEADLAMP BODY, LH
81179ACOVER, LIGHT CONTROL COMPUTER, LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615DSOCKET, CLEARANCE LAMP
8113630A30PROTECTOR, HEADLAMP, NO.1 RH
main81136-30A30
8113630A50PROTECTOR, HEADLAMP, NO.1 RH
main81136-30A50
8113650270PROTECTOR, HEADLAMP, NO.1 RH
main81136-50270
9010506298
main90105-06298
9010906374
main90109-06374
37 parts on this diagram · 1 diagram in section
HEADLAMP for Toyota CROWN
This section contains 37 genuine Toyota parts for the HEADLAMP system of the Toyota CROWN. Key components include: HOUSING SUB-ASSY, HEADLAMP, RH, HOUSING SUB-ASSY, HEADLAMP, LH, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH, COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH, HEADLAMP ASSY, RH.
