Toyota CROWN — HEADLAMP

53183HSEAL, HEADLAMP COVER, RH

main53183-30110i199909-200108

53184FSEAL, HEADLAMP COVER, LH

main53184-30080i199909-200108

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13055×2i199909-200108

12V 60/55W,HALOGEN

main90981-13058×2i200108-200312

12V 60/55W,HALOGEN

main90981-22004×2i199909-200108

12V 60/55W,*HAL *WH

81125CORD, HEADLAMP

main81125-3A550×2i199909-200011

main81125-3A551×2i200011-200108

81135UNIT ASSY, HEADLAMP, RH

main81130-3A550i200108-200312

81144COVER, HEADLAMP, NO.1

main90075-65002×2i199909-200108

main90075-65019×2i200108-200312

81175UNIT ASSY, HEADLAMP, LH

main81170-3A670i199909-200108

81360JBULB, CORNERING LAMP

main90981-13043×2i199909-200108

12V 21W

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2i199909-200108

12V 21W,AMBER

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i199909-200108

12V 5W

9010906225

main90109-06225

9046707137

main90467-07137

9046708187

main90467-08187

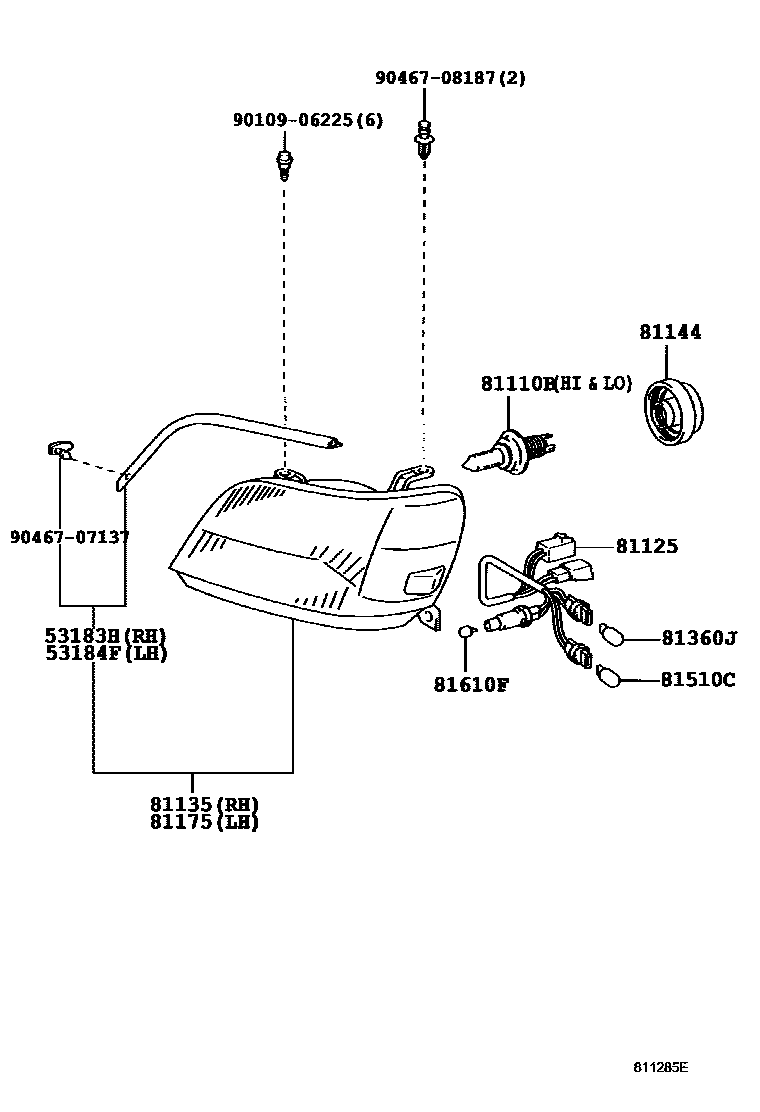

13 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota CROWN

This section contains 13 genuine Toyota parts for the HEADLAMP system of the Toyota CROWN. Key components include: SEAL, HEADLAMP COVER, RH, SEAL, HEADLAMP COVER, LH, BULB(FOR HEADLAMP, NO.1), CORD, HEADLAMP, UNIT ASSY, HEADLAMP, RH.
