Toyota CROWN — HEADLAMP

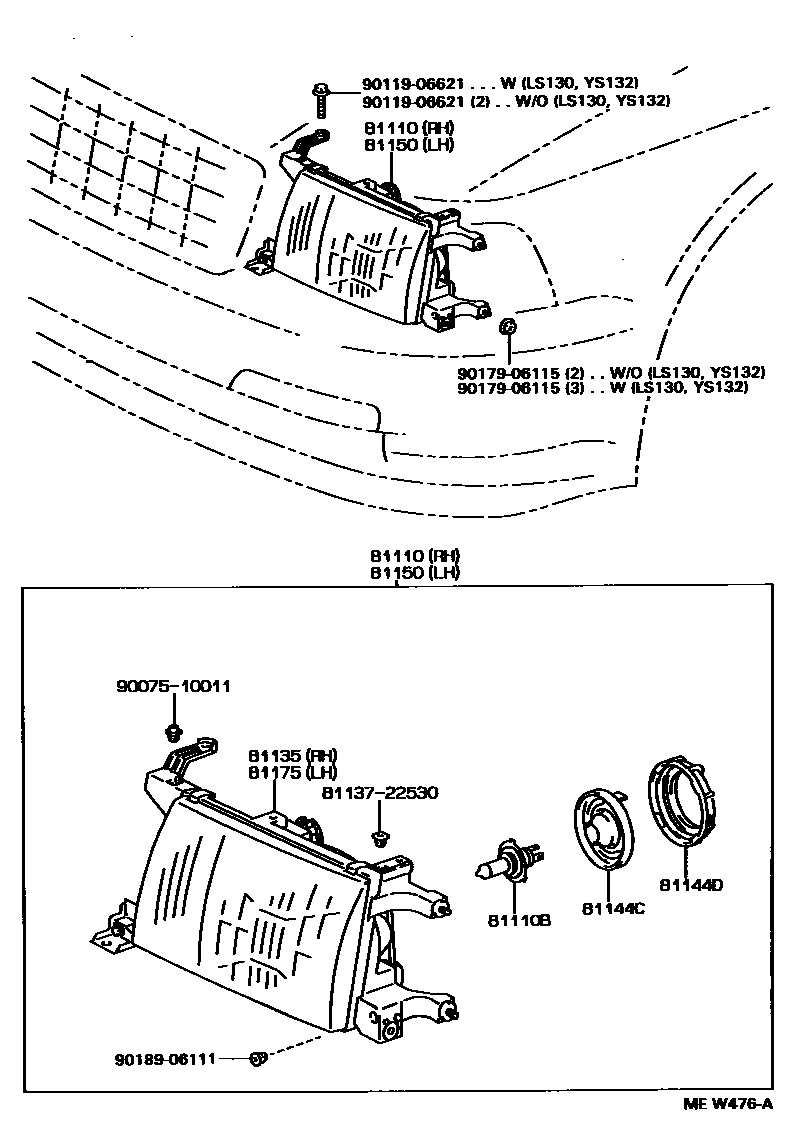

Parts diagram
81110HEADLAMP ASSY, RH
main81110-31010i199809-200104
W(FOG LAMP)
main81110-3A030i199110-199308
W(FOG LAMP)
main81110-3A040i199110-199308
W/O(FOG LAMP)
main81110-3A060i199110-199308
main81110-3A070i199110-199308
W(FOG LAMP)
main81110-3A080i199110-199308
main81110-3A090i199110-199308
main81110-3A100i199110-199308
W(HALOGEN & FOG LAMP); W(HALOGEN)
main81110-3A110i199110-199308
W(HALOGEN)
main81110-3A120i199110-199308
W(HALOGEN)
main81110-3A130i199110-199308
W(WHITE FOG LAMP)
main81110-3A260i199308-199809
W(FOG LAMP)
main81110-3A270i199308-200104
main81110-3A280i199308-199512
main81110-3A290i199308-199512
main81110-3A300i199712-199904
main81110-3A310i199308-199512
main81110-3A320i199308-199512
main81110-3A330i199308-199512
W(HALOGEN & FOG LAMP); W(HALOGEN)
main81110-3A340i199308-199512
W(HALOGEN)
main81110-3A350i199308-199512
W(HALOGEN)
main81110-3A360i199308-199512
W(WHITE FOG LAMP)
81110BBULB(FOR HEADLAMP, NO.1)
main90981-13015×2i199404-199510
12V 60/55W,*HAL *WH; 12V 60/55W,*HAL *WH,FOR SED WHITE BULB
main90981-13016×2i199110-199512
12V 60/55W,*HAL *YE,HALOGEN ECE(YELLOW BULB)
main90981-22004×2i199404-199510
12V 60/55W,*HAL *WH
81135UNIT ASSY, HEADLAMP, RH
main81130-31010i199809-200104
W(FOG LAMP)
main81130-3A030i199110-199308
THAILAND SPEC & W(FOG LAMP)
main81130-3A040i199110-199308
W/O(FOG LAMP)
main81130-3A060i199110-199308
main81130-3A070i199110-199308
THAILAND SPEC & W(FOG LAMP)
main81130-3A080i199110-199308
main81130-3A090i199110-199308
main81130-3A100i199110-199308
W(HALOGEN & FOG LAMP); W(HALOGEN)
main81130-3A110i199110-199308
W(HALOGEN)
main81130-3A130i199110-199308
W(WHITE FOG LAMP)
main81130-3A260i199308-199809
W(FOG LAMP)
main81130-3A270i199308-199512
W/O(FOG LAMP)
main81130-3A280i199308-199512
main81130-3A290i199308-199512
main81130-3A300i199712-199904
main81130-3A310i199308-199512
main81130-3A320i199308-199512
main81130-3A330i199308-199512
W(HALOGEN & FOG LAMP); W(HALOGEN)
main81130-3A340i199308-199512
W(HALOGEN)
main81130-3A360i199308-199512
W(WHITE FOG LAMP)
81144CCOVER, HEADLAMP SOCKET
main90075-99058×2i199110-200104
81144DCAP, HEADLAMP LOCKING
main90075-99057×2i199110-200104
81150HEADLAMP ASSY, LH
main81150-31010i199809-200104
W(FOG LAMP)
main81150-3A030i199110-199308
W(FOG LAMP)
main81150-3A040i199110-199308
W/O(FOG LAMP)
main81150-3A060i199110-199308
main81150-3A070i199110-199308
W(FOG LAMP)
main81150-3A080i199110-199308
main81150-3A090i199110-199308
main81150-3A100i199110-199308
W(HALOGEN & FOG LAMP); W(HALOGEN)
main81150-3A110i199110-199308
W(HALOGEN)
main81150-3A120i199110-199308
W(HALOGEN)
main81150-3A130i199110-199308
W(WHITE FOG LAMP)
main81150-3A260i199308-199809
W(FOG LAMP)
main81150-3A270i199308-200104
main81150-3A280i199308-199512
main81150-3A290i199308-199512
main81150-3A300i199308-199512
W(FOG LAMP)
main81150-3A310i199308-199512
main81150-3A320i199308-199512
main81150-3A330i199308-199512
W(HALOGEN & FOG LAMP); W(HALOGEN)
main81150-3A340i199308-199512
W(HALOGEN)
main81150-3A350i199308-199512
W(HALOGEN)
main81150-3A360i199308-199512
W(WHITE FOG LAMP)
81175UNIT ASSY, HEADLAMP, LH
main81170-31010i199809-200104
W(FOG LAMP)
main81170-3A030i199110-199308
THAILAND SPEC & W(FOG LAMP)
main81170-3A040i199110-199308
W/O(FOG LAMP)
main81170-3A060i199110-199308
main81170-3A070i199110-199308
THAILAND SPEC & W(FOG LAMP)
main81170-3A080i199110-199308
main81170-3A090i199110-199308
main81170-3A100i199110-199308
W(HALOGEN & FOG LAMP); W(HALOGEN)
main81170-3A110i199110-199308
W(HALOGEN)
main81170-3A130i199110-199308
W(WHITE FOG LAMP)
main81170-3A260i199308-199809
W(FOG LAMP)
main81170-3A270i199308-199512
W/O(FOG LAMP)
main81170-3A280i199308-199512
main81170-3A290i199308-199512
main81170-3A300i199712-199904
main81170-3A310i199308-199512
main81170-3A320i199308-199512
main81170-3A330i199308-199512
W(HALOGEN & FOG LAMP); W(HALOGEN)
main81170-3A340i199308-199512
W(HALOGEN)
main81170-3A360i199308-199512
W(WHITE FOG LAMP)
8113722530PROTECTOR, HEADLAMP, NO.2 RH
main81137-22530
9007510011
main90075-10011
9011906621
main90119-06621
9017906115
main90179-06115
9018906111
main90189-06111

12 parts on this diagram · 3 diagrams in section

HEADLAMP for Toyota CROWN

This section contains 16 genuine Toyota parts for the HEADLAMP system of the Toyota CROWN. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), CORD, HEADLAMP, UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP SOCKET.
