Toyota CROWN — HEADLAMP

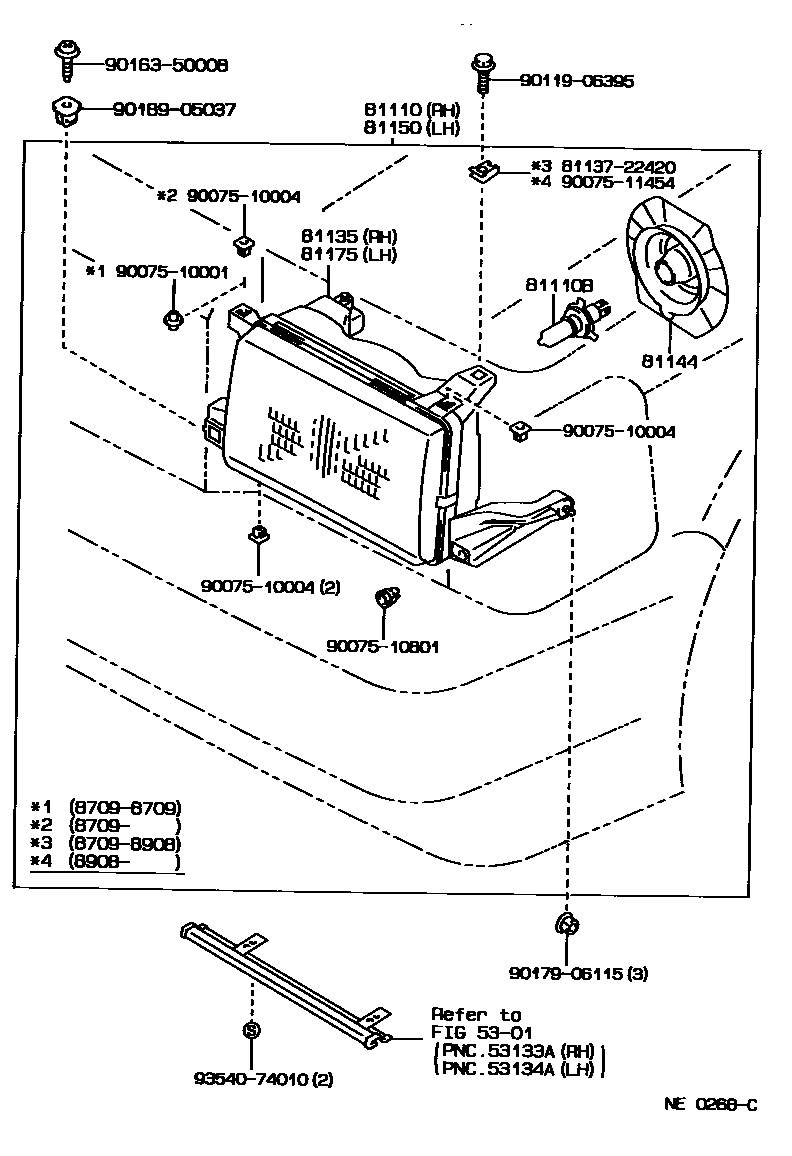

Parts diagram

5301RADIATOR GRILLE

→ Go to FIG 53-01

81110HEADLAMP ASSY, RH

main81110-30830i198709-198709

main81110-30831i198709-198908

main81110-30832i198908-199110

main81120-30780i198709-198709

LH TRAFFIC SPEC(*46)

main81120-30781i198709-198908

LH TRAFFIC SPEC(*46)

main81120-30782i198908-199110

LH TRAFFIC SPEC(*46)

main81120-30790i198709-198709

main81120-30791i198709-198809

main81120-30792i198809-198908

main81120-30793i198908-199110

main81120-30800i198709-198709

SEMI-SEALED HALOGEN,YELLOW

main81120-30801i198709-198908

SEMI-SEALED HALOGEN YELLOW

main81120-30802i198908-199110

SEMI-SEALED HALOGEN YELLOW

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2i198709-199110

12V 60/55W,*HAL *WH

main90981-13016×2i198709-199110

12V 60/55W,*HAL *YE

81135UNIT ASSY, HEADLAMP, RH

main81130-30780i198709-198709

LH TRAFFIC SPEC(*46)

main81130-30781i198709-198908

LH TRAFFIC SPEC(*46)

main81130-30782i198908-199110

LH TRAFFIC SPEC(*46)

main81130-30790i198709-198709

main81130-30791i198809-198908

SEMI-SEALED HALOGEN YELLOW

main81130-30792i198908-199110

SEMI-SEALED HALOGEN YELLOW

main81130-30793i198908-199110

main81130-30830i198709-198709

main81130-30831i198709-198908

main81130-30832i198908-199110

81144COVER, HEADLAMP, NO.1

main81139-30590×2i198709-199110

main90075-99009×2i198709-199110

81150HEADLAMP ASSY, LH

main81150-30830i198709-198709

main81150-30831i198709-198908

main81150-30832i198908-199110

main81160-30780i198709-198709

LH TRAFFIC SPEC(*46)

main81160-30781i198709-198908

LH TRAFFIC SPEC(*46)

main81160-30782i198908-199110

LH TRAFFIC SPEC(*46)

main81160-30790i198709-198709

main81160-30791i198709-198809

main81160-30792i198809-198908

main81160-30793i198908-199110

main81160-30800i198709-198709

SEMI-SEALED HALOGEN,YELLOW

main81160-30801i198709-198908

SEMI-SEALED HALOGEN YELLOW

main81160-30802i198908-199110

SEMI-SEALED HALOGEN YELLOW

81175UNIT ASSY, HEADLAMP, LH

main81170-30780i198709-198709

LH TRAFFIC SPEC(*46)

main81170-30781i198709-198908

LH TRAFFIC SPEC(*46)

main81170-30782i198908-199110

LH TRAFFIC SPEC(*46)

main81170-30790i198709-198709

main81170-30791i198809-198908

SEMI-SEALED HALOGEN YELLOW

main81170-30792i198908-199110

SEMI-SEALED HALOGEN YELLOW

main81170-30793i198908-199110

main81170-30830i198709-198709

main81170-30831i198709-198908

main81170-30832i198908-199110

8113722420PROTECTOR, HEADLAMP, NO.2 RH

main81137-22420

9007510001

main90075-10001

9007510004

main90075-10004

9007510801

main90075-10801

9007511454

main90075-11454

9011906395

main90119-06395

9016350008

main90163-50008

9017906115

main90179-06115

9018905037

main90189-05037

9354074010

main93540-74010

17 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota CROWN

This section contains 19 genuine Toyota parts for the HEADLAMP system of the Toyota CROWN. Key components include: RADIATOR GRILLE, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), RIM, HEADLAMP, RH, UNIT ASSY, HEADLAMP, RH.
