Toyota CROWN — HEADLAMP

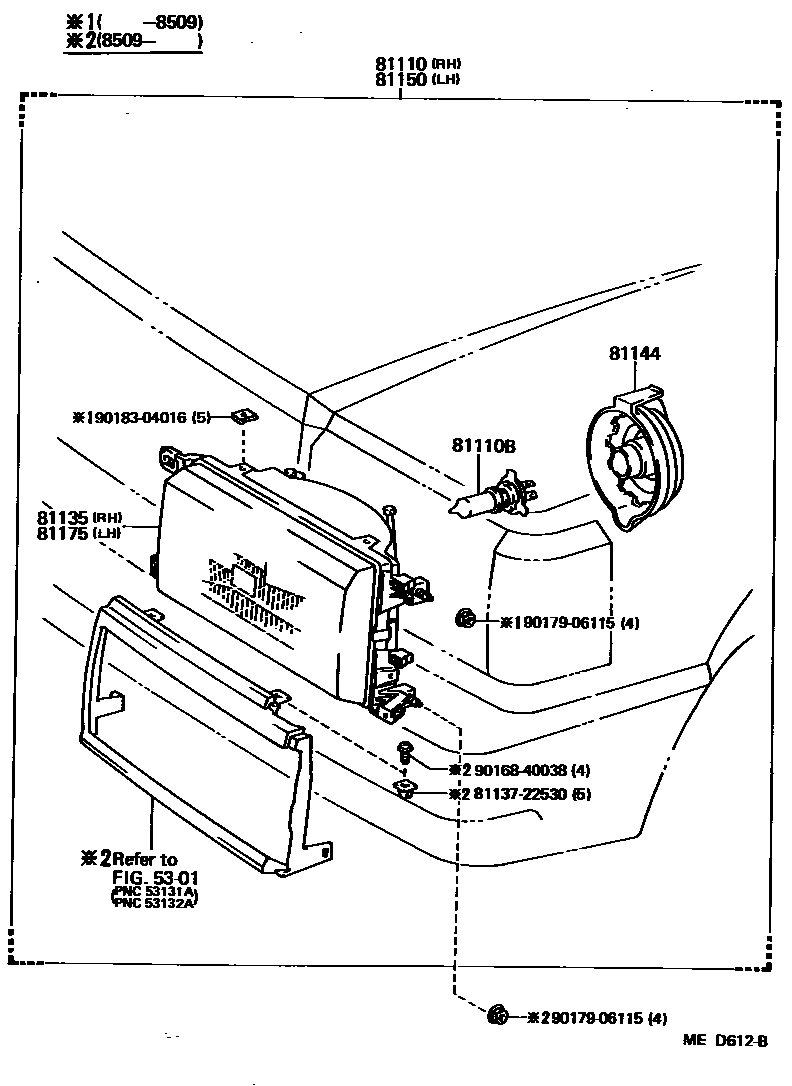

Parts diagram
5301RADIATOR GRILLE
→ Go to FIG 53-01
81110HEADLAMP ASSY, RH
main81110-30591i198509-198509
LH TRAFFIC SPEC(*46)
main81110-30592i198509-198708
LH TRAFFIC SPEC(*46)
main81110-30601i198509-198509
WHITE
main81110-30602i198509-198708
WHITE
main81110-30621i198509-198509
YELLOW
main81110-30622i198509-198708
YELLOW
main81110-30640i198509-198708
WHITE
main81110-80356i198308-198509
WHITE
main81110-80357i198308-198509
WHITE
main81110-80358i198308-198509
YELLOW
81110BBULB(FOR HEADLAMP, NO.1)
main90981-13015×2i198308-198708
12V 60/55W,*HAL *WH,12V 60/55W,HALOGEN,WHITE
main90981-13016×2i198308-198708
12V 60/55W,*HAL *YE,12V 60/55W,HALOGEN,YELLOW
81135UNIT ASSY, HEADLAMP, RH
main81130-30591i198509-198708
LH TRAFFIC SPEC(*46)
main81130-30601i198509-198708
main81130-30640i198509-198708
main81135-30590i198408-198509
LH TRAFFIC SPEC(*46)
main81135-30600i198308-198509
81144COVER, HEADLAMP, NO.1
main81139-30590×2i198509-198510
RH; RH&LH
main81179-30591i198510-198708
LH
81150HEADLAMP ASSY, LH
main81150-30701i198509-198509
LH TRAFFIC SPEC(*46)
main81150-30702i198509-198708
LH TRAFFIC SPEC(*46)
main81150-30711i198509-198509
WHITE
main81150-30712i198509-198708
WHITE
main81150-30731i198509-198509
YELLOW
main81150-30732i198509-198708
YELLOW
main81150-30750i198509-198708
WHITE
main81150-80353i198408-198509
WHITE,LH TRAFFIC SPEC(*46)
main81150-80354i198308-198509
WHITE
main81150-80355i198308-198509
YELLOW
81175UNIT ASSY, HEADLAMP, LH
main81170-30701i198509-198708
LH TRAFFIC SPEC(*46)
main81170-30711i198509-198708
main81170-30750i198509-198708
main81175-30700i198308-198408
BAHAMA SPEC
main81175-30710i198308-198509
8113722530PROTECTOR, HEADLAMP, NO.2 RH
main81137-22530
9016840038
main90168-40038
9017906115
main90179-06115
9018304016
main90183-04016

11 parts on this diagram · 2 diagrams in section

HEADLAMP for Toyota CROWN

This section contains 12 genuine Toyota parts for the HEADLAMP system of the Toyota CROWN. Key components include: RADIATOR GRILLE, HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), UNIT ASSY, HEADLAMP, RH, COVER, HEADLAMP, NO.1.
