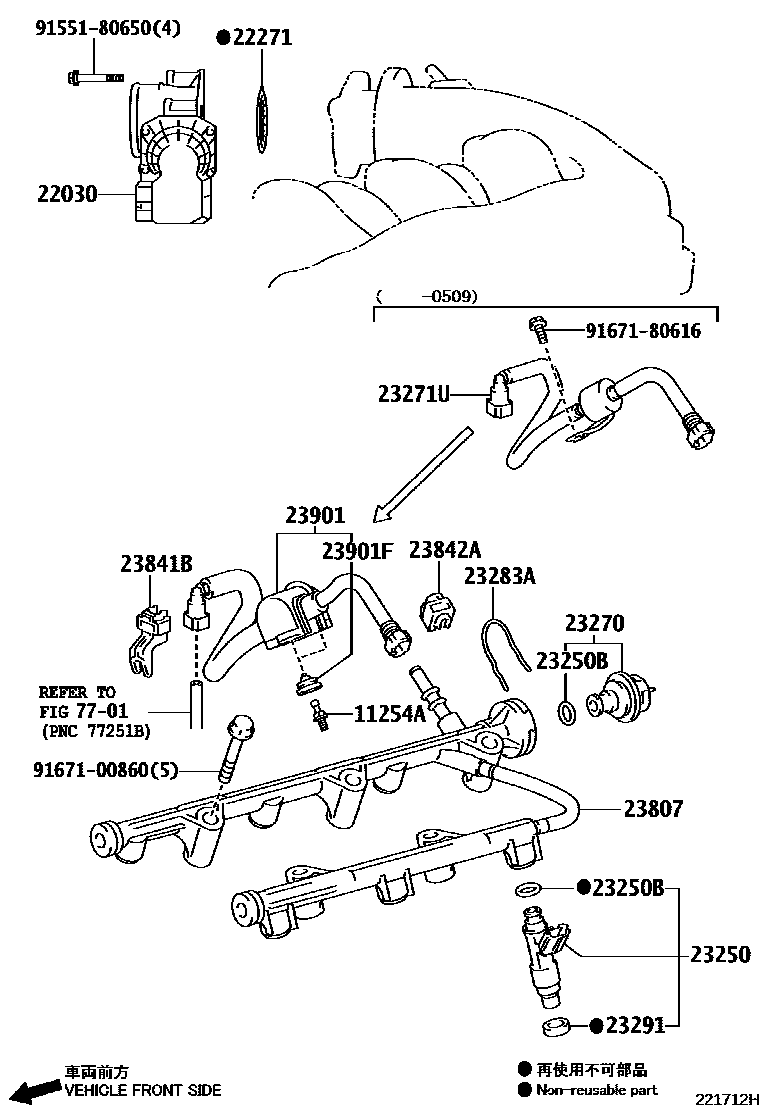

Toyota CROWN — FUEL INJECTION SYSTEM

11254ABRACKET, V-BANK COVER

main11254-31020×2i3GRFE..GRS182200509-200802

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-31020i3GRFE..GRS182200411-200509

main22030-31050i3GRFE..GRS182200509-200802

22271GASKET, THROTTLE BODY

main22271-31030i3GRFE..GRS182200411-200509

23250INJECTOR ASSY, FUEL

main23209-39065×6i3GRFE..GRS182200411-200509

main23209-39125×6i3GRFE..GRS182200509-200802

23250BRING, O(FOR FUEL INJECTOR)

main90301-07033×6i3GRFE..GRS182200411-200509

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-31010i3GRFE..GRS182200411-200509

sub23270-31080

23271UHOSE, FUEL, NO.1

main23271-31053i3GRFE..GRS182200411-200509

23283AHOLDER, FUEL PRESSURE REGULATOR

main23283-31010i3GRFE..GRS182200509-200802

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×6i3GRFE..GRS182200411-200509

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-31030i3GRFE..GRS182200411-200509

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i3GRFE..GRS182200705-200802

main23841-28010i3GRFE..GRS182200509-200704

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-31020i3GRFE..GRS182200411-200509

23901TUBE SUB-ASSY, FUEL

main23901-31130i3GRFE..GRS182200509-200603

main23901-31131i3GRFE..GRS182200603-200802

sub23901-31170

23901FGROMMET(FOR FUEL TUBE)

main90480-22024×2i3GRFE..GRS182200509-200802

7701

9155180650

main91551-80650

9167100860

main91671-00860

9167180616

main91671-80616

18 parts on this diagram · 1 diagram in section
