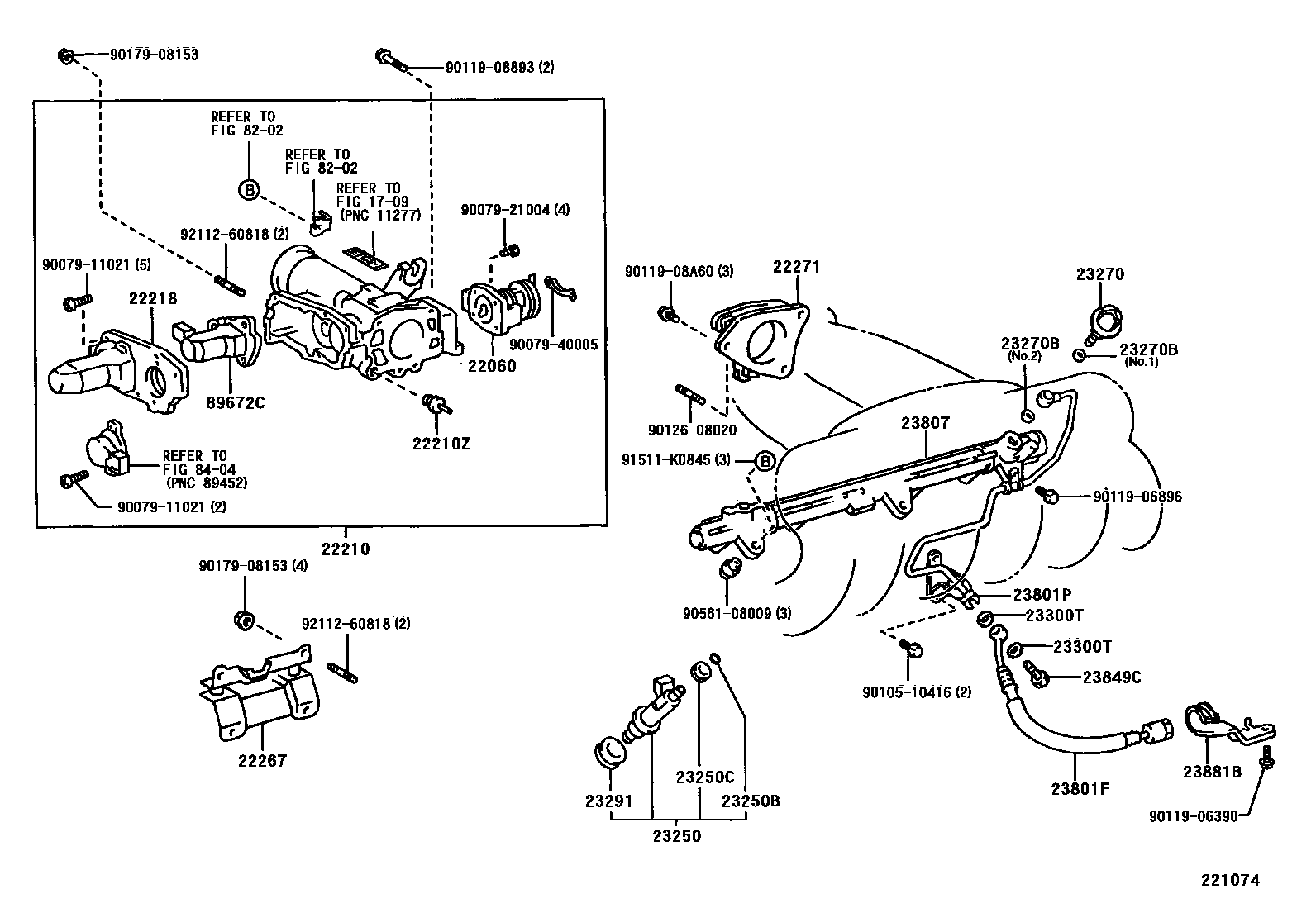

Toyota CROWN — FUEL INJECTION SYSTEM
1709CAUTION PLATE & NAME PLATE (ENGINE)
22060LEVER ASSY, THROTTLE W/SENSOR
22210BODY ASSY, THROTTLE
22210ZTHERMOSTAT, MANIFOLD
22218COVER(FOR THROTTLE BODY)
22267BRACKET, THROTTLE BODY
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270BGASKET(FOR PULSATION DAMPER HOSE)
NO.2
NO.1
23291INSULATOR, INJECTOR VIBRATION
23300TGASKET(FOR FUEL FILTER)
23801FHOSE, FUEL, NO.1
23801PPIPE SUB-ASSY, FUEL, NO.1
23807PIPE SUB-ASSY, FUEL DELIVERY
23849CBOLT, UNION(FOR FUEL PIPE SUPPORT)
23881BBRACKET, FUEL HOSE
8202WIRING & CLAMP
8404ELECTRONIC FUEL INJECTION SYSTEM
89672CMOTOR, THROTTLE CONTROL
9007911021
main90079-11021
9007921004
main90079-21004
9007940005
main90079-40005
9010510416
main90105-10416
9011906390
main90119-06390
9011906896
main90119-06896
9011908893
main90119-08893
9011908A60
main90119-08A60
9012608020
main90126-08020
9017908153
main90179-08153
9056108009
main90561-08009
91511K0845
main91511-K0845
9211260818
main92112-60818
35 parts on this diagram · 2 diagrams in section
FUEL INJECTION SYSTEM for Toyota CROWN
This section contains 42 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota CROWN. Key components include: CAUTION PLATE & NAME PLATE (ENGINE), LEVER ASSY, THROTTLE W/SENSOR, BODY ASSY, THROTTLE, THERMOSTAT, MANIFOLD, COVER(FOR THROTTLE BODY).
