Toyota CROWN — FUEL FILTER

23301ACAP ASSY, FUEL FILTER

main23301-54350i199110-199512

main23301-54370i199110-199308

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i199110-199512

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i199110-199512

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i199110-199512

23338GASKET(FOR WARNING SWITCH)

main23344-64010i199110-199512

23921SUPPORT, FUEL FILTER

main23921-54240i199110-199512

main23921-54260i199110-199308

main90929-01197i199110-199512

84461BSWITCH, LEVEL WARNING

main84461-30080i199110-199308

main84461-30090i199110-199512

9017908040

main90179-08040

9161160816

main91611-60816

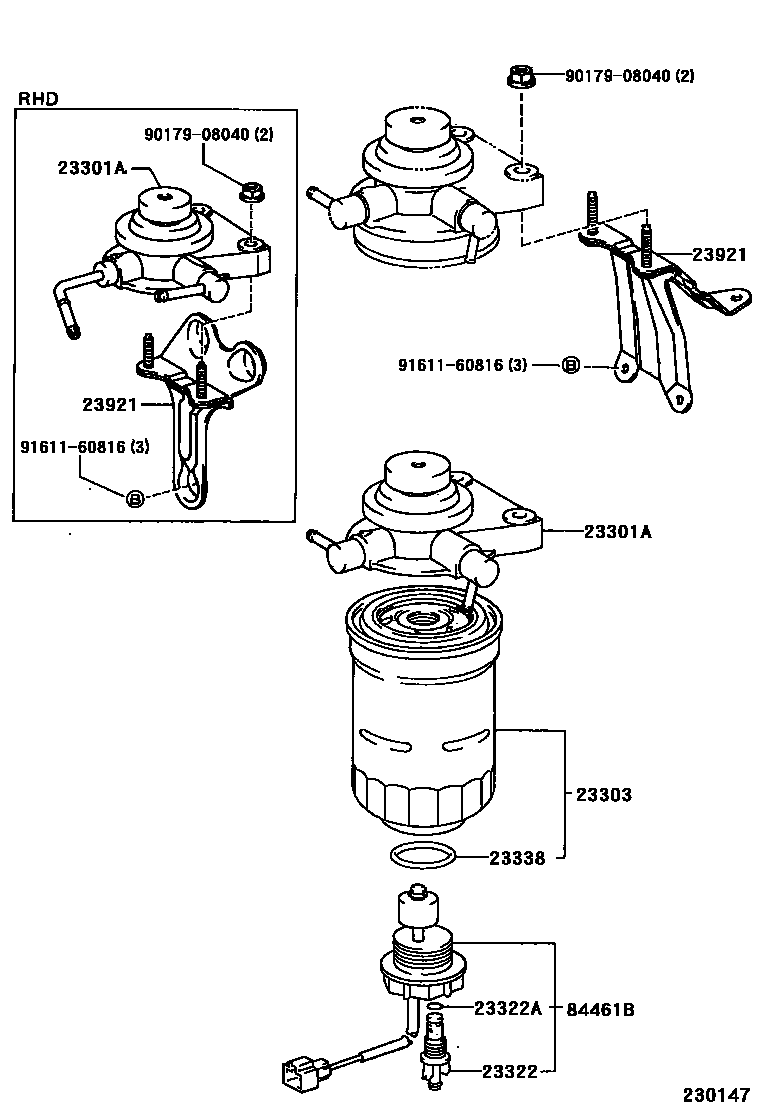

9 parts on this diagram · 2 diagrams in section

FUEL FILTER for Toyota CROWN

This section contains 11 genuine Toyota parts for the FUEL FILTER system of the Toyota CROWN. Key components include: FILTER ASSY, FUEL, CAP ASSY, FUEL FILTER, ELEMENT SUB-ASSY, FUEL FILTER, PLUG, DRAIN(FOR FUEL FILTER), RING, O(FOR DRAIN PLUG).
