Toyota CROWN — FUEL FILTER

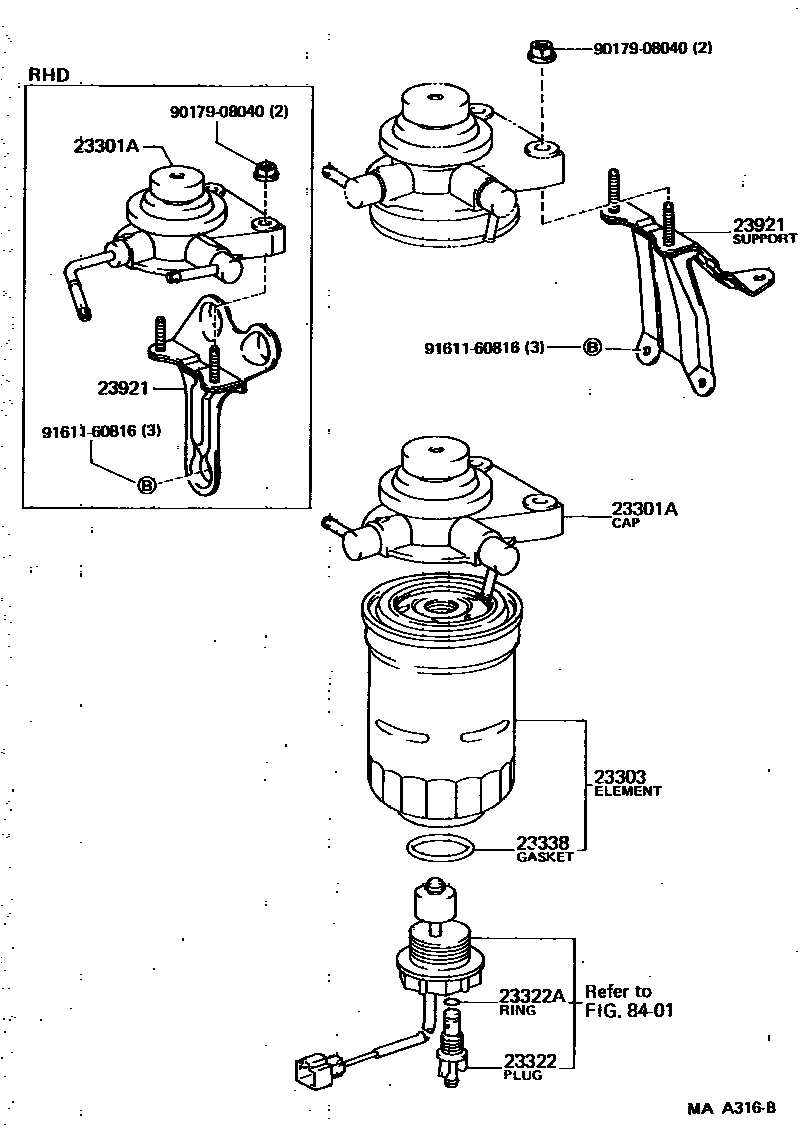

Parts diagram

23301ACAP ASSY, FUEL FILTER

main23301-54350i198709-199110

main23301-54370i198709-199110

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i198709-199110

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i198709-199110

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i198709-199110

23338GASKET(FOR WARNING SWITCH)

main23344-64010i198709-199110

23921SUPPORT, FUEL FILTER

main23921-54240i198709-199110

main23921-54260i198709-199110

main90929-01188i198709-199110

main90929-01197i198908-199110

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017908040

main90179-08040

9161160816

main91611-60816

9 parts on this diagram · 3 diagrams in section

FUEL FILTER for Toyota CROWN

This section contains 11 genuine Toyota parts for the FUEL FILTER system of the Toyota CROWN. Key components include: FILTER ASSY, FUEL, CAP ASSY, FUEL FILTER, ELEMENT SUB-ASSY, FUEL FILTER, PLUG, DRAIN(FOR FUEL FILTER), RING, O(FOR DRAIN PLUG).
