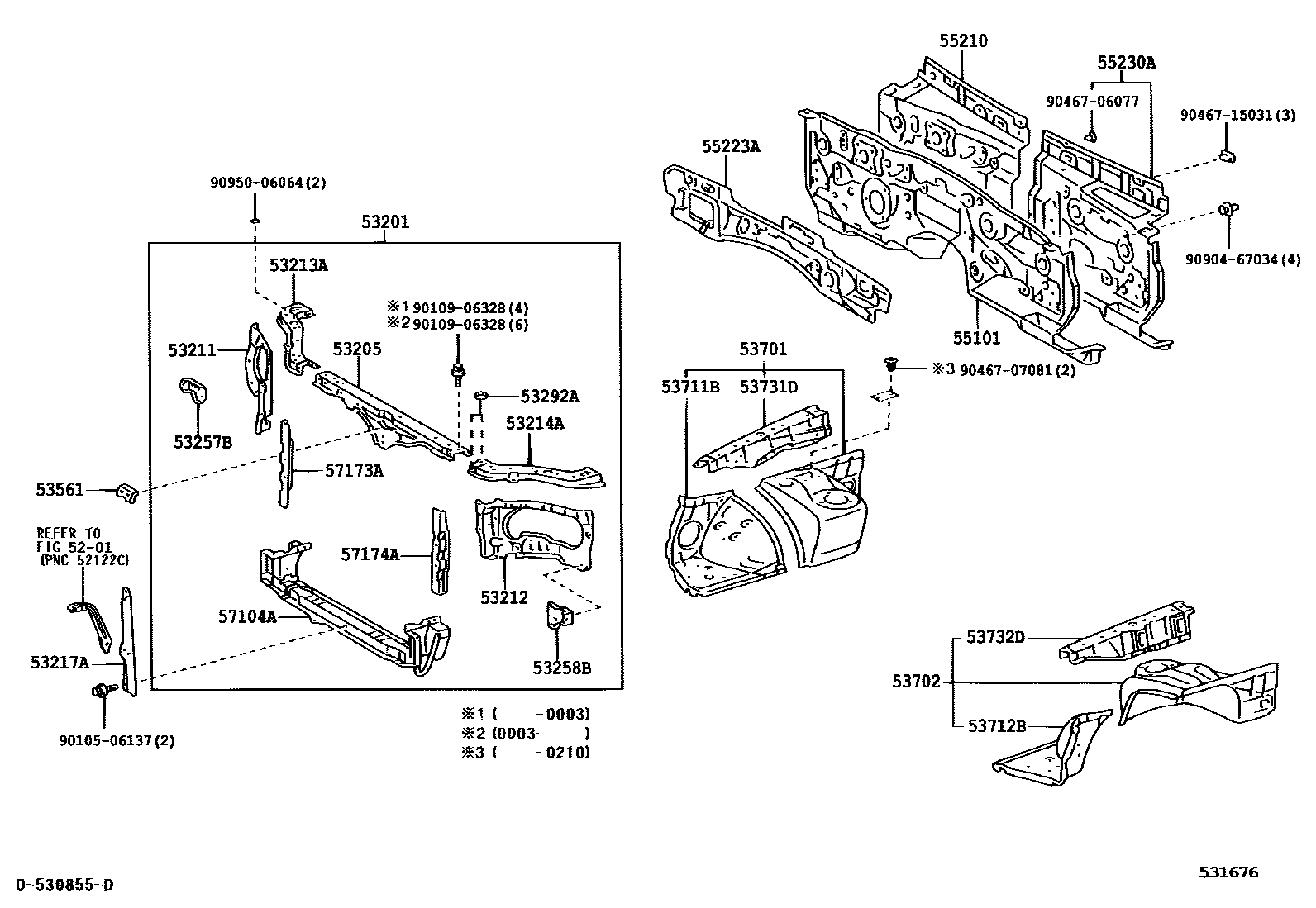

Toyota CROWN — FRONT FENDER APRON & DASH PANEL
5201
53201SUPPORT SUB-ASSY, RADIATOR
53211SUPPORT, RADIATOR, RH
sub53211-30291
53213ASUPPORT, RADIATOR, UPPER RH
sub53213-30051
53217ABRACE, HOOD LOCK SUPPORT
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
53292ASEAL, RADIATOR SUPPORT, UPPER
53561GUIDE, HOOD AUXILIARY CATCH HOOK
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
55223AINSULATOR, DASH PANEL, OUTER
55230AINSULATOR ASSY, DASH PANEL, NO.4
57104AMEMBER SUB-ASSY, FRONT CROSS
57173AREINFORCEMENT, FRONT CROSSMEMBER, NO.3 RH
57174AREINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH
9010506137
main90105-06137
9010906328
main90109-06328
9046706077
main90467-06077
9046707081
main90467-07081
9046715031
main90467-15031
9090467034
main90904-67034
9095006064
main90950-06064
32 parts on this diagram · 1 diagram in section
