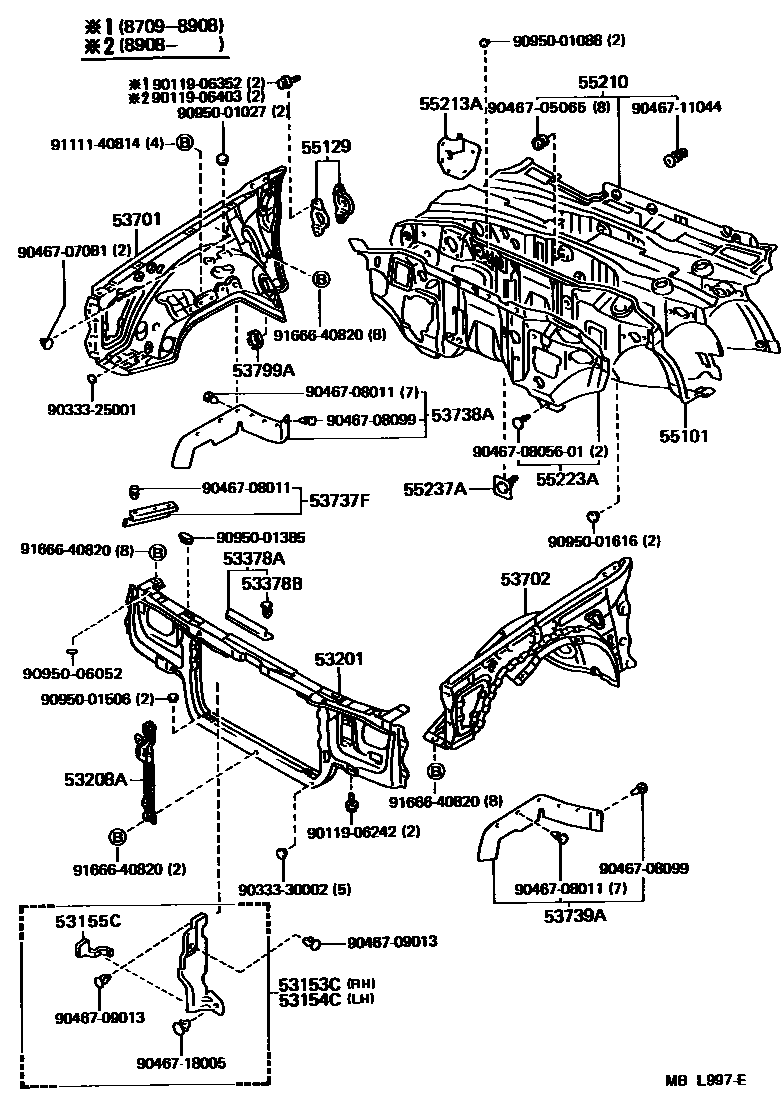

Toyota CROWN — FRONT FENDER APRON & DASH PANEL

53153CGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-30010iMS133,135..GCC198709-198908

main53153-30020iMS133,135..HT198908-199110

53154CGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-30010iMS133,135..GCC198709-198908

main53154-30020iMS133,135..HT198908-199110

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-30010×2iMS133,135..GCC198805-198908

53201SUPPORT SUB-ASSY, RADIATOR

main53201-30910iLS130,MS132,YS132..4F,4H,4HC198709-199110

W(STEEL BUMPER)

main53201-30911iMS132..WG;GS131,MS133,135;MS132..SED..SAL..GCC;MS132..(4FC,5F)..(DLX,ROY,STD)198709-198908

W(LARGE URETHANE BUMPER)

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53209-30080iGS131,LS130,MS13#,YS132..SED,WG198709-199110

main53209-30090iMS133,135..HT198709-199110

53378ASEAL, HOOD AIR INTAKE DUCT

main53378-30030iGS131,LS130,MS133,135198709-199110

53378BCLIP(FOR HOOD AIR INTAKE DUCT SEAL)

main90467-08008×3iLS130,MS133,135198709-198712

main90467-08072×3iGS131,LS130,MS133,135198712-199110

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-30800iMS132..RHD198709-198908

main53701-30810iGS131,LS130,MS133,135..LHD..SED198709-199110

main53701-30840iMS132,YS132..LHD198709-199110

main53701-3A030iGS131,LS130,MS133,135..RHD198709-199110

main53701-3A050iMS133,135..HT198709-199110

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-30520iGS131,MS13#,YS132..LHD..(SED,WG)198709-199110

main53702-30550iLS130..LHD198709-199110

main53702-30620iGS131,LS130,MS13#..RHD198709-199110

main53702-30660iMS133,135..HT198709-199110

53737FSEAL, FRONT FENDER TO FRAME, NO.2

main53737-30040×2iLS130,MS132,YS132..4F,4H;MS132,133..SED..(DLX,SAL)..GEN198709-199110

53738ASEAL, FRONT FENDER APRON, REAR RH

main53738-30060iGS131,LS130,MS13#,YS132198709-199005

main53738-30070iLS130199005-199110

53739ASEAL, FRONT FENDER APRON, REAR LH

main53739-30040iGS131,LS130,MS13#,YS132198709-199005

main53739-30050iLS130199005-199110

53799ACOVER, STEERING GEAR BOX SERVICE HOLE

main53799-30021iGS131,LS130,MS13#,YS132198709-199110

55101PANEL SUB-ASSY, DASH

main55101-30550iLS130..4H198709-198809

sub83710-30751

main55101-30551iLS130..4H198809-199110

main55101-30630iLS130..RHD..4F198709-198809

sub55101-30631

sub83710-30751

main55101-30750iMS132,135..RHD..ATM198709-198809

sub83710-30771

sub83710-30811

sub90950-01345

main55101-30751iMS135..RHD198709-198809

W(CRUISE CONTROL)

main55101-30790iMS132..RHD..5F198709-198809

sub83710-30751

main55101-30791iGS131,MS132,133..RHD..5F198809-199110

main55101-30840iMS13#..LHD..4FC198709-199110

main55101-30850iGS131,LS130,MS132,133..LHD..MTM198709-199110

main55101-3A050iYS132198709-199110

55129COVER, DASH PANEL HOLE

main55129-30010iLS130,MS132,YS132198709-199110

55210INSULATOR ASSY, DASH PANEL

main55211-30450iMS132..RHD..ATM..(DLX,SAL)198709-198908

W(BOOST VENT AIR CONDITIONER)

main55211-30460iGS131,LS130..RHD;MS132..RHD..(DLX,SAL,STD)198709-199110

main55211-30470iMS13#..LHD..4FC198709-198908

main55211-30480iLS130,MS132,133,YS132..LHD..MTM198709-198908

55213APAD, DASH PANEL SILENCER

main55213-30260iLS130,MS132,135..4H,4HC198709-199110

main55213-30270iGS131,LS130,MS13#..RHD..(4F,4FC,5F)198709-199110

main55213-30280iYS132..4H198709-199110

main55213-30290iGS131,LS130,MS13#,YS132..LHD..(4F,4FC,5F)198709-199110

55223AINSULATOR, DASH PANEL, OUTER

main55223-30070iMS133..SAL..GEN;GS131,LS130,MS135..RHD198709-199110

main55223-30080iYS132..4F198904-198906

011PHILIPPINE SPEC

55237APLATE, DASH PANEL INSULATOR, NO.1

main55237-30010iMS133..SAL..GEN;GS131,LS130,MS135..RHD198709-199110

9011906242

main90119-06242

9011906352

main90119-06352

9011906403

main90119-06403

9033325001

main90333-25001

9033330002

main90333-30002

9046705065

main90467-05065

9046707081

main90467-07081

9046708011

main90467-08011

904670805601

main90467-0805601

9046708099

main90467-08099

9046709013

main90467-09013

9046711044

main90467-11044

9046718005

main90467-18005

9095001027

main90950-01027

9095001088

main90950-01088

9095001385

main90950-01385

9095001506

main90950-01506

9095001616

main90950-01616

9095006052

main90950-06052

9111140814

main91111-40814

9166640820

main91666-40820

40 parts on this diagram · 1 diagram in section
