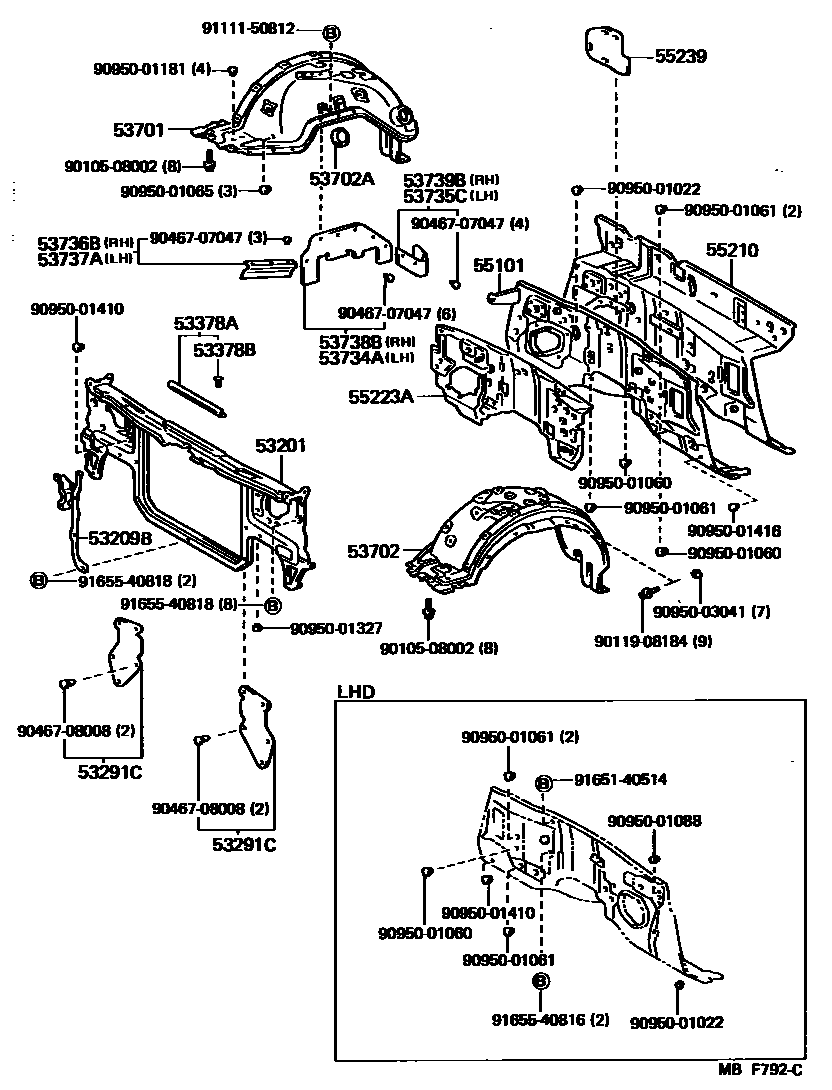

Toyota CROWN — FRONT FENDER APRON & DASH PANEL

53201SUPPORT SUB-ASSY, RADIATOR

main53201-30900iLS120,MS12#,YS120198308-198408

W/*UB

main53201-30902iYS120..STD;LS120,MS122..SED..(SAL,STD)..GEN198308-198408

main53201-30903iLS120,MS12#,YS120198408-198509

W/*UB

main53201-30904iYS120..STD;LS120,MS122..SED..(SAL,STD)..GEN198408-198509

main53201-30908iLS120,MS12#,YS120198509-198708

W/*UB

main53201-30909iLS120,MS122,YS120..SED..(DLX,SAL,STD)..GEN198509-198708

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-30060iLS120,MS12#,YS120198308-198408

main53209-30070iLS120,MS12#,YS120198408-198509

main53209-30071iLS120,MS12#,YS120198509-198708

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-30030iLS120,MS12#,YS120198308-198708

RH

main53292-30030iLS120,MS12#,YS120198308-198310

LH

main53292-30040iMS123..SWZ198310-198509

LH

53378ASEAL, HOOD AIR INTAKE DUCT

main53378-30020iLS120,MS123,125198308-198708

53378BCLIP(FOR HOOD AIR INTAKE DUCT SEAL)

main90467-08008×3iLS120,MS123,125198308-198708

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-30530iYS120..RHD198308-198708

main53701-30550iLS120,MS122,YS120..LHD198308-198708

main53701-30560iMS123,125..LHD..(EUG,GEN,SAA)198308-198509

W/ESC OR *CRC

main53701-30570iMS123,125..SED..LHD198308-198708

main53701-30580iLS120..RHD198308-198708

main53701-30590iMS123,125..RHD198308-198708

W/*CRC

main53701-30640iMS12#..RHD198308-198708

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-30380iLS120..LHD198308-198708

main53702-30390iMS122,125..HT198509-198708

main53702-30430iMS122,YS120..RHD198308-198708

main53702-30440iLS120..RHD198308-198708

main53702-30450iMS123,125..RHD198308-198708

main53702-30460iMS122,YS120..LHD..GEN198308-198509

main53702-30470iMS122..SAA198401-198509

53702ACOVER, FRONT FENDER APRON(FOR SERVICE HOLE)

main53799-30021iLS120,MS12#,YS120198308-198708

53734ASEAL, FRONT FENDER APRON TO FRAME, NO.2 LH

main53734-30030iLS120,MS12#,YS120198308-198708

53735CSEAL, FRONT FENDER APRON TO FRAME, NO.3 LH

main53735-30030iLS120,MS12#,YS120198308-198708

53736BSEAL, FRONT FENDER APRON TO FRAME, NO.1 RH

main53736-30030iLS120,MS12#,YS120198308-198708

53737ASEAL, FRONT FENDER APRON TO FRAME, NO.1 LH

main53736-30030iLS120,MS12#,YS120198308-198708

53738BSEAL, FRONT FENDER APRON TO FRAME, NO.2 RH

main53738-30050iLS120,MS12#,YS120198308-198708

53739BSEAL, FRONT FENDER APRON TO FRAME, NO.3 RH

main53739-30030iLS120,MS12#,YS120198308-198708

55101PANEL SUB-ASSY, DASH

main55101-30560iMS123,125..RHD198308-198708

W/*CRC

main55101-30580iMS12#..LHD..4FC198308-198708

main55101-30590iMS122,123..LHD..MTM198308-198708

main55101-30610iLS120..LHD198308-198708

main55101-30620iYS120..LHD198308-198708

main55101-30670iLS120..RHD198308-198708

main55101-30710iMS12#..RHD..ATM198308-198708

main55101-30720iMS122,YS120..RHD..MTM198308-198708

55210INSULATOR ASSY, DASH PANEL

main55211-30390iMS12#,YS120..RHD198308-198509

main55211-30400iLS120..RHD198308-198509

main55211-30410iMS12#..LHD..4FC198308-198708

main55211-30420iMS122,123,YS120..LHD..MTM198308-198509

W/HEATER

main55211-30430iMS12#..RHD..ROY198509-198708

W/COOLER

main55211-30440iLS120..LHD198308-198509

W/BOOST VENT

55223AINSULATOR, DASH PANEL, OUTER

main55223-30050iLS120..RHD198308-198509

main55223-30051iLS120,MS125..RHD198509-198708

main55223-30060iLS120..LHD198308-198509

main55223-30061iLS120,MS125..LHD198509-198708

55239SILENCER, STEERING COLUMN HOLE COVER

main55213-30190iLS120,MS12#..RHD..(4H,4HC)198308-198708

main55213-30200iLS120,MS12#,YS120..RHD..(4F,4FC,5F)198308-198509

main55213-30210iLS120,MS122,YS120..LHD..4H198308-198708

main55213-30220iLS120,MS12#,YS120..LHD..(4F,4FC,5F)198308-198708

main55213-30250iLS120,MS12#,YS120..RHD..(4F,4FC,5F)198509-198708

sub55213-30241

9010508002

main90105-08002

9011908184

main90119-08184

9046707047

main90467-07047

9046708008

main90467-08008

9095001022

main90950-01022

9095001060

main90950-01060

9095001061

main90950-01061

9095001065

main90950-01065

9095001088

main90950-01088

9095001181

main90950-01181

9095001327

main90950-01327

9095001410

main90950-01410

9095001416

main90950-01416

9095003041

main90950-03041

9111150812

main91111-50812

9165140514

main91651-40514

9165540816

main91655-40816

9165540818

main91655-40818

36 parts on this diagram · 1 diagram in section
