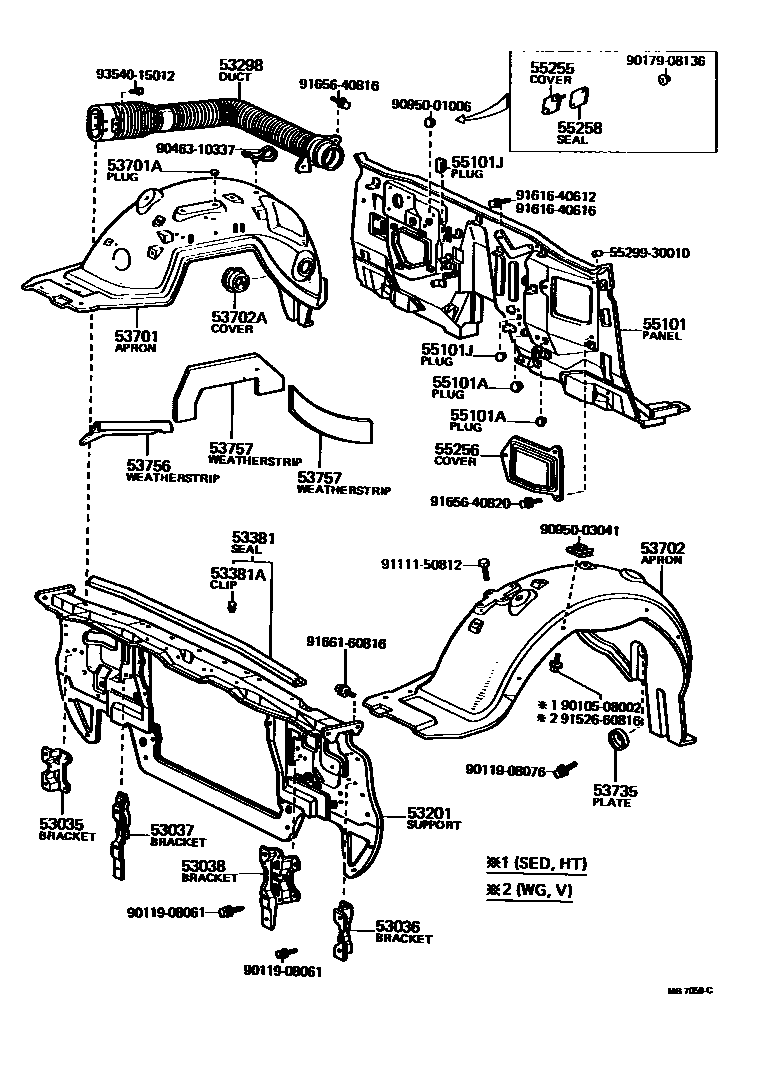

Toyota CROWN — FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1

53035BRACKET SUB-ASSY, HEADLAMP, OUTER RH

main53245-30030iMS8#,95,RS80197410-197611

main53245-30031iMS8#,95,RS80197611-197802

main53245-30032iMS8#,95,RS80197802-197908

53036BRACKET SUB-ASSY, HEADLAMP, OUTER LH

main53245-30030iMS8#,95,RS80197410-197611

main53245-30031iMS8#,95,RS80197611-197802

main53245-30032iMS8#,95,RS80197802-197908

53037BRACKET SUB-ASSY, HEADLAMP, INNER RH

main53247-30040iMS8#,95,RS80197410-197611

main53247-30041iMS8#,95,RS80197611-197802

main53247-30042iMS8#,95,RS80197802-197908

53038BRACKET SUB-ASSY, HEADLAMP, INNER LH

main53247-30041iMS8#,95,RS80197611-197802

main53248-30010iMS8#,95,RS80197410-197611

main53248-30020iMS8#,95,RS80197802-197908

53201SUPPORT SUB-ASSY, RADIATOR

main53201-30110iMS8#,95,RS80197410-197611

main53201-30111iMS8#,95,RS80197611-197802

main53201-30150iMS8#,95,RS80197802-197908

53298DUCT, COOL AIR INTAKE

main53207-30030iMS83,85..ARL197604-197806

main53207-30031iMS85..ARL197806-197908

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-30030iMS8#,95,RS80197410-197802

main53381-30031iMS8#,95,RS80197802-197908

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-07050×8iMS8#,95,RS80197410-197610

main90467-08008×8iMS8#,95,RS80197610-197908

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-30901iMS8#,95..RHD197410-197802

sub90950-01027

sub90950-01056

main53701-30902iRS80..RHD197410-197511

main53701-30903iMS8#,95..LHD197410-197802

sub90950-01027

sub90950-01056

main53701-30904iRS80..LHD197410-197511

main53701-30907iRS80..RHD197511-197802

sub90950-01027

sub90950-01056

main53701-30908iRS80..LHD197511-197802

sub90950-01027

sub90950-01056

main53701-30913iMS8#,95,RS80..LHD197802-197908

main53701-30917iMS8#,95..RHD197802-197908

main53701-30918iRS80..RHD197802-197908

53701APLUG, HOLE(FOR FRONT FENDER APRON)

main90950-01006iMS8#,95,RS80197802-197805

OD=9.5

main90950-01025iMS8#,95,RS80197504-197908

OD=15

main90950-01181×5iMS8#,95197410-197802

OD=9

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-30901iMS8#,95..RHD197410-197511

main53702-30902iRS80..RHD197410-197511

main53702-30903iMS8#,95..LHD197410-197511

main53702-30904iRS80..LHD197410-197802

sub90950-01027

sub90950-01056

main53702-30906iMS8#,95..RHD..(BTP,DLX,SAL,STD)197511-197802

sub90950-01027

sub90950-01056

main53702-30907iRS80..RHD197511-197802

sub90950-01027

sub90950-01056

main53702-30908iMS85..RHD..ROY197511-197802

sub90950-01027

sub90950-01056

main53702-30909iMS8#,95..LHD197511-197802

sub90950-01027

sub90950-01056

main53702-30911iMS8#,95..RHD..(BTP,DLX,SAL,STD)197802-197908

main53702-30912iMS85..RHD..ROY197802-197908

main53702-30913iMS8#,95..LHD197802-197908

main53702-30914iRS80..LHD197802-197908

main53702-30915iRS80..RHD197802-197908

53702ACOVER, FRONT FENDER APRON(FOR SERVICE HOLE)

main53799-30010iMS8#,95,RS80197410-197908

53735PLATE, FRONT FENDER APRON MOUNTING

main53731-30020×6iMS8#,95,RS80197410-197802

sub90119-08184

53756WEATHERSTRIP, FRONT FENDER APRON TO FRAME, NO.1

main53736-30020iMS8#,95,RS80197410-197908

RH.

main53737-30030iMS8#,95,RS80197410-197908

LH.

53757WEATHERSTRIP, FRONT FENDER APRON TO FRAME, NO.2

main53738-30030×2iMS8#,95,RS80197410-197908

FRONT

main53739-30010×2iMS8#,95,RS80197410-197908

REAR

55101PANEL SUB-ASSY, DASH

main55101-30190iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197410-197802

sub90461-06120

sub90461-08315

sub90480-53001

sub91656-40816

main55101-30200iMS85..ROY197511-197802

sub90461-06120

sub90461-08315

sub90480-53001

sub91656-40816

main55101-30201iMS85..RHD..ROY197802-197908

main55101-30220iMS8#,95,RS80..LHD..(BTP,DLX,SAL,STD)197410-197802

sub90480-53001

main55101-30221iMS8#,95,RS80..LHD..(BTP,DLX,SAL,STD)197802-197908

main55101-30230iMS8#,95,RS80..LHD197410-197802

FOR W/COOLER

sub90480-53001

main55101-30231iMS8#,95..LHD197802-197908

FOR W/COOLER

main55101-30251iMS85,95..RHD..ATM..(BTP,DLX,SAL)197802-197809

main55101-30301iMS8#,95,RS80..RHD..MTM197802-197908

main55101-30320iMS85,95..RHD..ATM..(BTP,DLX,SAL)197809-197908

55101APLUG, HOLE, NO.1(FOR DASH PANEL)

main90950-01060iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197410-197908

OD=26

sub90950-01866

main90950-01061×2iMS8#,95,RS80..RHD..(BTP,DLX,SAL,STD)197410-197908

OD=36

sub90950-01872

55101JPLUG, HOLE, NO.3(FOR DASH PANEL)

main90950-01022iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

OD=30

sub90950-01882

main90950-01023iMS8#,95,RS80..BTP,DLX,SAL,STD197410-197908

OD=30X53

55255COVER, CLUTCH MASTER CYLINDER HOLE

main55255-30040iMS83,85,95..ATM197410-197606

55256COVER, HEATOR BLOWER OPENING

main55257-30060iMS85,88,RS80..RHD..(BTP,STD)197410-197908

main55257-30070iMS85,88,RS80..LHD..(BTP,STD)197410-197908

55258SEAL, CLUTCH MASTER CYLINDER HOLE

main55258-30020iMS83,85,95..ATM197410-197606

5529930010CAP, TEE NUT(FOR 6MM)

main55299-30010

9010508002

main90105-08002

9011908061

main90119-08061

9011908076

main90119-08076

9017908136

main90179-08136

9046310337

main90463-10337

9095001006

main90950-01006

9095003041

main90950-03041

9111150812

main91111-50812

9152660816

main91526-60816

9161640612

main91616-40612

9161640616

main91616-40616

9165640816

main91656-40816

9165640820

main91656-40820

9166160816

main91661-60816

9354015012

main93540-15012

37 parts on this diagram · 3 diagrams in section
