Toyota CROWN — FRONT DOOR WINDOW REGULATOR & HINGE

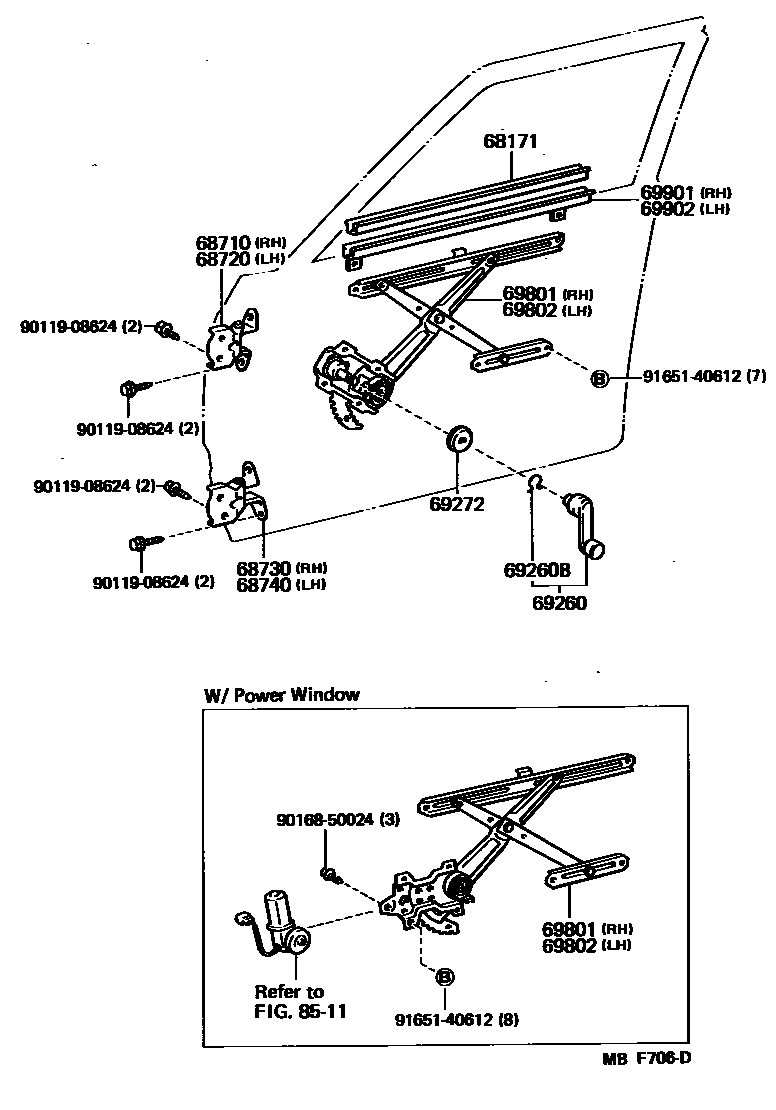

Parts diagram
68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
main68171-20030×2i198308-198708
68710HINGE ASSY, FRONT DOOR, UPPER RH
main68710-32010i198308-198708
68720HINGE ASSY, FRONT DOOR, UPPER LH
main68720-32010i198308-198708
68730HINGE ASSY, FRONT DOOR, LOWER RH
main68730-32010i198308-198708
68740HINGE ASSY, FRONT DOOR, LOWER LH
main68740-32010i198308-198708
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
main69260-14020-04×2i198509-198604
BLUE,BLUE,TRIM8#
main69260-14020-20×2i198604-198708
BLUE,BLUE,TRIM8#
main69260-14020-35×2i198308-198509
BEIGE,BEIGE,TRIM4#
main69260-14020-36×2i198509-198708
BROWN,BROWN,TRIM4#
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
main90520-01002×2i198308-198509
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
main69285-22010×2i198308-198509
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
main69801-30150i198308-198509
main69801-30160i198509-198708
main69810-30280i198509-198703
main69810-30281i198703-198708
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
main69802-30150i198509-198708
W/*PW
main69802-30160i198509-198708
main69820-30200i198509-198703
main69820-30201i198703-198708
69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
main69901-30100i198308-198708
69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
main69902-30070i198308-198708
8511DOOR MOTOR & DOOR SOLENOID
→ Go to FIG 85-11
9011908624
main90119-08624
9016850024
main90168-50024
9165140612
main91651-40612

16 parts on this diagram · 2 diagrams in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota CROWN

This section contains 34 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota CROWN. Key components include: STABILIZER, FRONT DOOR GLASS, STOPPER ASSY, DOOR GLASS(FOR FRONT DOOR), SUPPORT, FRONT DOOR TRIM, WEATHERSTRIP, FRONT DOOR GLASS CHANNEL, HINGE ASSY, FRONT DOOR, UPPER RH.
