Toyota CROWN — FRONT DOOR PANEL & GLASS

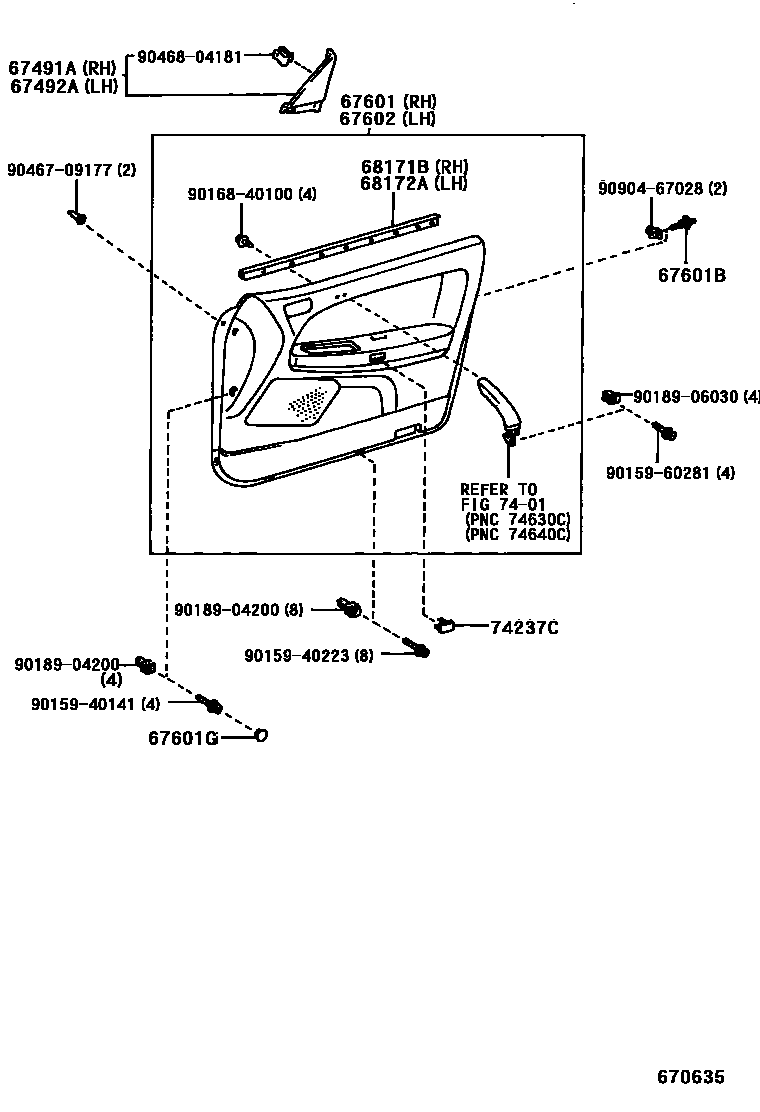

Parts diagram
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
main67491-30130i199707
main67491-30140i199512
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
main67492-30130i199707
main67492-30140i199512
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-3F380-B1i199707-199808
DK.BLUE GRAY,TRIM1#
main67610-3F380-E1i199707-199808
ANTELOPE,TRIM4#
main67610-3F390-B0i199512-199707
DK.BLUE GRAY,TRIM1#
main67610-3F390-E0i199512-199707
ANTELOPE,TRIM4#
main67610-3F450-B1i199512-199707
DK.BLUE GRAY,TRIM1#
main67610-3F450-E1i199512-199707
ANTELOPE,TRIM4#
main67610-3F460-B1i199512-199707
DK.BLUE GRAY,TRIM1#
main67610-3F460-E1i199512-199707
ANTELOPE,TRIM4#
main67610-3F470-E0i199512-199707
W(LEATHER SEAT)-*104,ANTELOPE,TRIM4#
main67610-3F550-B0i199707-199909
DK.BLUE GRAY,TRIM1#
main67610-3F550-E0i199707-199909
ANTELOPE,TRIM4#
main67610-3F600-B0i199707-199909
DK.BLUE GRAY,TRIM1#
main67610-3F600-E0i199707-199909
ANTELOPE,TRIM4#
main67610-3F601-B0i199909-200108
DK.BLUE GRAY,TRIM1#
main67610-3F601-E0i199909-200108
ANTELOPE,TRIM4#
main67610-3F610-B0i199707-199909
DK.BLUE GRAY,TRIM1#
main67610-3F610-E0i199707-199909
ANTELOPE,TRIM4#
main67610-3F611-B0i199909-200108
DK.BLUE GRAY,TRIM1#
main67610-3F611-E0i199909-200108
ANTELOPE,TRIM4#
main67610-3F620-E0i199707-199909
W(LEATHER SEAT)-*104,ANTELOPE,TRIM4#
main67610-3F621-E0i199909-200108
W(LEATHER SEAT)-*104,ANTELOPE,TRIM4#
main67650-3A770-B0i199707-199909
DK.BLUE GRAY,TRIM1#
main67650-3A770-E0i199707-199909
ANTELOPE,TRIM4#
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
main90467-07066-B2×4i199707-199909
DK.BLUE GRAY,TRIM1#
main90467-07066-E5×6i199512-200108
ANTELOPE,TRIM4#
67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
main90950-01800-B1×4i199512-200108
DK.BLUE GRAY,TRIM1#
main90950-01800-E3×4i199512-200108
ANTELOPE,TRIM4#
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67050-30040-B0i199707-199909
DK.BLUE GRAY,TRIM1#
main67050-30040-E0i199707-199909
ANTELOPE,TRIM4#
main67050-30110-B0i199707-199909
DK.BLUE GRAY,TRIM1#
main67050-30110-E0i199707-199909
ANTELOPE,TRIM4#
main67050-30190-B0i199707-199909
DK.BLUE GRAY,TRIM1#
main67050-30190-E0i199707-199909
ANTELOPE,TRIM4#
main67050-30191-B0i199909-200108
DK.BLUE GRAY,TRIM1#
main67050-30191-E0i199909-200108
ANTELOPE,TRIM4#
main67050-30200-B0i199707-199909
DK.BLUE GRAY,TRIM1#
main67050-30200-E0i199707-199909
ANTELOPE,TRIM4#
main67050-30201-B0i199909-200108
DK.BLUE GRAY,TRIM1#
main67050-30201-E0i199909-200108
ANTELOPE,TRIM4#
main67050-30210-E0i199707-199909
W(LEATHER SEAT)-*104,ANTELOPE,TRIM4#
main67050-30211-E0i199909-200108
W(LEATHER SEAT)-*104,ANTELOPE,TRIM4#
main67620-3F890-B1i199707-199808
DK.BLUE GRAY,TRIM1#
main67620-3F890-E1i199707-199808
ANTELOPE,TRIM4#
main67620-3K030-B0i199512-199707
DK.BLUE GRAY,TRIM1#
main67620-3K030-E0i199512-199707
ANTELOPE,TRIM4#
main67620-3K090-B1i199512-199707
DK.BLUE GRAY,TRIM1#
main67620-3K090-E1i199512-199707
ANTELOPE,TRIM4#
main67620-3K100-B1i199512-199707
DK.BLUE GRAY,TRIM1#
main67620-3K100-E1i199512-199707
ANTELOPE,TRIM4#
main67620-3K110-E0i199512-199707
W(LEATHER SEAT)-*104,ANTELOPE,TRIM4#
68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH
main68171-30080i199707
main68171-30100i199707
main68172-30071i199512-199707
68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH
main68172-30060i199707
main68172-30071i199512-199707
main68172-30080i199707
7401ARMREST & VISOR
→ Go to FIG 74-01
74237CCAP, FRONT DOOR ARMREST BASE
main74237-30030-B0i199707-199909
DK.BLUE GRAY,TRIM1#
main74237-30030-E1i199707-199909
ANTELOPE,TRIM4#
main74237-30040-B0i199512-200108
DK.BLUE GRAY,TRIM1#
main74237-30040-E0i199512-200108
ANTELOPE,TRIM4#
9015940141
main90159-40141
9015940223
main90159-40223
9015960281
main90159-60281
9016840100
main90168-40100
9018904200
main90189-04200
9018906030
main90189-06030
9046709177
main90467-09177
9046804181
main90468-04181
9090467028
main90904-67028

19 parts on this diagram · 6 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota CROWN

This section contains 70 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota CROWN. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, PANEL SUB-ASSY, FRONT DOOR, LH, PANEL, FRONT DOOR, OUTER RH, PANEL, FRONT DOOR, OUTER LH, FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH.
