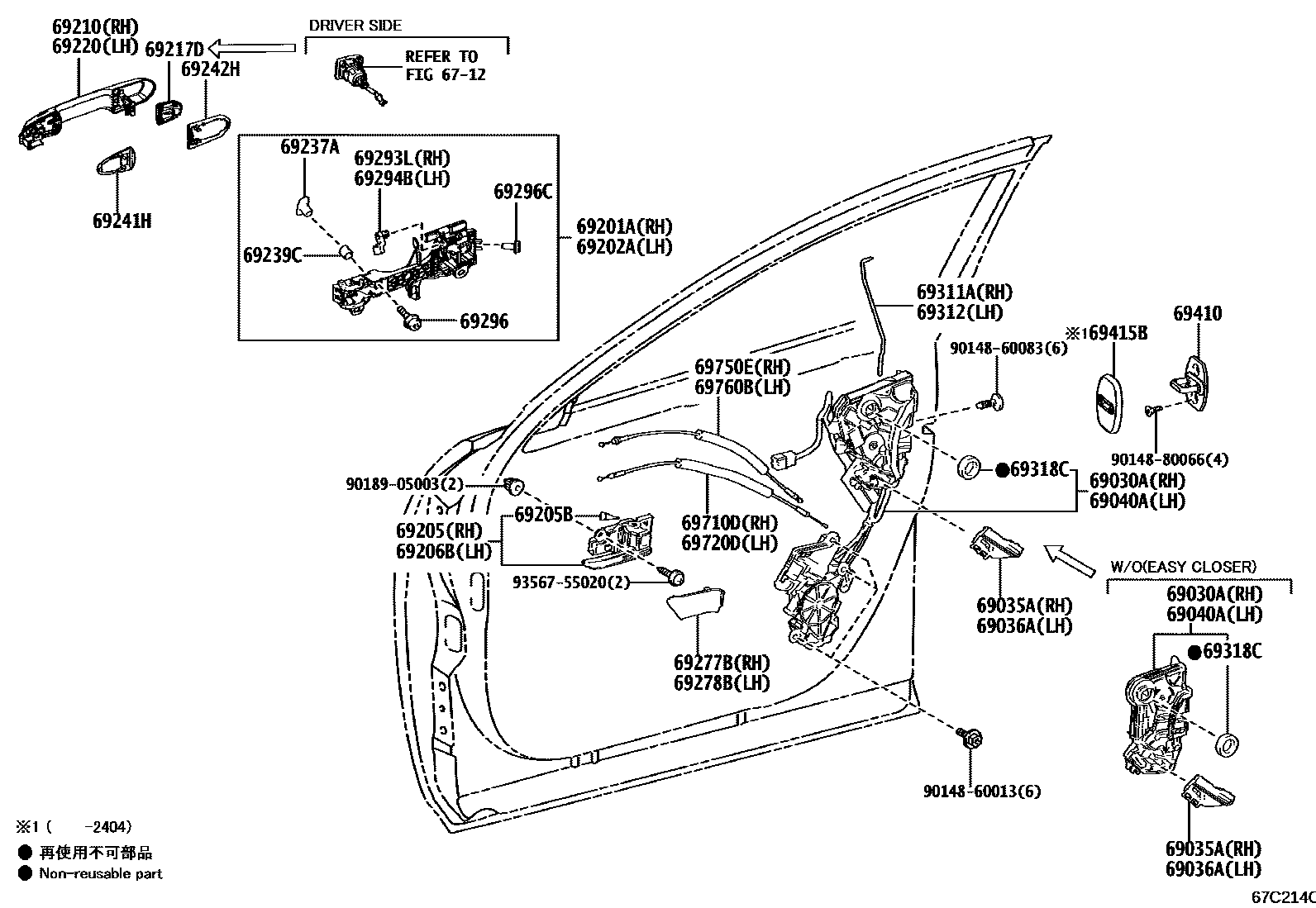

Toyota CROWN — FRONT DOOR LOCK & HANDLE

6712

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-30A70iAZSH35,TZSH35..RHD202301

main69030-53130supersedes 69030-30B50iAZSH30..M202301-202404

main69030-30B40iTZSH35..RHD202301

AUTO & EASY CLOSER DOOR-WITH(EASY CLOSER & HANDS FREE *PBD)

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-30010iAZSH30..M202301-202404

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-30010iAZSH30..M202301-202404

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-30A80iAZSH35,TZSH35..RHD202301

main69040-53140supersedes 69040-30B60iTZSH35..GCC202301

CENTRAL ASIA SPEC

main69040-30B50iTZSH35..RHD202301

AUTO & EASY CLOSER DOOR-WITH(EASY CLOSER & HANDS FREE *PBD)

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-30100iAZSH30..RHD202301-202503

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-30090iAZSH30..M202301-202404

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-30230-A0iAZSH30..RHD202404-202503

FROMAGE,TRIM0#

main69205-30230-C0iAZSH35,TZSH35;AZSH30..LHD..(B,G)202404

BLACK,TRIM2#

main69205-33140-A0iAZSH3#,TZSH35..GCC,GEN202305-202404

FROMAGE,TRIM0#

main69205-33140-C0iAZSH3#,TZSH35202305-202404

BLACK,TRIM2#

main69207-30050-A0iAZSH3#,TZSH35..GCC,GEN202301-202305

FROMAGE,TRIM0#

main69207-30050-C0iAZSH3#,TZSH35202301-202305

BLACK,TRIM2#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014×2iAZSH30..M202301-202404

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-30230-A0iAZSH30..LHD..B;AZSH35,TZSH35..GCC,GEN202404

FROMAGE,TRIM0#

main69206-30230-C0iAZSH35,TZSH35;AZSH30..LHD..(B,G)202404

BLACK,TRIM2#

main69206-33150-A0iAZSH3#,TZSH35..GCC,GEN202305-202404

FROMAGE,TRIM0#

main69206-33150-C0iAZSH3#,TZSH35202305-202404

BLACK,TRIM2#

main69208-30030-A0iAZSH3#,TZSH35..GCC,GEN202301-202305

FROMAGE,TRIM0#

main69208-30030-C0iAZSH3#,TZSH35202301-202305

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-42121-20iAZSH30..M202301-202404

BLACK,202

main69210-42121-A3iAZSH35,TZSH35..LHD;AZSH30..LHD..(B,G)202301

PRECIOUS WHITE PEARL,090 ,2XW

main69210-42121-B6iAZSH35,TZSH35..LHD;AZSH30..LHD..(B,G)202301

PRECIOUS METAL,1L5 ,2ZA

main69210-42121-B7iAZSH35,TZSH35..LHD;AZSH30..LHD..(B,G)202301

MASSIVE GRAY,1L6 ,2XY

main69210-42121-D0iAZSH30..M202301-202404

EMOTIONAL RED 2,3U5

main69210-42121-E1iAZSH35,TZSH35..LHD;AZSH30..LHD..(B,G)202301

PRECIOUS BRONZE,2XZ ,4Y6

main69210-42121-P0iAZSH35,TZSH35..LHD;AZSH30..LHD..(B,G)202301-202504

PRECIOUS SILVER,1J6 ,2ZB

main69210-42171-20iAZSH30..RHD202301-202503

BLACK,202

main69210-42171-A3iAZSH30..RHD202301-202503

PRECIOUS WHITE PEARL,090 ,2XW

main69210-42171-B6iAZSH30..RHD202301-202503

PRECIOUS METAL,1L5 ,2ZA

main69210-42171-B7iAZSH35,TZSH35..RHD202301

MASSIVE GRAY,1L6 ,2XY

main69210-42171-D0iAZSH35,TZSH35..RHD202301-202504

EMOTIONAL RED 2,2YZ ,3U5

main69210-42171-E1iAZSH30..RHD202301-202503

PRECIOUS BRONZE,2XZ ,4Y6

main69210-42171-P0iAZSH35,TZSH35..RHD202301-202504

PRECIOUS SILVER,1J6 ,2ZB

main69210-30410-C0iAZSH35..RHD202301-202504

BODY COLOR-TWO-TONES,BLACK,2TB ,2WC ,2XW ,2XX ,2XY ,2XZ ,2YZ ,2ZA ,2ZB

main69210-30420-C0iAZSH30..M202301-202404

BODY COLOR-TWO-TONES,BLACK,2TB ,2WC ,2XW ,2XX ,2XY ,2XZ ,2YZ ,2ZA ,2ZB

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-30140iAZSH30..M202301-202404

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-42121-20iAZSH30..RHD202301-202503

BLACK,202

main69210-42121-A3iAZSH35,TZSH35..RHD202301

PRECIOUS WHITE PEARL,090 ,2XW

main69210-42121-B6iAZSH35,TZSH35..RHD202301

PRECIOUS METAL,1L5 ,2ZA

main69210-42121-B7iAZSH30..RHD202301-202503

MASSIVE GRAY,1L6 ,2XY

main69210-42121-D0iAZSH35,TZSH35..RHD202301-202504

EMOTIONAL RED 2,2YZ ,3U5

main69210-42121-E1iAZSH30..RHD202301-202503

PRECIOUS BRONZE,2XZ ,4Y6

main69210-42121-P0iAZSH30..RHD202301-202503

PRECIOUS SILVER,1J6 ,2ZB

main69210-42171-20iAZSH35,TZSH35..LHD;AZSH30..LHD..(B,G)202301

BLACK,202

main69210-42171-A3iAZSH35,TZSH35..LHD;AZSH30..LHD..(B,G)202301

PRECIOUS WHITE PEARL,090 ,2XW

main69210-42171-B6iAZSH35,TZSH35..LHD;AZSH30..LHD..(B,G)202301

PRECIOUS METAL,1L5 ,2ZA

main69210-42171-B7iAZSH35,TZSH35..LHD;AZSH30..LHD..(B,G)202301

MASSIVE GRAY,1L6 ,2XY

main69210-42171-D0iAZSH30..M202301-202404

EMOTIONAL RED 2,3U5

main69210-42171-E1iAZSH30..M202301-202404

PRECIOUS BRONZE,4Y6

main69210-42171-P0iAZSH35,TZSH35..LHD;AZSH30..LHD..(B,G)202301-202504

PRECIOUS SILVER,1J6 ,2ZB

main69210-30410-C0iAZSH3#..LHD..GEN;TZSH35..LHD..(GCC,GEN)202301-202504

BODY COLOR-TWO-TONES,BLACK,2TB ,2WC ,2XW ,2XX ,2XY ,2XZ ,2YZ ,2ZA ,2ZB

main69210-30420-C0iAZSH35..RHD202301-202504

BODY COLOR-TWO-TONES,BLACK,2TB ,2WC ,2XW ,2XX ,2XY ,2XZ ,2YZ ,2ZA ,2ZB

69237ANUT, FRONT DOOR HANDLE

main69237-62010×2iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

sub69237-0E010

69239CBUSH, FRONT DOOR HANDLE

main69239-47010×2iAZSH30..M202301-202404

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-30130×2iAZSH30..M202301-202404

69242HPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-30110×2iAZSH30..M202301-202404

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-30240-A0iAZSH30..LHD..B;AZSH35,TZSH35..GCC,GEN202301

FROMAGE,TRIM0#

main69277-30240-C2iAZSH30..RHD202301-202503

BLACK,TRIM2#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-30240-A0iAZSH30..LHD..B;AZSH35,TZSH35..GCC,GEN202301

FROMAGE,TRIM0#

main69278-30240-C2iAZSH30..M202301-202404

BLACK,TRIM2#

69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-33030iAZSH30..M202301-202404

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-33040iAZSH30..M202301-202404

69296SCREW, DOOR INSIDE HANDLE

main90148-50006×2iAZSH30..M202301-202404

69296CSCREW, DOOR INSIDE HANDLE

main90148-50003×2iAZSH30..M202301-202404

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-30190supersedes 69311-30200iTZSH35..GCC202301

CENTRAL ASIA SPEC

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-30190supersedes 69312-30200iAZSH30..M202301-202404

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110×2iAZSH30..RHD202404-202503

main69410-33030×2iAZSH3#,TZSH35202301-202404

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-60020×2iAZSH3#,TZSH35202301-202404

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-30260iAZSH30..M202301-202404

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-30260iAZSH30..RHD202301-202503

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-30230iAZSH30..M202301-202404

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-30230iAZSH30..M202301-202404

9014860013

main90148-60013

9014860083

main90148-60083

9014880066

main90148-80066

9018905003

main90189-05003

9356755020

main93567-55020

37 parts on this diagram · 1 diagram in section
