Toyota CROWN — FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-30041iGS131,JZS133,LS130,YS132199110-200104

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-30041iGS131,JZS133,LS130,YS132199110-200104

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-30160iGS131,JZS133,LS130,YS132199110-200104

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-30150iGS131,JZS133,LS130,YS132199110-200104

69269ESEAL, FRONT DOOR INSIDE HANDLE

main69269-30010×2iJZS133..EECC199110-199308

COLD SPEC

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-30060-B0iJZS133..EECC199110-199308

SHADOW GRAY,TRIM1#

main69277-30060-E0iGS131,JZS133..ROY,SAL199110-200104

QUARTZ,TRIM4#

main69277-30060-J0iGS131..RHD;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G;JZS133,LS130,YS132..4F,4FC,4H199110-200104

DK.BLUE,TRIM8#

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69277-30060-B0iJZS133..EECC199110-199308

SHADOW GRAY,TRIM1#

main69277-30060-E0iGS131,JZS133..ROY,SAL199110-200104

QUARTZ,TRIM4#

main69277-30060-J0iGS131..RHD;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G;JZS133,LS130,YS132..4F,4FC,4H199110-200104

DK.BLUE,TRIM8#

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iGS131,JZS133,LS130,YS132199110-199111

RH

main69293-12060iGS131,JZS133,LS130,YS132199110-199111

LH

69310LOCK ASSY, FRONT DOOR, RH

main69030-30700iJZS133..EECC199110-199308

main69030-30710iLS130..4H199110-199512

main69030-30720iGS131,JZS133..RHD..GEN199110-200104

main69030-30730iGS131,JZS133..LHD199110-199904

main69310-30780iLS130..4H199110-199512

W/O(MOTOR)

main69310-30790iLS130,YS132..LHD199110-199512

TAXI SPEC FOR SAUDI

69320LOCK ASSY, FRONT DOOR, LH

main69040-30650iJZS133..EECC199110-199308

main69040-30660iGS131,JZS133,LS130..RHD..(4FC,4H,5F)..GEN199110-200104

main69040-30670iJZS133..D199110-199512

main69040-30680iGS131,JZS133..LHD..(ROY,SAL)199110-199904

main69320-30760iLS130..4H199110-199512

W/O(MOTOR)

main69320-30770iLS130,YS132..LHD199110-199512

TAXI SPEC FOR SAUDI

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-50010×2iJZS133..EECC199110-199308

main69410-87001×2iGS131,JZS133,LS130,YS132..GCC,GEN199110-200104

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-50010×2iJZS133..EECC199110-199308

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-30100iGS131,JZS133,LS130,YS132199110-200104

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-30110iGS131,JZS133,LS130,YS132199110-200104

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-30030-B0×2iJZS133..EECC199110-199308

SHADOW GRAY,TRIM1#

main69741-30030-E0×2iGS131,JZS133..ROY,SAL199110-200104

QUARTZ,TRIM4#

main69741-30030-J0×2iGS131..RHD;JZS133..5F..(DLX,ROY);GS131,JZS133..LHD..5F..G;JZS133,LS130,YS132..4F,4FC,4H199110-200104

DK.BLUE,TRIM8#

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-30020×4iGS131,JZS133,LS130,YS132199110-200104

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24050iJZS133,LS130,YS132..B,D199110-199512

GREEN

main69759-24060×2iGS131,JZS133..ROY,SAL199110-200104

GRAY

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-24010iGS131,JZS133,LS130,YS132199110-200104

NATURAL

main69759-24020iGS131,JZS133,LS130,YS132199110-200104

BLUE

9015960356

main90159-60356

9015980029

main90159-80029

9016860014

main90168-60014

9018906018

main90189-06018

9161160612

main91611-60612

9352054010

main93520-54010

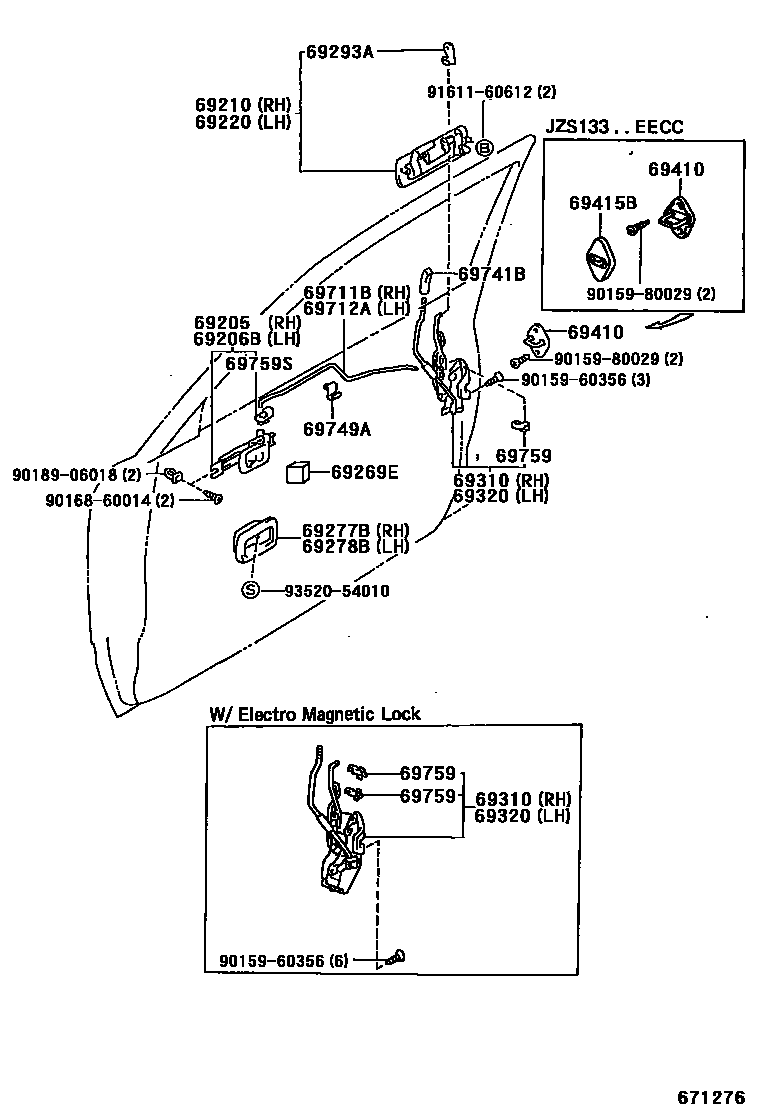

24 parts on this diagram · 1 diagram in section
