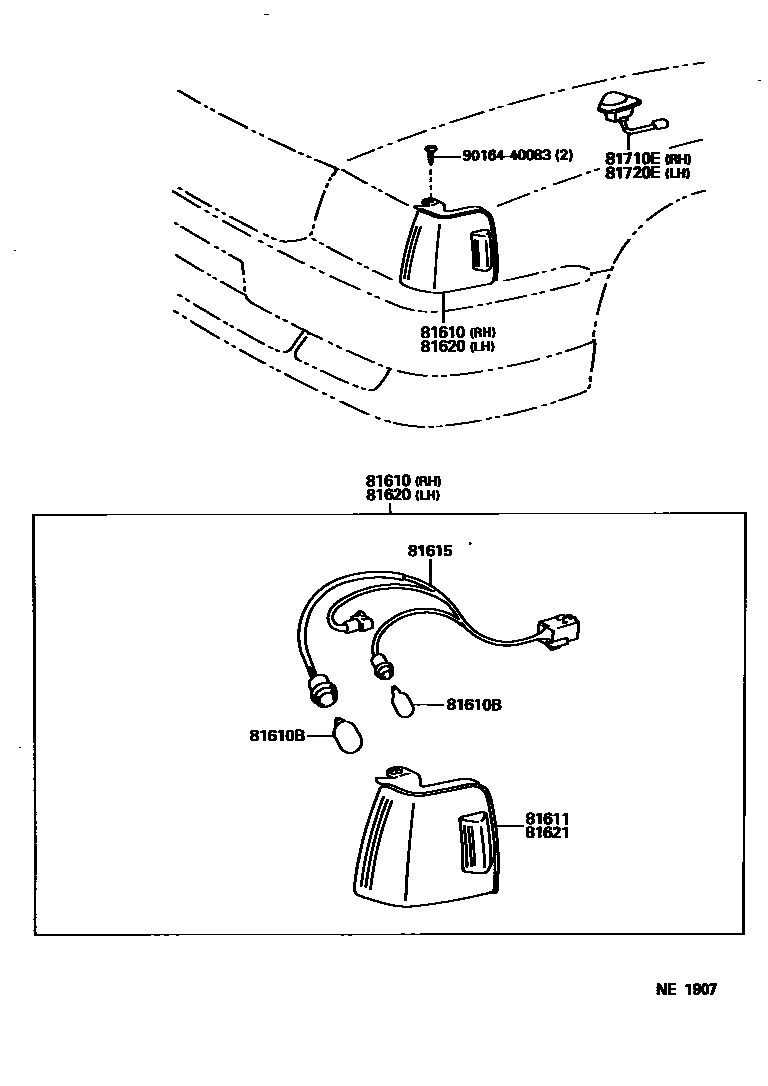

Toyota CROWN — FRONT CLEARANCE LAMP

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-30400i199512-199909

W(CORNERING LAMP)

main81610-30410i199512-199909

main81610-30420i199707

main81610-30460i199901-199909

CHINA SPEC

main81610-30461i199909

CHINA SPEC

main81610-30480i199909

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main90981-13043×2i199901

12V 21W,CHINA SPEC

main90981-13044×2i199707

12V 21/5W

main90981-15011×2i199909

12V 21W,AMBER

main99132-12050×4i199512-199909

12V 5W

main99132-21210×2i199512

12V 21/5W,W(CORNERING LAMP),CLEARANCE & CORNER

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-30400i199512-199909

main81611-30420i199707

main81611-30450i199909

main81611-30460i199901

CHINA SPEC

81615SOCKET AND WIRE, CLEARANCE LAMP

main81615-30390×2i199707

main81615-30400×2i199512-199909

W(CORNERING LAMP)

main81615-30410×2i199512-199909

main81615-30460×2i199901-199909

CHINA SPEC

main81615-30461×2i199909

CHINA SPEC

main81615-30480×2i199909

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-30390i199512-199909

W(CORNERING LAMP)

main81620-30400i199512-199909

main81620-30410i199707

main81620-30450i199901-199909

CHINA SPEC

main81620-30451i199909

CHINA SPEC

main81620-30470i199909

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-30390i199512-199909

main81621-30410i199707

main81621-30440i199909

main81621-30450i199901

CHINA SPEC

81710EMARKER ASSY, FENDER, RH

main81710-30090i199512-199909

81720EMARKER ASSY, FENDER, LH

main81720-30080i199512-199909

9016440083

main90164-40083

9 parts on this diagram · 2 diagrams in section

FRONT CLEARANCE LAMP for Toyota CROWN

This section contains 9 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota CROWN. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, SOCKET AND WIRE, CLEARANCE LAMP, LAMP ASSY, PARKING & CLEARANCE, LH.
