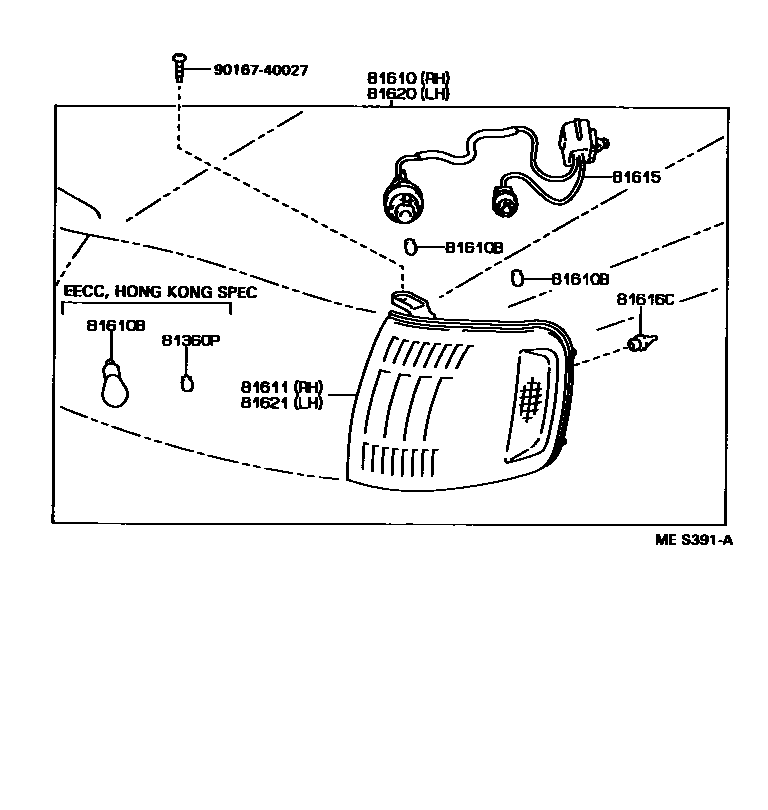

Toyota CROWN — FRONT CLEARANCE LAMP

81360PBULB, CORNERING LAMP

main90981-12010×2i199110-199512

HONG KONG SPEC

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-30320i199110-199308

main81610-30330i199110-200104

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main90981-12010×4i199110-200104

12V 5W

main90981-13036×2i199110-199308

12V 35/5W

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-30320i199110-199308

main81611-30330i199110-200104

81615SOCKET AND WIRE, CLEARANCE LAMP

main81615-30320×2i199110-199308

main81615-30330×2i199110-200104

81616CBUSHING, CLEARNCE LAMP

main81616-30161×2i199110-200104

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-30320i199110-199308

main81620-30330i199110-200104

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-30320i199110-199308

main81621-30330i199110-200104

9016740027

main90167-40027

9 parts on this diagram · 1 diagram in section

FRONT CLEARANCE LAMP for Toyota CROWN

This section contains 9 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota CROWN. Key components include: BULB, CORNERING LAMP, LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, SOCKET AND WIRE, CLEARANCE LAMP.
