Toyota CROWN — FRONT CLEARANCE LAMP

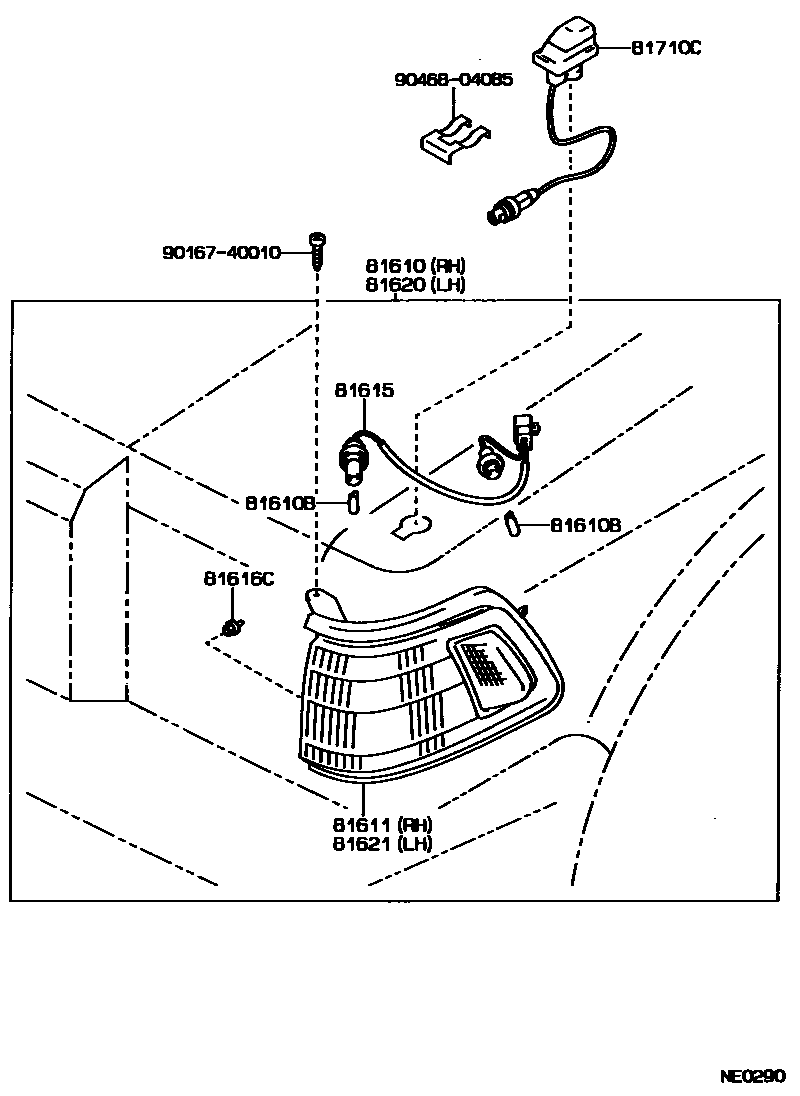

Parts diagram

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-30260i198709-198908

main81610-30261i198908-199110

main81610-30290i198709-198908

main81610-30291i198908-199110

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main99132-12050×4i198709-199110

12V 5W

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-30250i198709-198908

main81611-30251i198908-199110

main81611-30280i198709-198908

main81611-30281i198908-199110

81615SOCKET AND WIRE, CLEARANCE LAMP

main81615-30240×2i198709-199110

main81615-30290×2i198709-199110

81616CBUSHING, CLEARNCE LAMP

main81616-30161×2i198709-199110

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-30260i198709-198908

main81620-30261i198908-199110

main81620-30290i198709-198908

main81620-30291i198908-199110

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-30250i198709-198908

main81621-30251i198908-199110

main81621-30280i198709-198908

main81621-30281i198908-199110

81710CMARKER ASSY, FENDER

main81710-30031×2i198709-199110

9016740010

main90167-40010

9046804085

main90468-04085

10 parts on this diagram · 2 diagrams in section

FRONT CLEARANCE LAMP for Toyota CROWN

This section contains 10 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota CROWN. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, SOCKET AND WIRE, CLEARANCE LAMP, BUSHING, CLEARNCE LAMP.
