Toyota CROWN — FRONT CLEARANCE LAMP

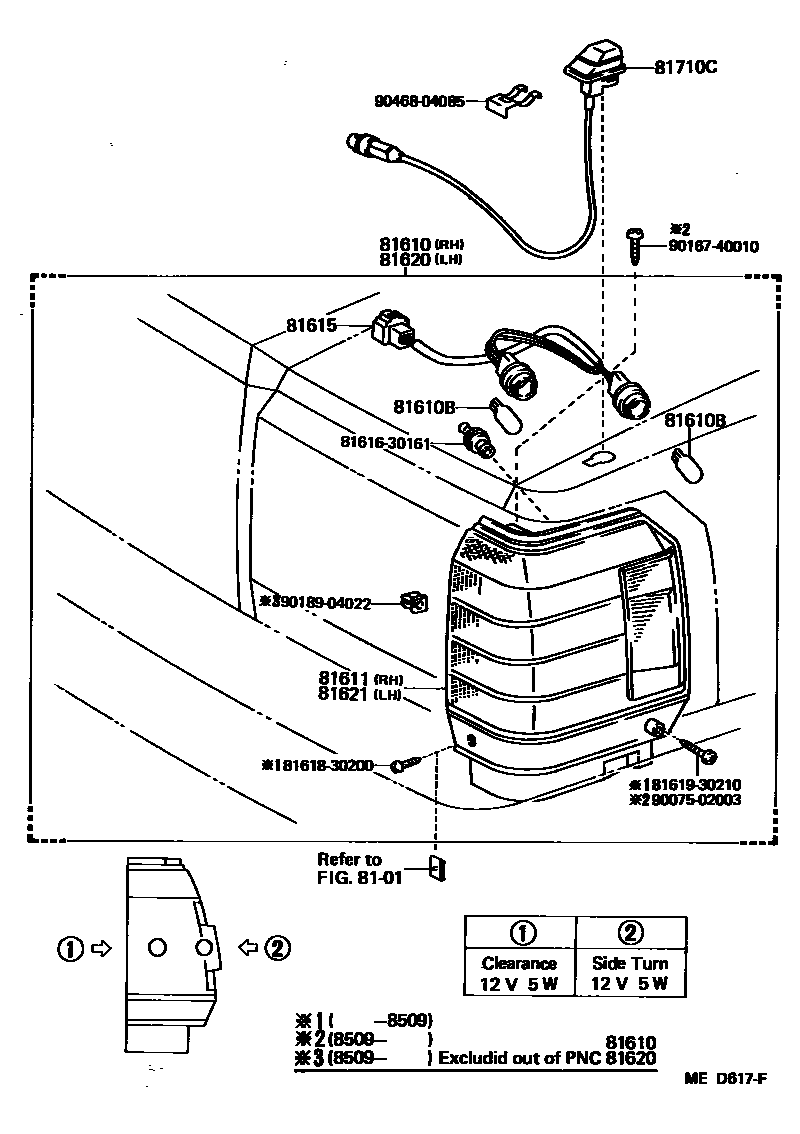

Parts diagram

8101HEADLAMP

→ Go to FIG 81-01

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-30211i198509-198708

main81610-30231i198509-198708

main81610-39775i198308-198509

main81610-39785i198308-198509

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main99132-12050×4i198308-198708

12V 5W,12V 5W

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-30210i198308-198509

main81611-30211i198509-198708

main81611-30220i198308-198509

main81611-30231i198509-198708

81615SOCKET AND WIRE, CLEARANCE LAMP

main81615-30210×2i198308-198509

main81615-30211×2i198509-198708

main81615-30220×2i198308-198509

main81615-30231×2i198509-198708

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-30211i198509-198708

main81620-30231i198509-198708

main81620-39775i198308-198509

main81620-39785i198308-198509

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-30210i198308-198509

main81621-30211i198509-198708

main81621-30220i198308-198509

main81621-30231i198509-198708

81710CMARKER ASSY, FENDER

main81710-30020i198509-198708

RH

main81710-30030×2i198308-198509

main81710-30040×2i198308-198509

main81720-30010i198509-198708

LH

8161630161RIM, PARKING AND CLEARANCE LAMP, RH

main81616-30161

8161830200BRACKET, PARKING AND CLEARANCE LAMP, RH

main81618-30200

8161930210

main81619-30210

9007502003

main90075-02003

9016740010

main90167-40010

9018904022

main90189-04022

9046804085

main90468-04085

15 parts on this diagram · 2 diagrams in section

FRONT CLEARANCE LAMP for Toyota CROWN

This section contains 16 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota CROWN. Key components include: HEADLAMP, LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, SOCKET AND WIRE, CLEARANCE LAMP.
