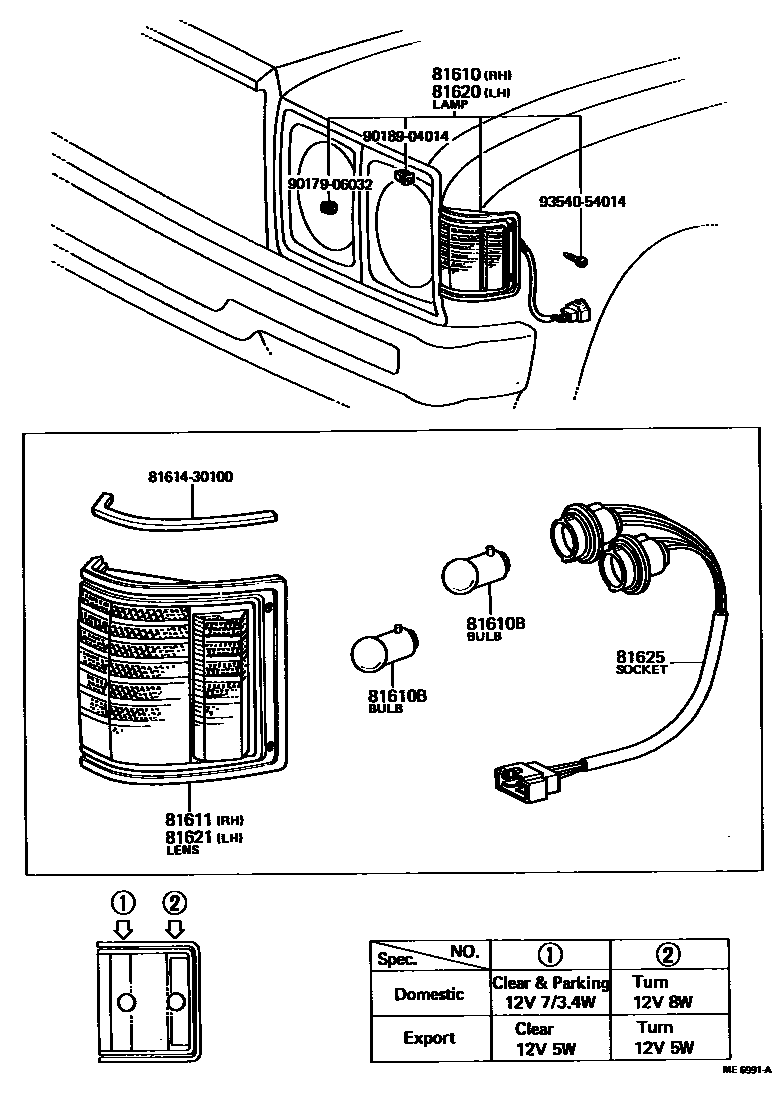

Toyota CROWN — FRONT CLEARANCE LAMP

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-39135i197802-197908

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main99132-12050×4i197802-197908

12V 5W,12V 5W

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-30110i197802-197908

AMBER-CLEAR

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-39135i197802-197908

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-30110i197802-197908

AMBER-CLEAR

81625SOCKET AND WIRE, PARKING AND CLEARANCE LAMP

main81615-30110×2i197802-197908

8161430100GASKET, PARKING AND CLEARANCE LAMP BODY, RH

main81614-30100

9017906032

main90179-06032

9018904014

main90189-04014

9354054014

main93540-54014

10 parts on this diagram · 1 diagram in section

FRONT CLEARANCE LAMP for Toyota CROWN

This section contains 10 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota CROWN. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, LAMP ASSY, PARKING & CLEARANCE, LH, LENS, PARKING & CLEARANCE LAMP, LH.
