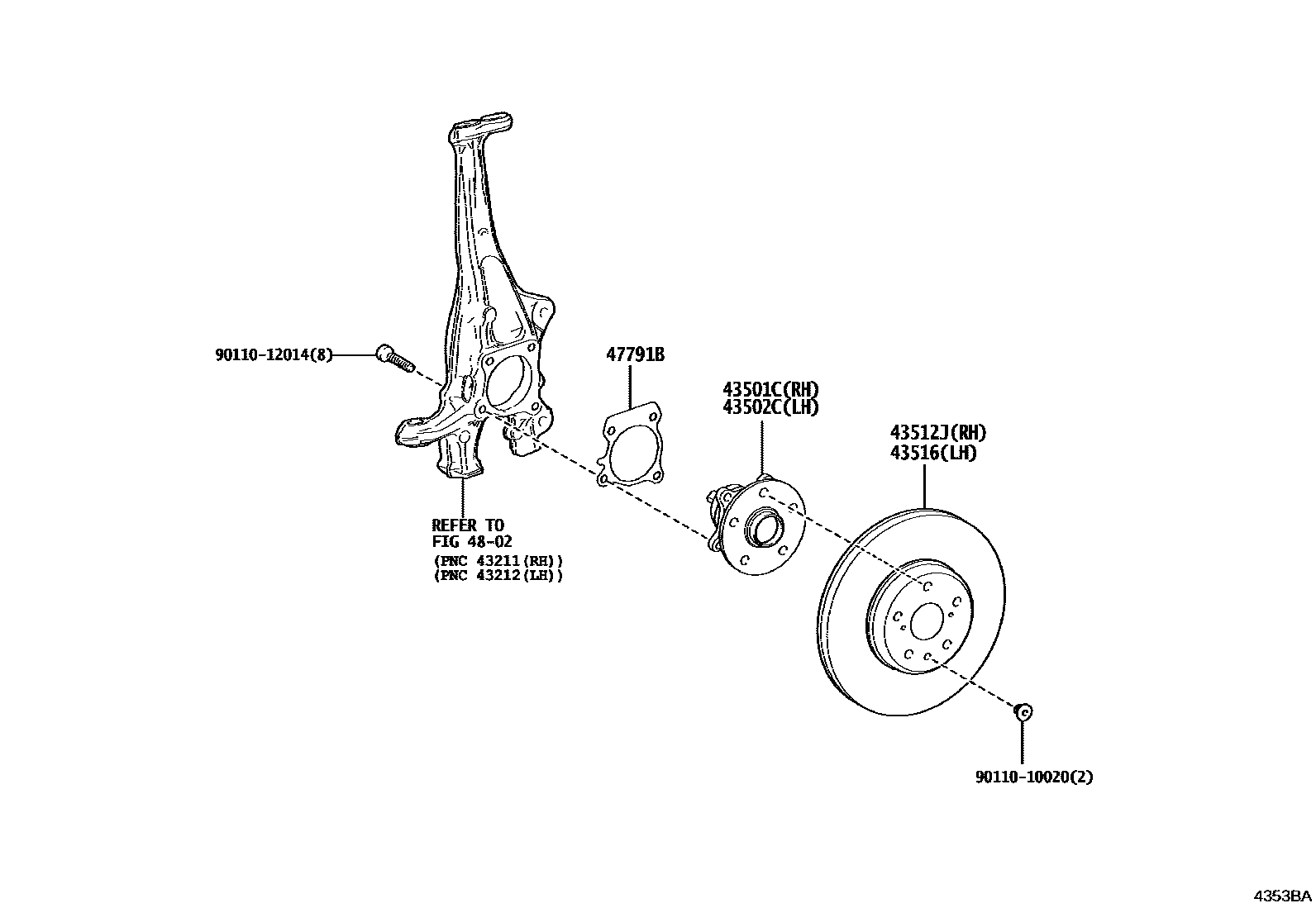

Toyota CROWN — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-50100iAZSH32202405

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43560-50040iAZSH32202405

43512JDISC, FRONT RH

main43512-50260iAZSH32202405

43516DISC, FRONT LH

main43516-50020iAZSH32202405

47791BPLATE, DISC BRAKE AIR GUIDE

main47791-11010×2iAZSH32202405

4802

9011010020

main90110-10020

9011012014

main90110-12014

8 parts on this diagram · 1 diagram in section
