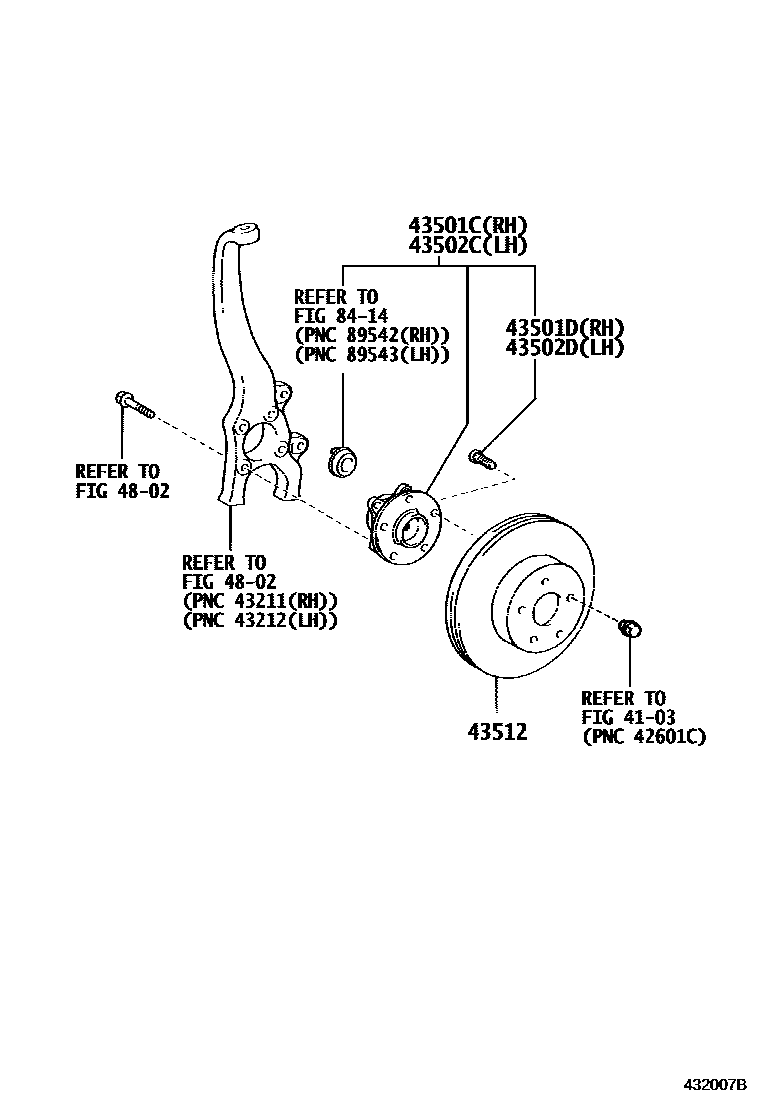

Toyota CROWN — FRONT AXLE HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-30010iGRS182200411-200802

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070iGRS182200411-200802

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43560-30010iGRS182200411-200802

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070iGRS182200411-200802

43512DISC, FRONT

main43512-30310iGRS182200411-200802

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

8414ABS & VSC

→ Go to FIG 84-14

8 parts on this diagram · 1 diagram in section
