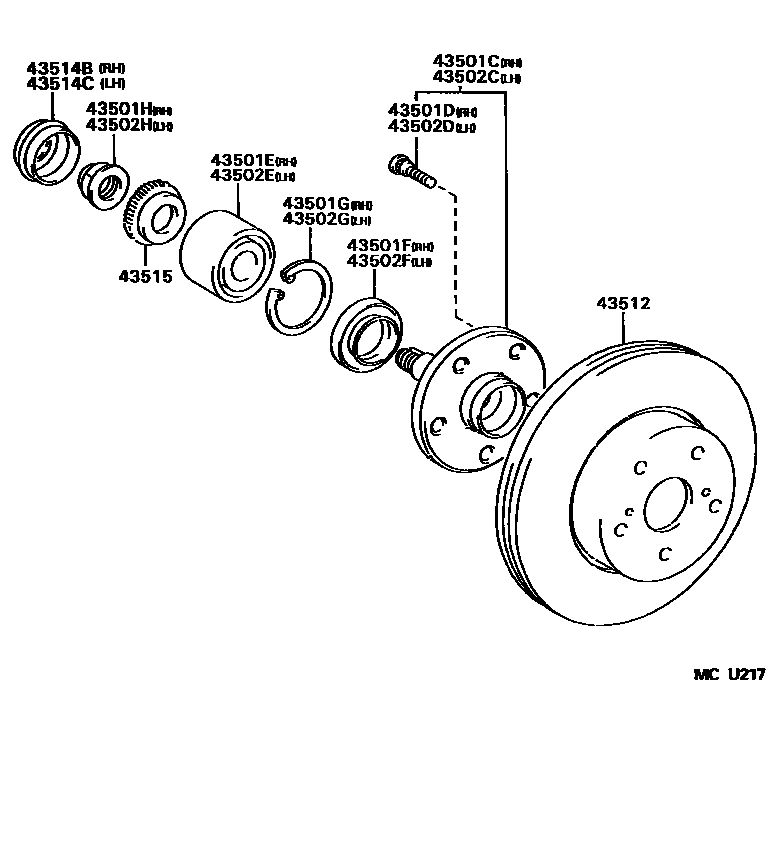

Toyota CROWN — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-22080iGS151,JZS155199512

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070×5iGS151,JZS155199512

sub90942-02049

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-32035iGS151,JZS155199512

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-48013iGS151,JZS155199512

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-77001iGS151,JZS155199512

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90179-22022iGS151,JZS155199512

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-22080iGS151,JZS155199512

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070×5iGS151,JZS155199512

sub90942-02049

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-32035iGS151,JZS155199512

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-48013iGS151,JZS155199512

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-77001iGS151,JZS155199512

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90179-22022iGS151,JZS155199512

43512DISC, FRONT

main43512-22220×2iGS151,JZS155199512

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-22040iGS151,JZS155199512

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-22040iGS151,JZS155199512

43515ROTOR, SKID CONTROL, FRONT

main43515-22020×2iJZS155199512-199609

main43515-22030×2iGS151,JZS155199609

16 parts on this diagram · 1 diagram in section
