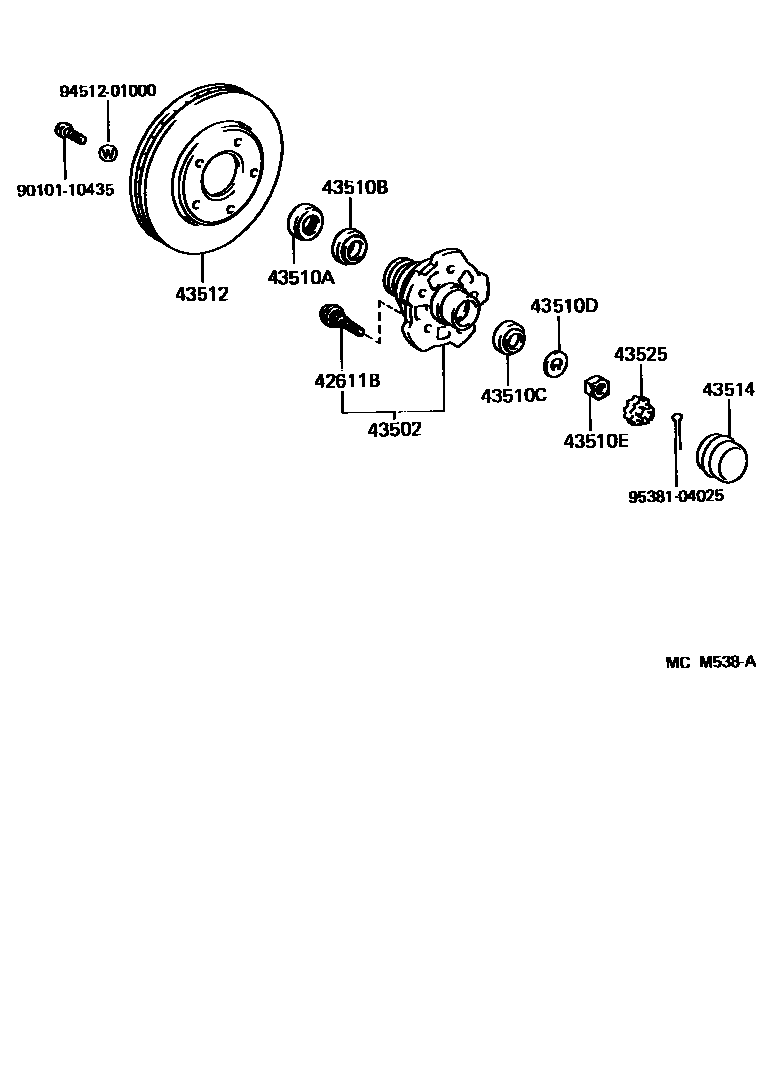

Toyota CROWN — FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02048×10iGS131,JZS133,LS130,YS132199110-200104

43502HUB SUB-ASSY, FRONT AXLE

main43502-30090×2iLS130,YS132..LHD199110-199308

main43502-30100×2iGS131;LS130..RHD199110-199308

W(POWER STEERING)

main43502-30110×2iJZS133199110-200104

main43503-30040×2iJZS133..RHD..4FC..Q199110-200104

W(*66)

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-48001×2iJZS133..4FC;GS131,LS130,YS132;JZS133..5F..(D,G,Q)199110-200104

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-34083×2iGS131,JZS133,LS130,YS132199110-200104

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-21082×2iGS131,JZS133,LS130,YS132199110-200104

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20005×2iGS131,JZS133,LS130,YS132199110-200104

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185×2iGS131,JZS133,LS130,YS132199110-200104

43512DISC, FRONT

main43512-30220×2iJZS133199210-200104

main43512-30260×2iJZS133199110-199210

main43512-30270×2iGS131,LS130,YS132199110-199508

43514CAP, FRONT HUB GREASE

main43514-22020×2iGS131,JZS133,LS130,YS132199110-199402

main43514-30040×2iGS131,JZS133,LS130,YS132199402-200104

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010×2iGS131,JZS133,LS130,YS132199110-200104

9010110435

main90101-10435

9451201000

main94512-01000

9538104025

main95381-04025

13 parts on this diagram · 1 diagram in section
