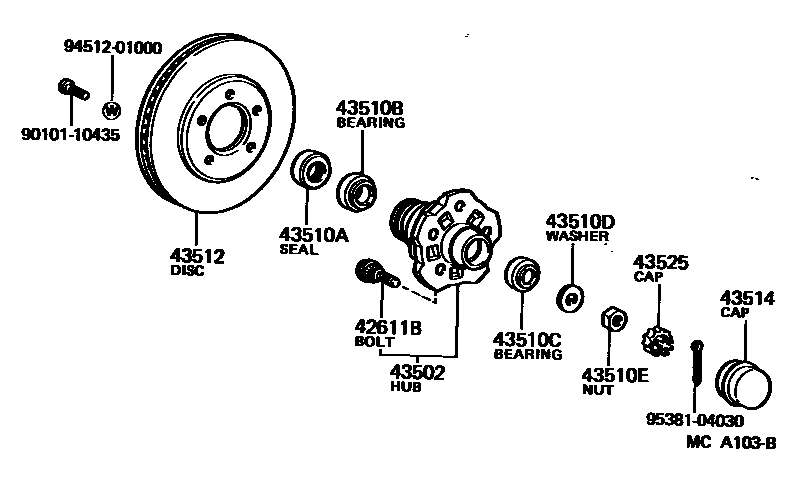

Toyota CROWN — FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02048iGS131,LS130,MS13#,YS132198709-199110

43502HUB SUB-ASSY, FRONT AXLE

main43502-30040iLS130,MS132,YS132..(DLX,STD)..GEN198709-198908

main43502-30060iMS135..GCC198709-198908

W(ALUMINUM WHEEL)

main43502-30080iMS135..HT198709-199110

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-48001×2iGS131,LS130,MS13#,YS132198709-199110

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-34083×2iMS132..SED..SAL198908-199110

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-21082×2iLS130,MS132,135,YS132198709-198908

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20005×2iGS131,LS130,MS13#,YS132198908-199110

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185×2iGS131,LS130,MS13#,YS132198709-199110

43512DISC, FRONT

main43512-30130×2iMS135..V198908-199110

W(ALUMINUM WHEEL)

sub43512-30270

main43512-30140×2iMS135..GCC198709-198908

main43512-30160×2iMS135..V198908-199110

sub43512-30260

43514CAP, FRONT HUB GREASE

main43514-22020×2iLS130,MS132,135,YS132198709-198908

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010×2iGS131198709-198908

9010110435

main90101-10435

9451201000

main94512-01000

9538104030

main95381-04030

13 parts on this diagram · 1 diagram in section
