Toyota CROWN — FOG LAMP

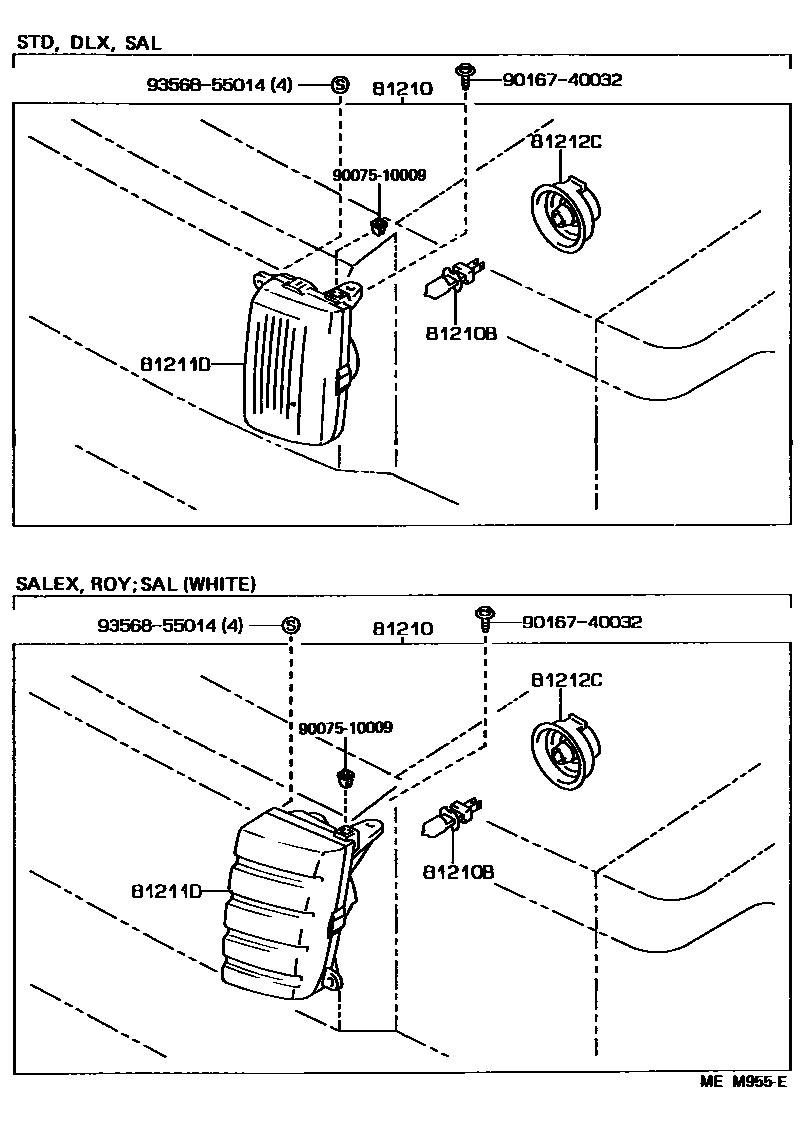

Parts diagram

81210LAMP ASSY, FOG

main81210-30090i198709-198709

RH

main81210-30091i198709-198908

RH

main81210-30092i198908-198911

RH

main81210-30100i198709-198709

RH

main81210-30101i198709-198908

RH

main81210-30102i198908-199110

RH

main81210-30120i198709-198709

RH

main81210-30121i198709-198908

RH

main81210-30122i198908-199110

RH

main81210-30130i198911-199110

RH; RH,WHITE

main81220-30090i198709-198709

LH

main81220-30091i198709-198908

LH

main81220-30092i198911-199110

LH

main81220-30100i198709-198709

LH

main81220-30101i198709-198908

LH

main81220-30102i198908-199110

LH

main81220-30120i198709-198709

LH

main81220-30121i198709-198908

LH

main81220-30122i198908-199110

LH

main81220-30130i198911-199110

LH; LH,WHITE

81210BBULB, FOG LAMP

main90981-13027×2i198911-199110

12V 55W,HALOGEN

81211DLAMP UNIT, FOG LAMP

main81211-30090i198709-198709

RH

main81211-30091i198709-198908

RH

main81211-30092i198908-198911

RH

main81211-30100i198709-198709

RH

main81211-30101i198709-198908

RH

main81211-30102i198908-199110

RH

main81211-30120i198709-198709

RH

main81211-30121i198709-198908

RH

main81211-30122i198908-199110

RH

main81211-30130i198911-199110

RH; RH,WHITE

main81221-30090i198709-198709

LH

main81221-30091i198709-198908

LH

main81221-30092i198911-199110

LH

main81221-30100i198709-198709

LH

main81221-30101i198709-198908

LH

main81221-30102i198908-199110

LH

main81221-30120i198709-198709

LH

main81221-30121i198709-198908

LH

main81221-30122i198908-199110

LH

main81221-30130i198911-199110

LH; LH,WHITE

81212CCOVER, FOG LAMP

main90075-99008×2i198709-198908

main90075-99019×2i198911-199110

9007510009

main90075-10009

9016740032

main90167-40032

9356855014

main93568-55014

7 parts on this diagram · 2 diagrams in section

FOG LAMP for Toyota CROWN

This section contains 7 genuine Toyota parts for the FOG LAMP system of the Toyota CROWN. Key components include: LAMP ASSY, FOG, BULB, FOG LAMP, LAMP UNIT, FOG LAMP, COVER, FOG LAMP.
