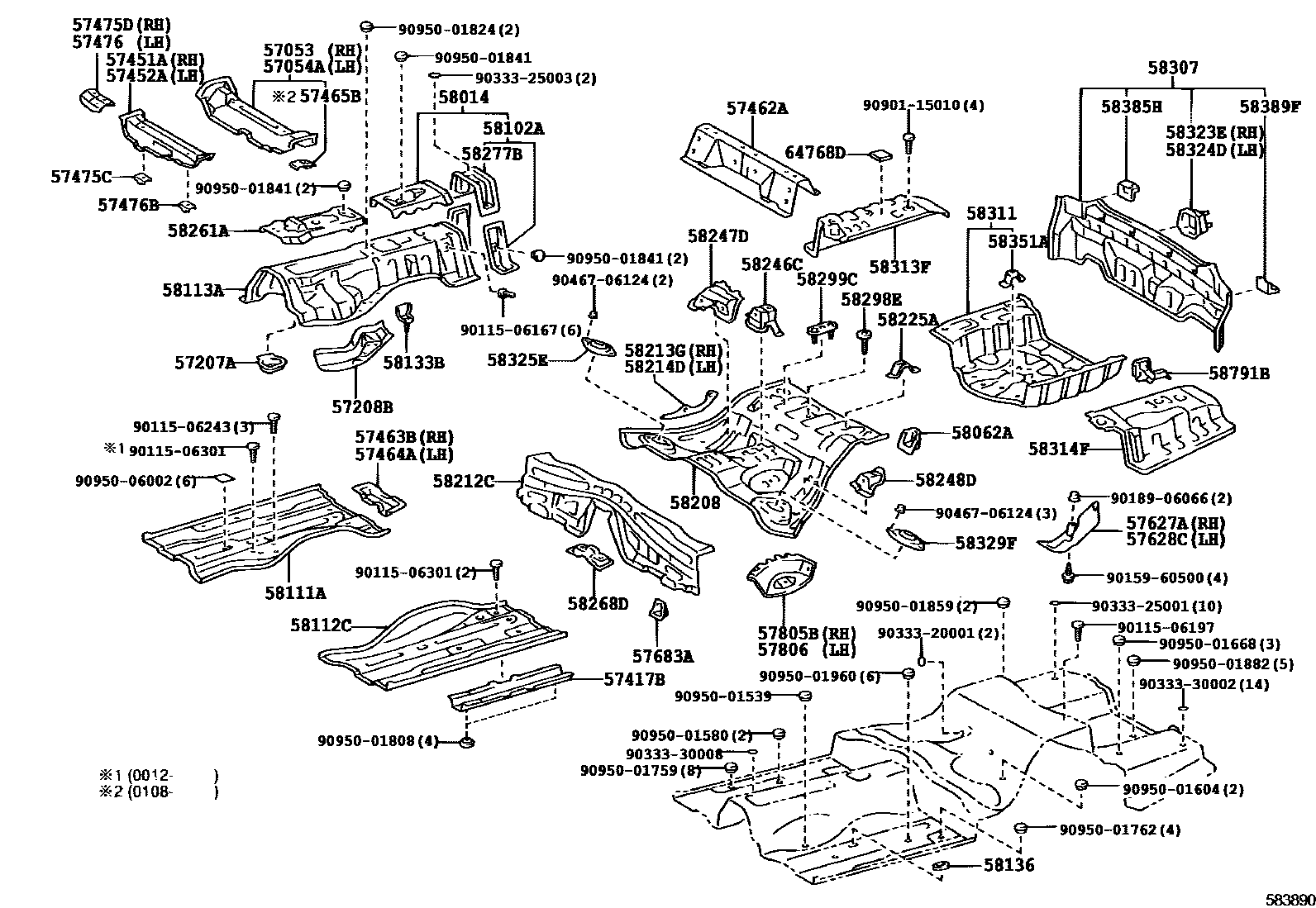

Toyota CROWN — FLOOR PAN & LOWER BACK PANEL

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-30040iJZS175199909-200108

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-30030iJZS175199909-200108

57207ABRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH

main57207-51010iJZS175199909-200108

57208BBRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH

main57208-51010iJZS175199909-200108

57417BREINFORCEMENT, FRONT FLOOR UNDER

main57417-51010×2iJZS175199909-200108

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-30070iJZS175199909-200108

57452AMEMBER, FRONT FLOOR CROSS, NO.2

main57452-30070iJZS175199909-200108

57462AMEMBER, CENTER FLOOR CROSS, NO.2

main57405-30010iJZS175199909-200108

57463BREINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH

main57463-51010iJZS175199909-200108

57464AREINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH

main57464-51010iJZS175199909-200108

57465BBRACKET, FRONT SEAT, INNER

main57465-30040iJZS175200108-200312

RH

main57466-30040iJZS175200108-200312

LH

57475CPLATE, FRONT FLOOR CROSSMEMBER

main57475-22020iJZS175199909-200108

57475DPLATE, FRONT FLOOR CROSSMEMBER, RH

main57475-30040iJZS175199909-200108

57476PLATE, FRONT FLOOR CROSSMEMBER, LH

main57476-30030iJZS175199909-200108

57476BPLATE, FRONT FLOOR CROSSMEMBER

main57475-22020iJZS175199909-200108

57627ACOVER, REAR FLOOR SIDE MEMBER, RH

main57627-51010iJZS175199909-200108

57628CCOVER, REAR FLOOR SIDE MEMBER, LH

main57628-51010iJZS175199909-200108

57683ABRACKET, FUEL TANK MOUNTING, NO.1

main57683-51010×2iJZS175199909-200108

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-51010iJZS175199909-200012

main57805-51011iJZS175200012-200108

main57805-53011iJZS175200108-200312

sub57805-53012

57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-51010iJZS175199909-200012

main57806-51011iJZS175200012-200108

main57806-53011iJZS175200108-200312

sub57806-53012

58014PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER

main58014-51010iJZS175199909-200108

58062ABRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR

main58062-30010×2iJZS175199909-200108

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-51010iJZS175200012-200108

58111APAN, FRONT FLOOR, RH

main58111-30400iJZS175199909-200012

sub58111-30401

main58111-30440iJZS175200012-200101

main58111-30441iJZS175200101-200108

58112CPAN, FRONT FLOOR, LH

main58112-30080iJZS175199909-200101

main58112-30081iJZS175200101-200108

58113APANEL, FRONT FLOOR, CENTER

main58113-30130iJZS175199909-200008

main58113-30131iJZS175200008-200108

58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3

main58133-51010iJZS175199909-200108

58136COVER, FRONT FLOOR HOLE

main58136-51010×2iJZS175200108-200312

58208PAN, CENTER FLOOR

main58211-30290iJZS175199909-200012

W(REAR COOLER)

main58211-30291iJZS175200012-200108

W(REAR COOLER)

main58211-51901iJZS175199909-200012

main58211-51902iJZS175200108-200312

58212CPAN, CENTER FLOOR, FRONT

main58212-51010iJZS175199909-200108

58213GREINFORCEMENT, CENTER FLOOR PANEL, NO.1 RH

main58213-51011iJZS175199909-200108

58214DREINFORCEMENT, CENTER FLOOR PANEL, NO.1 LH

main58214-51011iJZS175199909-200108

58225ABRACKET, CENTER MOUNTING

main58225-30060×2iJZS175200108-200312

58246CBRACKET, REAR SEAT HINGE, CENTER NO.2

main58246-30010iJZS175199909-200108

58247DBRACKET, REAR SEAT HINGE, OUTER RH

main58247-30010iJZS175199909-200108

58248DBRACKET, REAR SEAT HINGE, OUTER LH

main58248-30020×2iJZS175199909-200108

58261ACOVER, TRANSMISSION

main58261-30180iJZS175199909-200108

58268DREINFORCEMENT, PARKING BRAKE CABLE, NO.3

main58268-51011iJZS175199909-200108

58277BREINFORCEMENT, DRIVE SHAFT CENTER SUPPORT

main58209-51010iJZS175199909-200108

58298EBRACKET, HOT AIR INTAKE, NO.1

main58298-30030iJZS175199909-200108

58299CBRACKET, HOT AIR INTAKE, NO.2

main58299-30010iJZS175199909-200108

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-30710iJZS175199909-200108

58311PAN, REAR FLOOR

main58311-30905iJZS175199909-200108

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-30160iJZS175199909-200108

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-30160iJZS175199909-200108

58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH

main58323-30040iJZS175199909-200108

58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH

main58324-30020iJZS175199909-200108

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-30010iJZS175199909-200108

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-30020iJZS175199909-200108

58351ABRACKET, SPARE WHEEL CARRIER

main58351-53010iJZS175199909-200108

58385HBRACKET, REAR BUMPER COVER, NO.1

main58385-53010×2iJZS175199909-200108

58389FBRACKET, LOWER BACK COVER

main58389-30020×2iJZS175199909-200108

58791BCARRIER, JACK

main58791-30030iJZS175199909-200108

64768DSTOPPER, JACK COVER

main64768-30010iJZS175199909-200108

9011506167

main90115-06167

9011506197

main90115-06197

9011506243

main90115-06243

9011506301

main90115-06301

9015960500

main90159-60500

9018906066

main90189-06066

9033320001

main90333-20001

9033325001

main90333-25001

9033325003

main90333-25003

9033330002

main90333-30002

9033330008

main90333-30008

9046706124

main90467-06124

9090115010

main90901-15010

9095001539

main90950-01539

9095001580

main90950-01580

9095001604

main90950-01604

9095001668

main90950-01668

9095001759

main90950-01759

9095001762

main90950-01762

9095001808

main90950-01808

9095001824

main90950-01824

9095001841

main90950-01841

9095001859

main90950-01859

9095001882

main90950-01882

9095001960

main90950-01960

9095006002

main90950-06002

80 parts on this diagram · 1 diagram in section
