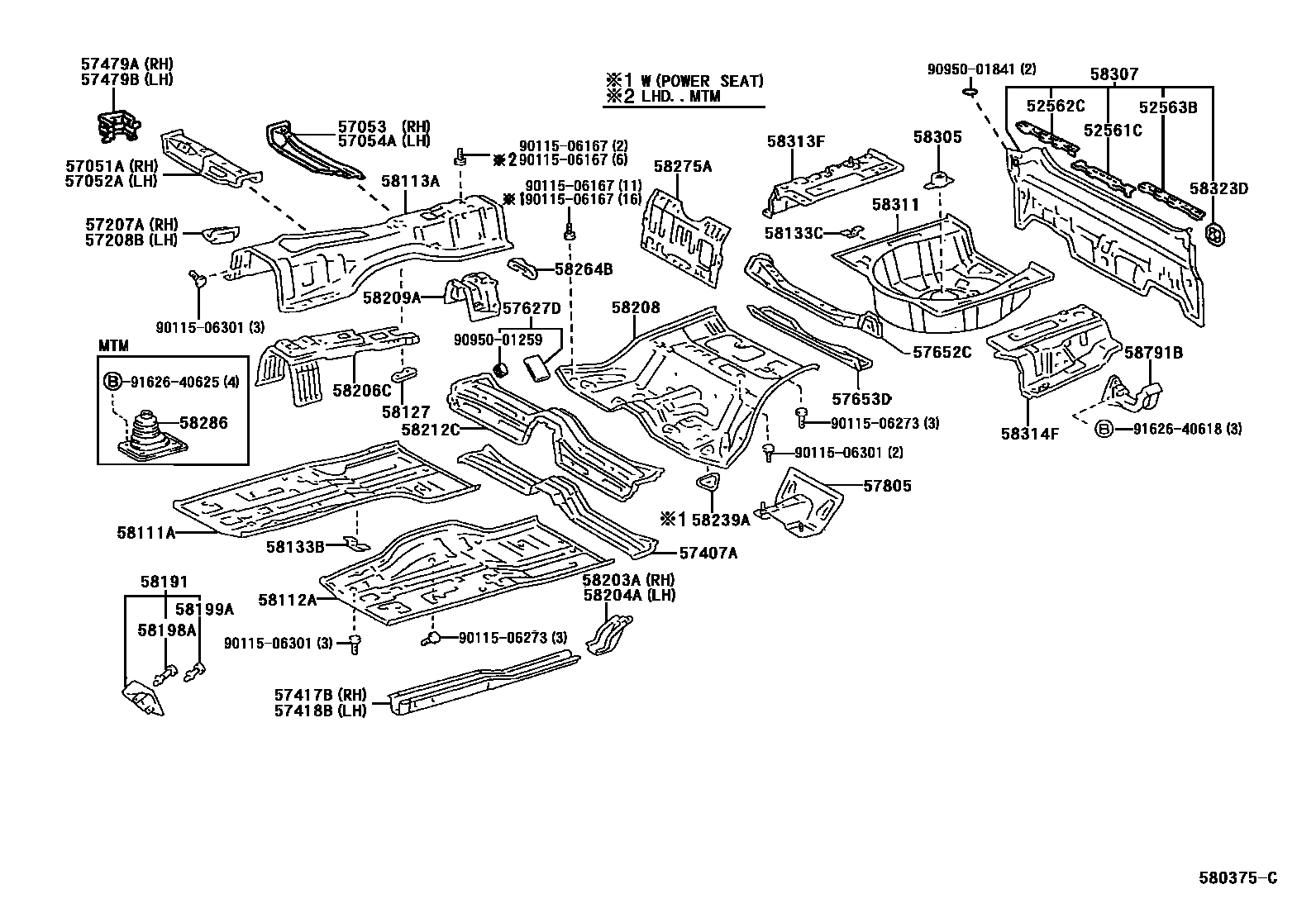

Toyota CROWN — FLOOR PAN & LOWER BACK PANEL
52561CRETAINER, REAR BUMPER, UPPER CENTER
52562CRETAINER, REAR BUMPER, UPPER RH
52563BRETAINER, REAR BUMPER, UPPER LH
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57207ABRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, RH
57208BBRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER, LH
57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS
57417BREINFORCEMENT, FRONT FLOOR UNDER
57418BREINFORCEMENT, FRONT FLOOR UNDER, LH
57479AREINFORCEMENT, FRONT FLOOR NO.2 CROSSMEMBER, LH
57479BREINFORCEMENT, FRONT FLOOR NO.2 CROSSMEMBER, RH
57627DCOVER, REAR FLOOR SIDE MEMBER
57652CMEMBER, REAR FLOOR CROSS, NO.1
57653DMEMBER, REAR FLOOR CROSS, NO.2
57805REINFORCEMENT SUB-ASSY, BELT ANCHOR
58111APAN, FRONT FLOOR, RH
58112APANEL, FRONT FLOOR, LH
58127PATCH, FRONT FLOOR PANEL
58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58133CBRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58191FOOTREST, FRONT FLOOR
58198ACLIP, FOOTREST, NO.1
58199ACLIP, FOOTREST, NO.2
58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58206CCOVER SUB-ASSY, TRANSMISSION, REAR
58208PAN, CENTER FLOOR
W(REAR POWER SEAT)
58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
58212CPAN, CENTER FLOOR, FRONT
W(REAR POWER SEAT)
58239APLATE, BELT ANCHOR NUT
58264BBRACKET, PARKING BRAKE CABLE GUIDE
58275ARETAINER, REAR SEATBACK TO CENTER FLOOR
58286BOOT, SHIFT & SELECT LEVER, NO.1
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
W(REAR AIR CONDITIONER)
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58323DREINFORCEMENT, REAR BUMPER ARM SUPPORT
58791BCARRIER, JACK
9011506167
main90115-06167
9011506273
main90115-06273
9011506301
main90115-06301
9095001259
main90950-01259
9095001841
main90950-01841
9162640618
main91626-40618
9162640625
main91626-40625
51 parts on this diagram · 2 diagrams in section
