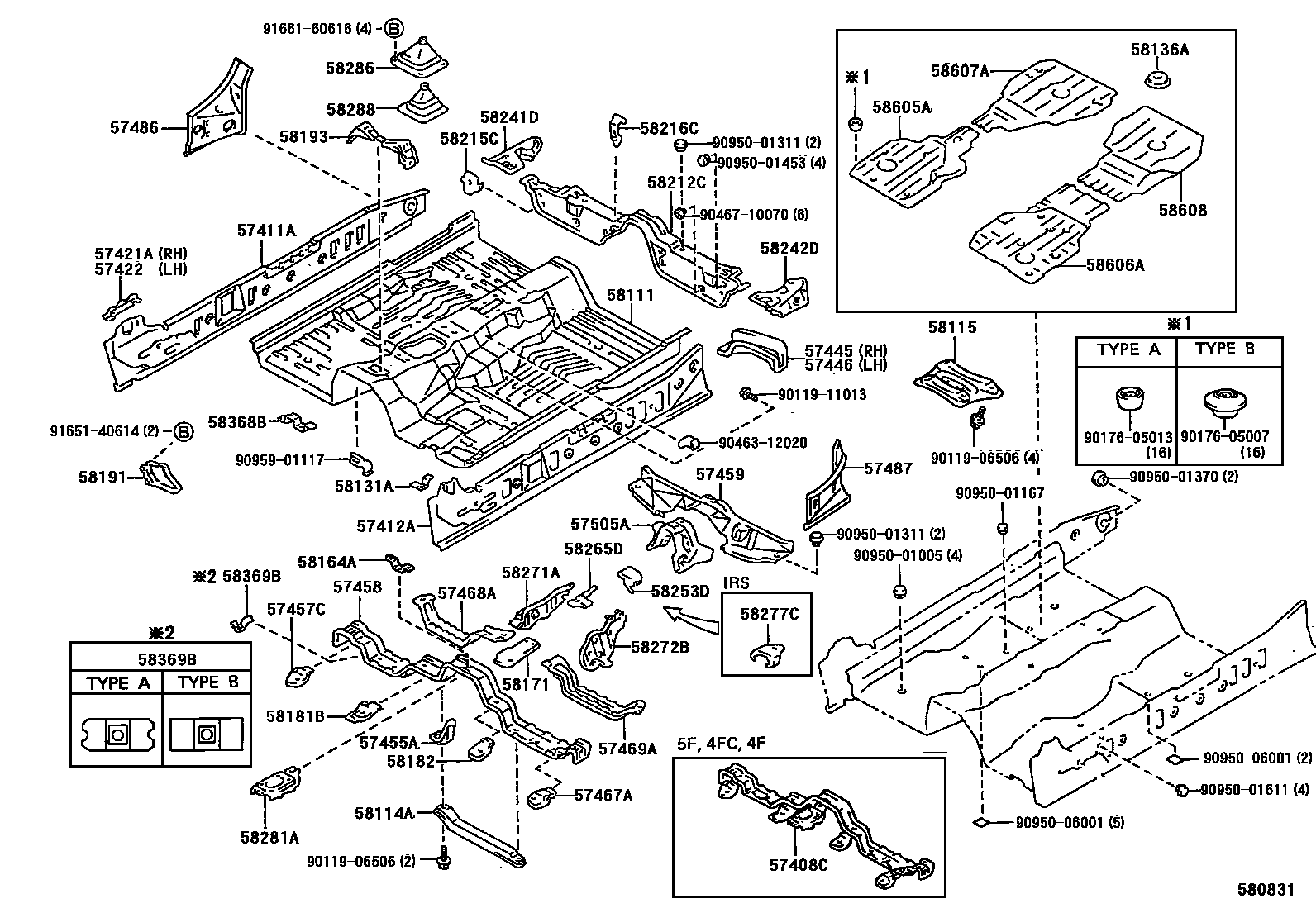

Toyota CROWN — FLOOR PAN & LOWER BACK PANEL
57408CMEMBER SUB-ASSY, FRONT FLOOR CROSS
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
57421APLATE, FLOOR SIDE RAIL, RH
57422PLATE, FLOOR SIDE RAIL, LH
57445REINFORCEMENT, NO.5 BODY MOUNTING, RH
57446REINFORCEMENT, NO.5 BODY MOUNTING, LH
57455ABRACKET, FRONT FLOOR CROSSMEMBER
57457CBRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT RH
57458MEMBER, FRONT FLOOR CROSS, NO.1
57459MEMBER, FRONT FLOOR CROSS, NO.2
57467ABRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH
57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH
57505AREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER
58111PAN, FRONT FLOOR
58114AREINFORCEMENT, FRONT FLOOR PANEL
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58131ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
FOR FRONT FLOOR PAN
FOR CENTER FLOOR PAN
FOR REAR FLOOR PAN
58136ACOVER, FRONT FLOOR SERVICE HOLE
58164ARETAINER, CONSOLE BOX MOUNTING
58171REINFORCEMENT, PARKING BRAKE BASE
58181BBRACKET, FRONT SEAT INSIDE MOUNTING, FRONT RH
58182BRACKET, FRONT SEAT INSIDE MOUNTING, FRONT LH
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58212CPAN, CENTER FLOOR, FRONT
W(POWER SLIDE REAR SEAT)
58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH
58216CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH
58241DGUSSET, WHEELHOUSE INNER, FRONT RH
58242DGUSSET, WHEELHOUSE INNER, FRONT LH
58253DBRACKET, PARKING BRAKE CABLE
58265DBRACKET, PARKING BRAKE CABLE GUIDE, NO.2
58271AREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3
58272BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.4
58277CBRACKET, PARKING BRAKE CABLE GUIDE, NO.4
58281ACOVER, TRANSMISSION AUXILIARY
58286BOOT, SHIFT & SELECT LEVER, NO.1
58288SEAL, SHIFT LEVER BOOT
58368BBRACKET, FUEL TUBE, NO.2
58369BBRACKET, FUEL TUBE, NO.3
TYPE A
TYPE B
58605APANEL SUB-ASSY, FRONT FLOOR SILENCER, FRONT RH
W(RUBBER FORM)
58606APANEL SUB-ASSY, FRONT FLOOR SILENCER, FRONT LH
W(RUBBER FORM)
58607APANEL SUB-ASSY, FRONT FLOOR SILENCER, REAR RH
W(RUBBER FORM)
58608PANEL SUB-ASSY, FRONT FLOOR SILENCER, REAR LH
W(RUBBER FORM)
9011906506
main90119-06506
9011911013
main90119-11013
9017605007
main90176-05007
9017605013
main90176-05013
9046312020
main90463-12020
9046710070
main90467-10070
9095001005
main90950-01005
9095001167
main90950-01167
9095001311
main90950-01311
9095001370
main90950-01370
9095001453
main90950-01453
9095001611
main90950-01611
9095006001
main90950-06001
9095901117
main90959-01117
9165140614
main91651-40614
9166160616
main91661-60616
63 parts on this diagram · 3 diagrams in section
FLOOR PAN & LOWER BACK PANEL for Toyota CROWN
This section contains 112 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota CROWN. Key components include: MEMBER SUB-ASSY, CENTER FLOOR CROSS, MEMBER SUB-ASSY, FRONT FLOOR CROSS, MEMBER, FLOOR SIDE, INNER RH, MEMBER, FLOOR SIDE, INNER LH, PLATE, FLOOR SIDE RAIL, RH.
