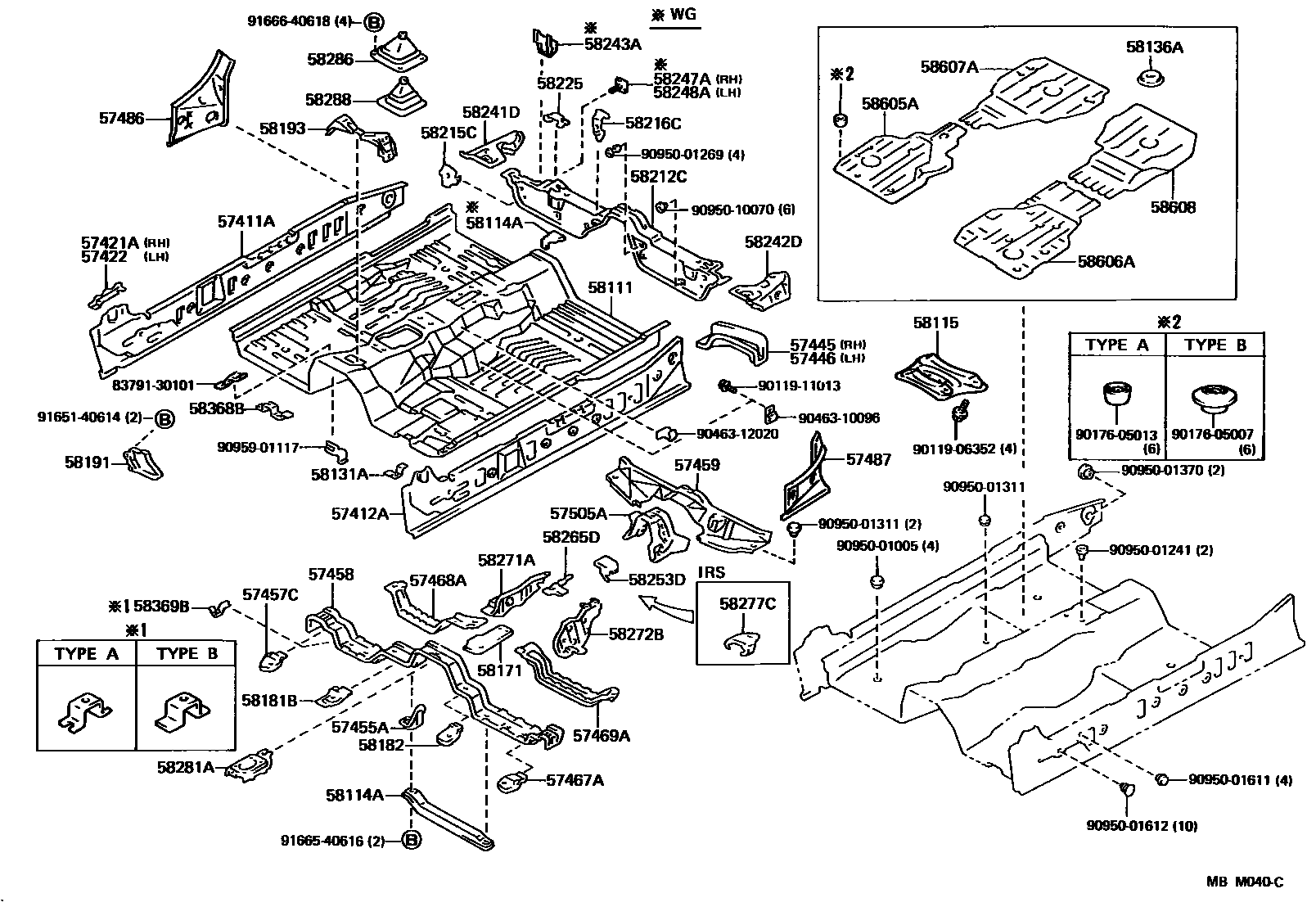

Toyota CROWN — FLOOR PAN & LOWER BACK PANEL
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
57421APLATE, FLOOR SIDE RAIL, RH
57422PLATE, FLOOR SIDE RAIL, LH
57445REINFORCEMENT, NO.5 BODY MOUNTING, RH
57446REINFORCEMENT, NO.5 BODY MOUNTING, LH
57455ABRACKET, FRONT FLOOR CROSSMEMBER
57457CBRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT RH
57458MEMBER, FRONT FLOOR CROSS, NO.1
57459MEMBER, FRONT FLOOR CROSS, NO.2
57467ABRACKET, FRONT SEAT OUTSIDE MOUNTING, FRONT LH
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH
57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH
57505AREINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER
58111PAN, FRONT FLOOR
58114AREINFORCEMENT, FRONT FLOOR PANEL
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58131ABRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58136ACOVER, FRONT FLOOR SERVICE HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
main58171-30050iMS132,135..LHD;MS132..RHD..5F;MS133..4FC..GCC;GS131,LS130,MS133,YS132..4F,5F198709-199110
58181BBRACKET, FRONT SEAT INSIDE MOUNTING, FRONT RH
58182BRACKET, FRONT SEAT INSIDE MOUNTING, FRONT LH
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58212CPAN, CENTER FLOOR, FRONT
W(REAR AIR CONDITIONER)
W(REAR AIR CONDITIONER)
58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH
58216CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH
58225HOLDER, REAR SEAT CUSHION
58241DGUSSET, WHEELHOUSE INNER, FRONT RH
58242DGUSSET, WHEELHOUSE INNER, FRONT LH
58243ABRACKET, REAR SEAT HINGE FRONT
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58253DBRACKET, PARKING BRAKE CABLE
58265DBRACKET, PARKING BRAKE CABLE GUIDE, NO.2
58271AREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3
58272BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.4
58277CBRACKET, PARKING BRAKE CABLE GUIDE, NO.4
58281ACOVER, TRANSMISSION AUXILIARY
58286BOOT, SHIFT & SELECT LEVER, NO.1
58288SEAL, SHIFT LEVER BOOT
58368BBRACKET, FUEL TUBE, NO.2
58369BBRACKET, FUEL TUBE, NO.3
TYPE A
TYPE A
TYPE B
58605APANEL SUB-ASSY, FRONT FLOOR SILENCER, FRONT RH
W(FLOOR MAT)
W(FLOOR MAT)
58606APANEL SUB-ASSY, FRONT FLOOR SILENCER, FRONT LH
W(FLOOR MAT)
58607APANEL SUB-ASSY, FRONT FLOOR SILENCER, REAR RH
W(FLOOR MAT)
58608PANEL SUB-ASSY, FRONT FLOOR SILENCER, REAR LH
W(FLOOR MAT)
8379130101
main83791-30101
9011906352
main90119-06352
9011911013
main90119-11013
9017605007
main90176-05007
9017605013
main90176-05013
9046310096
main90463-10096
9046312020
main90463-12020
9095001005
main90950-01005
9095001241
main90950-01241
9095001269
main90950-01269
9095001311
main90950-01311
9095001370
main90950-01370
9095001611
main90950-01611
9095001612
main90950-01612
9095010070
main90950-10070
9095901117
main90959-01117
9165140614
main91651-40614
9166540616
main91665-40616
9166640618
main91666-40618
68 parts on this diagram · 7 diagrams in section
FLOOR PAN & LOWER BACK PANEL for Toyota CROWN
This section contains 159 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota CROWN. Key components include: MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER, MEMBER SUB-ASSY, CENTER FLOOR CROSS, MEMBER, FLOOR SIDE, INNER RH, MEMBER, FLOOR SIDE, INNER LH, PLATE, FLOOR SIDE RAIL, RH.
