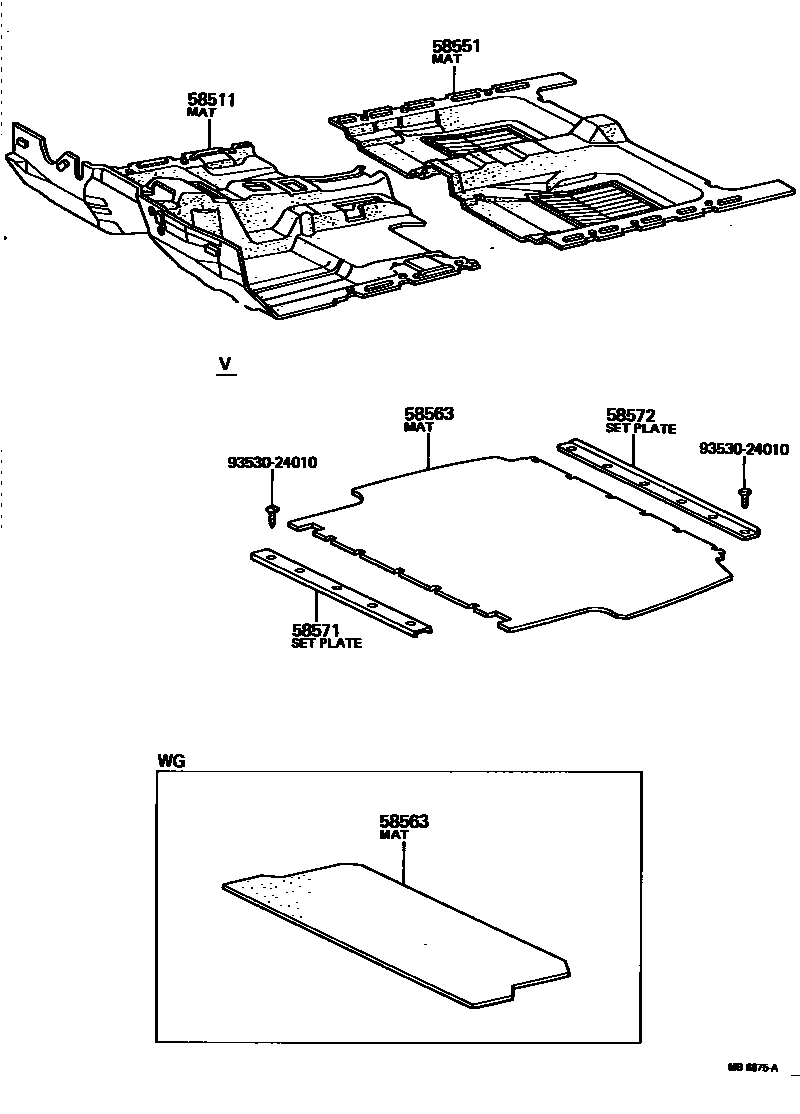

Toyota CROWN — FLOOR MAT
58511MAT, FLOOR, FRONT
FOR BENCH SEAT, L/HEATER
FOR SEPARATE SEAT, L/HEATER
FOR BENCH SEAT, L/HEATER
FOR SEPARATE SEAT, L/HEATER
FOR BENCH SEAT, W/HEATER
FOR BENCH SEAT, W/HEATER
FOR SEPARATE SEAT, W/HEATER
FOR SEPARATE SEAT, W/HEATER
58551MAT, FLOOR, REAR
FOR W/HEATER
FRONT SEATBELT,3POINT E.L.R.
FRONT SEATBELT,3POINT E.L.R.
58563MAT, REAR FLOOR
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
58571SET PLATE, REAR FLOOR MAT, FRONT
58572SET PLATE, REAR FLOOR MAT, REAR
9353024010
main93530-24010
6 parts on this diagram · 1 diagram in section
FLOOR MAT for Toyota CROWN
This section contains 6 genuine Toyota parts for the FLOOR MAT system of the Toyota CROWN. Key components include: MAT, FLOOR, FRONT, MAT, FLOOR, REAR, MAT, REAR FLOOR, SET PLATE, REAR FLOOR MAT, FRONT, SET PLATE, REAR FLOOR MAT, REAR.
