Toyota CROWN — EXHAUST GAS RECIRCULATION SYSTEM

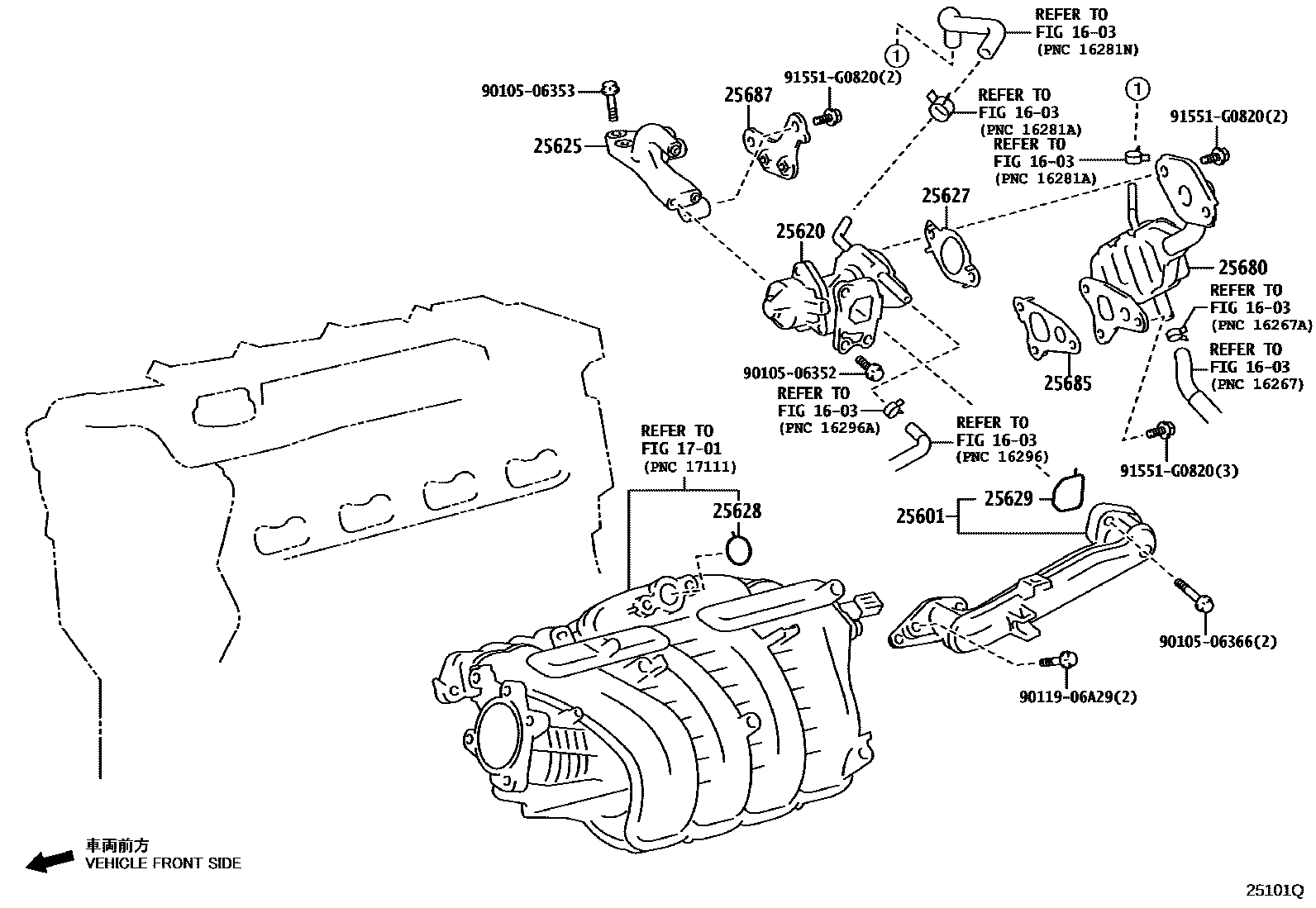

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

25601PIPE SUB-ASSY, EGR, NO.1

main25601-25020i202405

25620VALVE ASSY, EGR

main25620-25050i202405

25625BRACKET, EGR VALVE

main25625-25020i202405

25627GASKET, EGR VALVE

main25627-25010i202405

25628GASKET, EGR INLET

main25628-25010i202405

25629GASKET, EGR VALVE ADAPTER

main25629-25010i202405

25680COOLER ASSY, EGR

main25680-25090i202405

25685GASKET, EGR COOLER, NO.1

main25685-25011i202405

25687BRACKET, EGR COOLER, NO.1

main25687-25020i202405

9010506352

main90105-06352

9010506353

main90105-06353

9010506366

main90105-06366

9011906A29

main90119-06A29

91551G0820

main91551-G0820

16 parts on this diagram · 1 diagram in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota CROWN

This section contains 16 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota CROWN. Key components include: RADIATOR & WATER OUTLET, MANIFOLD, PIPE SUB-ASSY, EGR, NO.1, VALVE ASSY, EGR, BRACKET, EGR VALVE.
