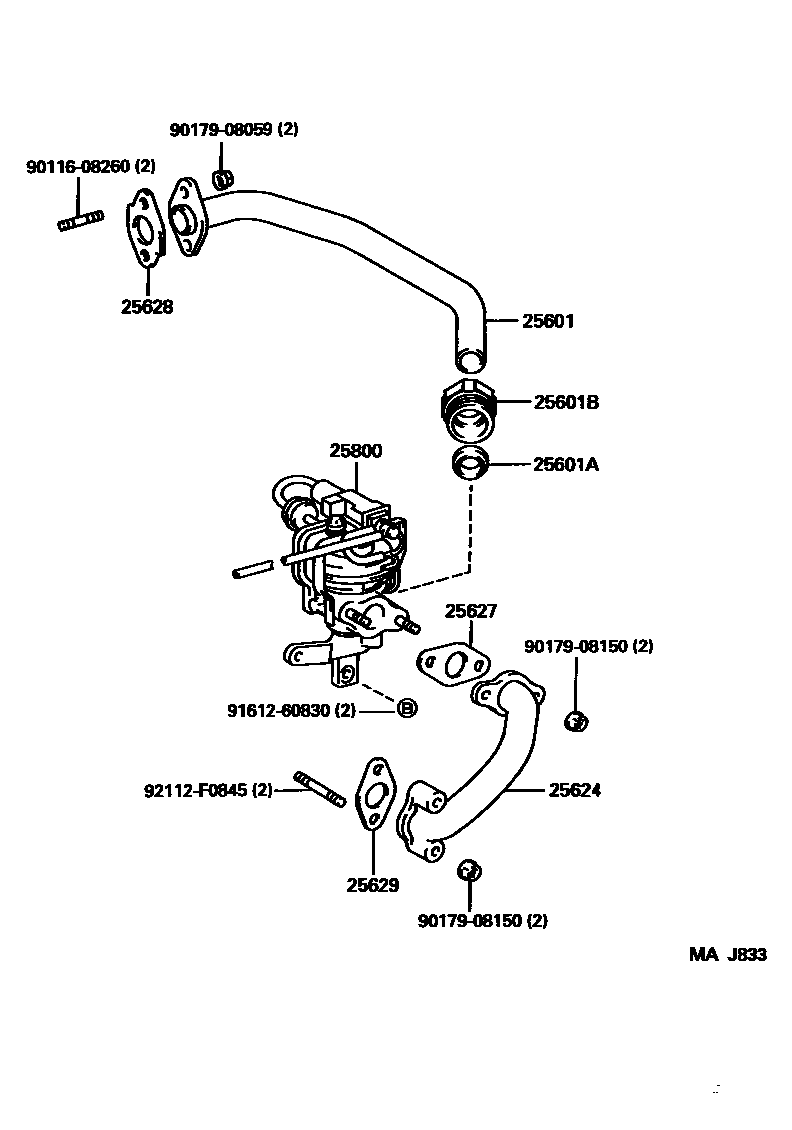

Toyota CROWN — EXHAUST GAS RECIRCULATION SYSTEM

25601PIPE SUB-ASSY, EGR, NO.1

main25601-54061i199505-199512

25601ASLEEVE, BALL, EGR PIPE, NO.1

main90410-25001i199505-199512

25601BNUT, UNION, EGR PIPE, NO.1

main90402-33001i199505-199512

25624ADAPTER, EGR VALVE

main25624-54040i199505-199512

25627GASKET, EGR VALVE

main25627-54011i199505-199512

25628GASKET, EGR INLET

main25628-54012i199505-199512

25629GASKET, EGR VALVE ADAPTER

main25629-54011i199505-199512

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-54130i199505-199512

9011608260

main90116-08260

9017908059

main90179-08059

9017908150

main90179-08150

9161260830

main91612-60830

92112F0845

main92112-F0845

13 parts on this diagram · 1 diagram in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota CROWN

This section contains 13 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota CROWN. Key components include: PIPE SUB-ASSY, EGR, NO.1, SLEEVE, BALL, EGR PIPE, NO.1, NUT, UNION, EGR PIPE, NO.1, ADAPTER, EGR VALVE, GASKET, EGR VALVE.
