Toyota CROWN — ELECTRONIC FUEL INJECTION SYSTEM

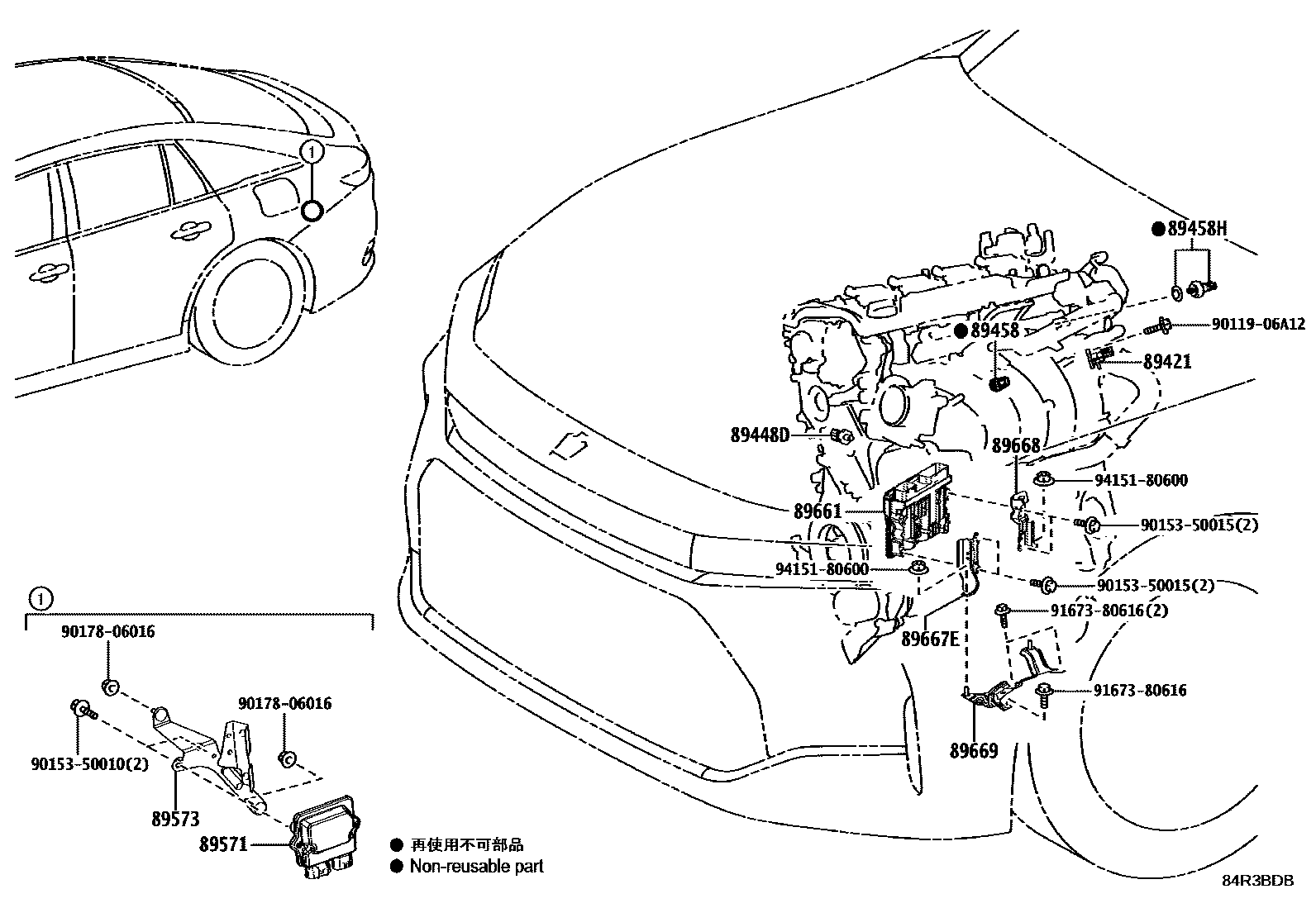

Parts diagram

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-33010i202405

89448DSENSOR, OIL PRESSURE & TEMPERATURE

main89448-33010i202405

89458SENSOR, FUEL PRESSURE

main89458-33030i202405

89458HSENSOR, FUEL PRESSURE, NO.2

main89458-33042i202405

89571COMPUTER, FUEL PUMP CONTROL

main89571-42010i202405

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-30161i202405

89661COMPUTER, ENGINE CONTROL

main89661-3AJ60i202405

DENSO,*614

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-30320i202405

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-30260i202405

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-30180i202405

9011906A12

main90119-06A12

9015350010

main90153-50010

9015350015

main90153-50015

9017806016

main90178-06016

9167380616

main91673-80616

9415180600

main94151-80600

16 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota CROWN

This section contains 16 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota CROWN. Key components include: SENSOR ASSY, VACUUM (FOR E.F.I.), SENSOR, OIL PRESSURE & TEMPERATURE, SENSOR, FUEL PRESSURE, SENSOR, FUEL PRESSURE, NO.2, COMPUTER, FUEL PUMP CONTROL.
