Toyota CROWN — ELECTRONIC FUEL INJECTION SYSTEM

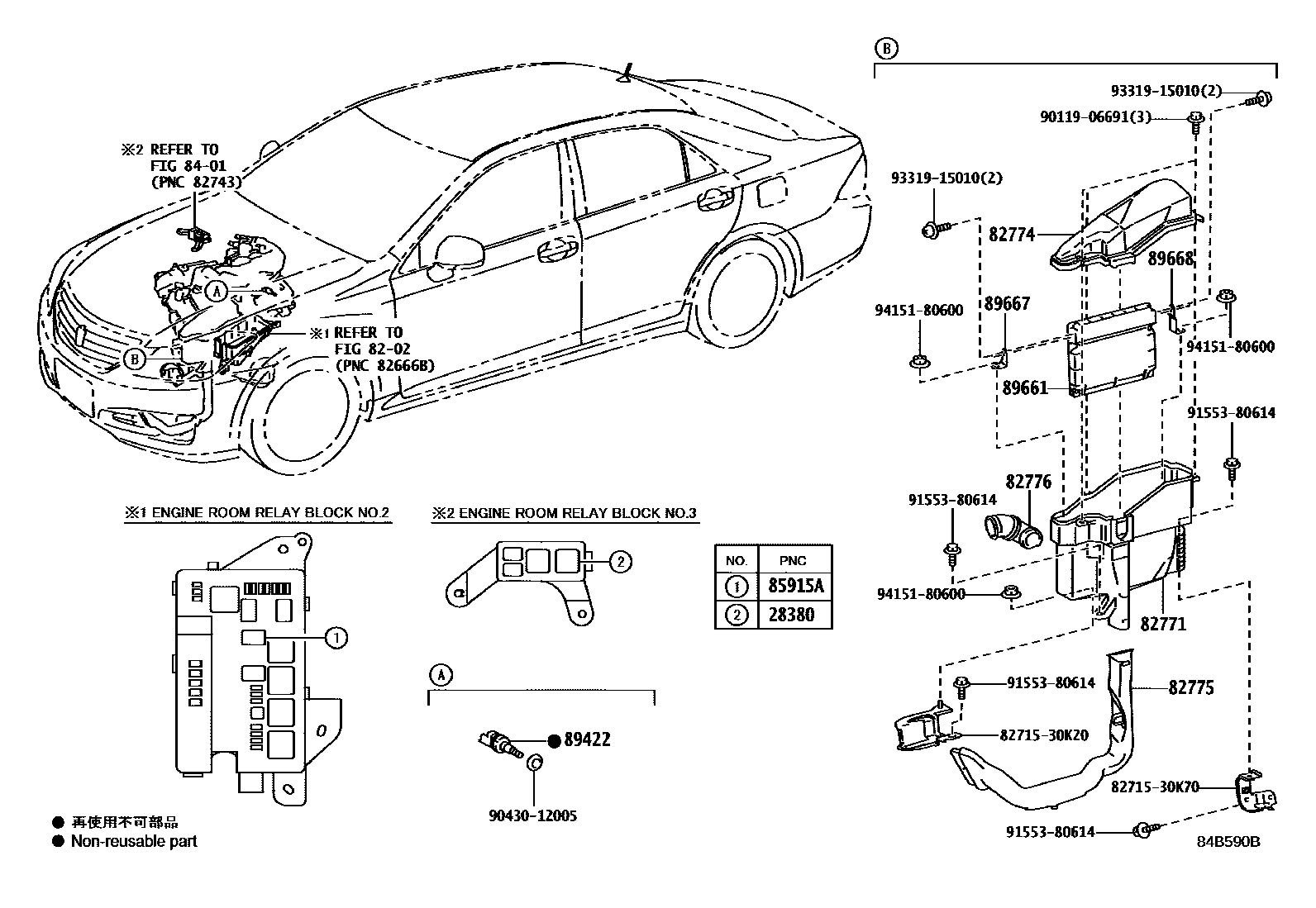

Parts diagram

28380RELAY ASSY, FUEL PUMP

main90987-03003i201009-201212

8202WIRING & CLAMP

→ Go to FIG 82-02

82771BOX, ENGINE ROOM ECU

main82771-30060i201009-201212

82774COVER, ENGINE ROOM ECU

main82774-30060i201009-201212

82775DUCT, ENGINE ROOM ECU INLET

main82775-30060i201009-201212

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-30120i201009-201212

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85915ARELAY, MAIN

main90987-02027i201009-201212

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030i201009-201212

89661COMPUTER, ENGINE CONTROL

main89661-30Q70i201009-201212

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-30300i201009-201212

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-30280i201009-201212

8271530K20BRACKET,WIRING HARNESS CLAMP

main82715-30K20

8271530K70BRACKET,WIRING HARNESS CLAMP

main82715-30K70

9011906691

main90119-06691

9043012005

main90430-12005

9155380614

main91553-80614

9331915010

main93319-15010

9415180600

main94151-80600

19 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota CROWN

This section contains 19 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota CROWN. Key components include: RELAY ASSY, FUEL PUMP, WIRING & CLAMP, BOX, ENGINE ROOM ECU, COVER, ENGINE ROOM ECU, DUCT, ENGINE ROOM ECU INLET.
