Toyota CROWN — ELECTRONIC FUEL INJECTION SYSTEM

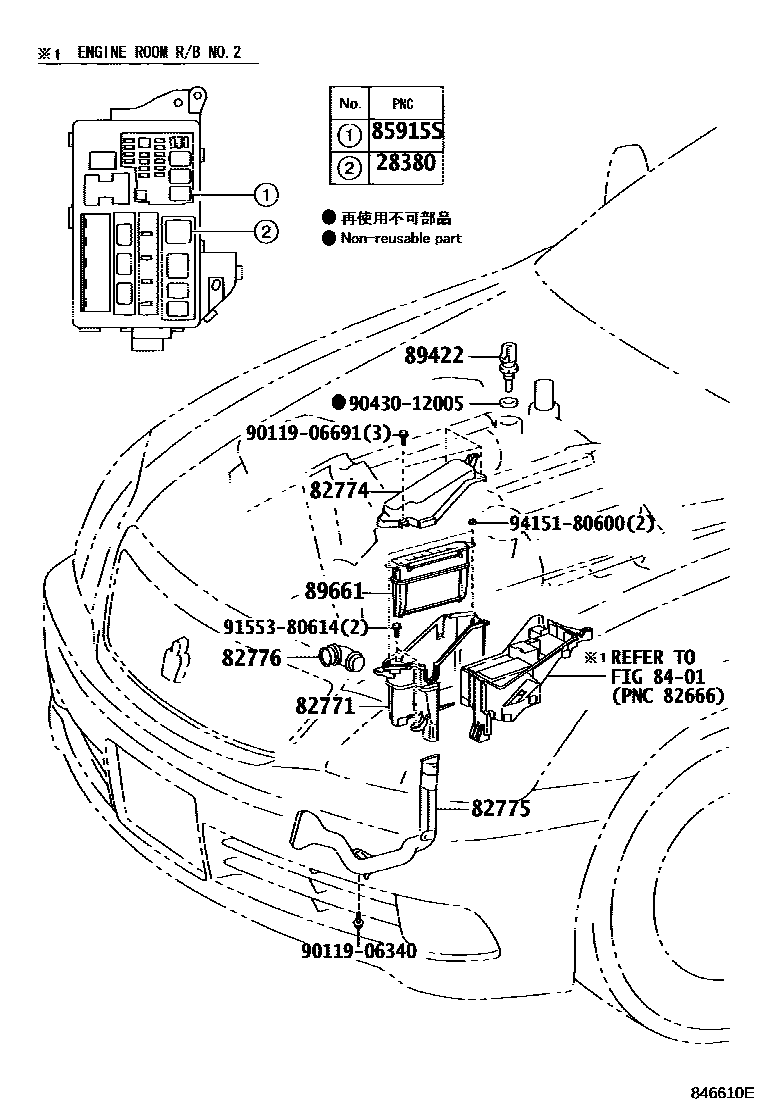

Parts diagram

28380RELAY ASSY, FUEL PUMP

main90987-03003i200411-200802

82771BOX, ENGINE ROOM ECU

main82771-30040i200411-200802

82774COVER, ENGINE ROOM ECU

main82774-30050i200411-200802

82775DUCT, ENGINE ROOM ECU INLET

main82775-30040i200411-200802

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-30090i200411-200802

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85915SRELAY, HEATER (FOR AIR FUEL RATIO SENSOR)

main90987-02027i200411-200802

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030i200411-200802

89661COMPUTER, ENGINE CONTROL

main89661-30A90i200411-200509

main89661-30B90i200509-200802

9011906340

main90119-06340

9011906691

main90119-06691

9043012005

main90430-12005

9155380614

main91553-80614

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota CROWN

This section contains 14 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota CROWN. Key components include: RELAY ASSY, FUEL PUMP, BOX, ENGINE ROOM ECU, COVER, ENGINE ROOM ECU, DUCT, ENGINE ROOM ECU INLET, DUCT, ENGINE ROOM ECU OUTLET.
