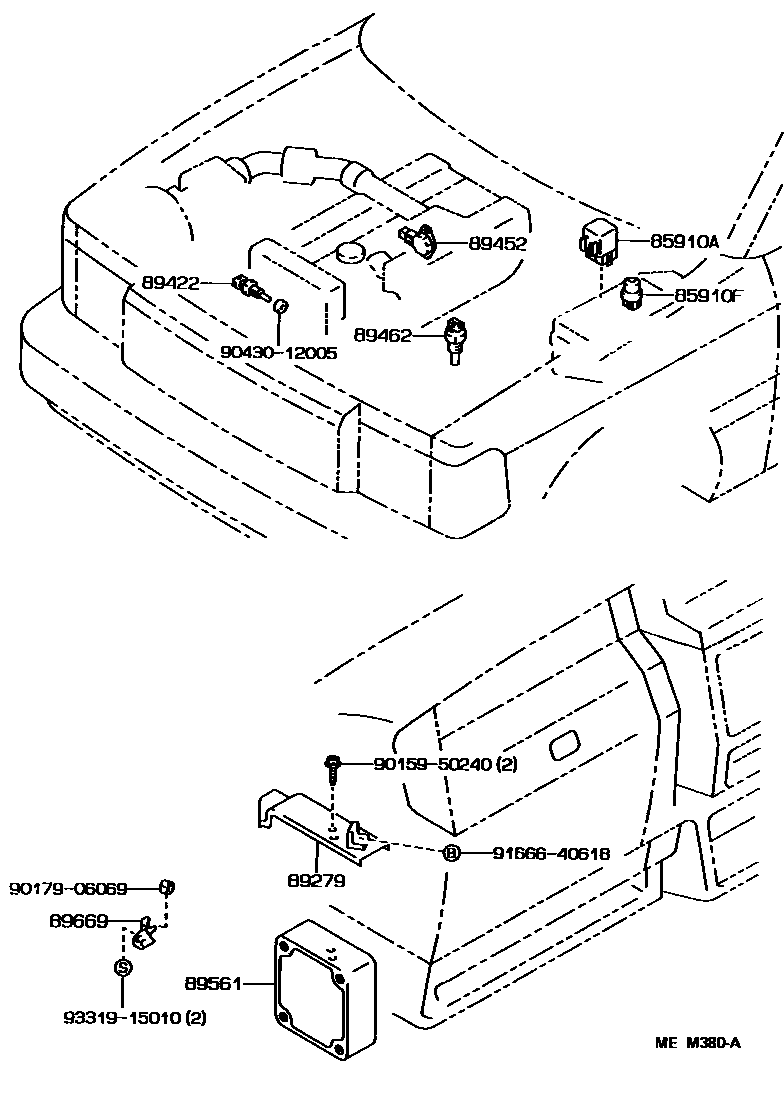

Toyota CROWN — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iGS131,MS133,135198709-199110

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iGS131,MS133,135198709-199110

89279COVER, ENGINE CONTROL COMPUTER

main89279-30030iGS131,MS133,135..RHD198709-199110

main89279-30040iGS131,MS133,135..LHD198709-199110

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iGS131,MS133,135198808-199110

main89422-30020iMS133,135198709-198808

sub89422-12010

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-14050iMS135198709-199110

main89452-22010iGS131,MS133198709-199110

89462SWITCH, START INJECTOR TIME

main89462-20020iGS131198812-199006

main89462-20030iMS133,135198808-199006

main89462-30011iMS133,135198709-198808

89561COMPUTER, FUEL INJECTION

main89561-30140iMS133198709-199110

main89561-30150iGS131198812-199110

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-30020iGS131,MS133,135..RHD198709-199110

main89669-30030iGS131,MS133,135..LHD198709-199110

9015950240

main90159-50240

9017906069

main90179-06069

9043012005

main90430-12005

9166640618

main91666-40618

9331915010

main93319-15010

13 parts on this diagram · 3 diagrams in section
