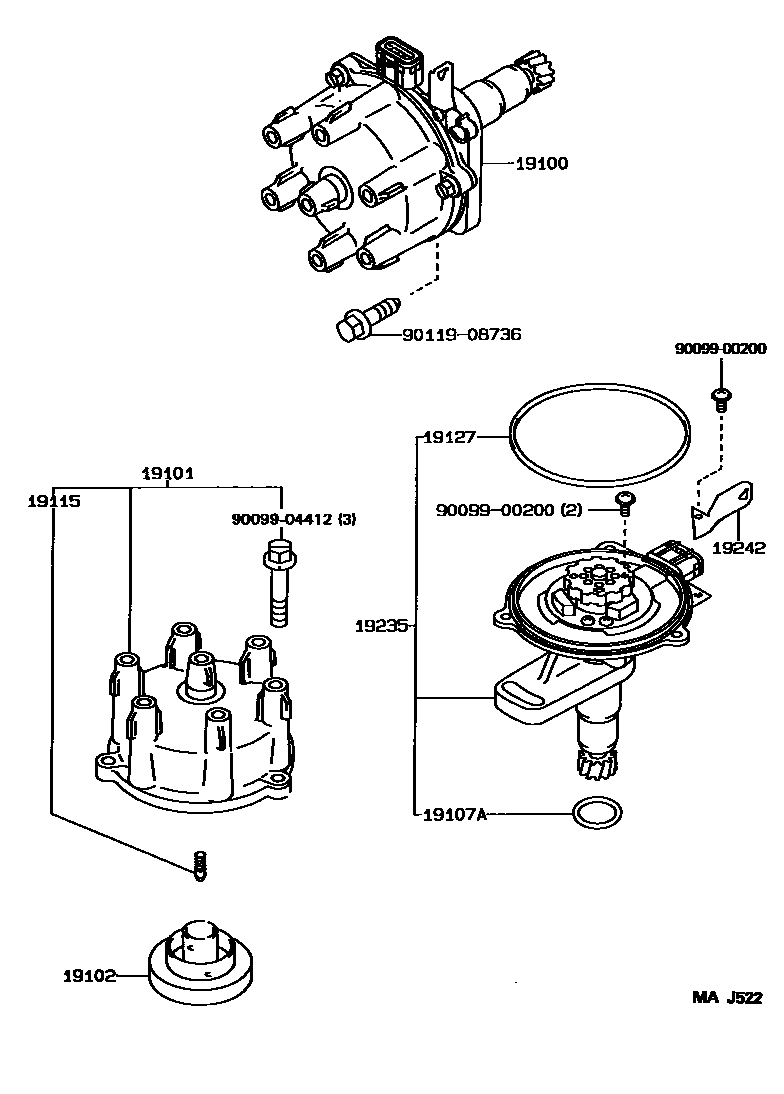

Toyota CROWN — DISTRIBUTOR

0001 1 0002 1

19100DISTRIBUTOR ASSY

main19100-46011i2JZGE..JZS155..LHD199512-199909

main19100-70220i1GFE..GS151199707-199808

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-70020i1GFE..GS151199707-199808

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-46011i2JZGE..JZS155..LHD199512-199909

main19102-70160i1GFE..GS151199707-199808

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14095i1GFE..GS151199707-199808

main90099-14109i2JZGE..JZS155..LHD199512-199909

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-88280i1GFE..GS151199707-199808

19127PACKING, DUST PROOF

main19127-61240i2JZGE..JZS155..LHD199512-199909

19235HOUSING, DISTRIBUTOR

main19235-46010i2JZGE..JZS155..LHD199512-199909

main19235-70160i1GFE..GS151199707-199808

19242CLAMP, CORD

main19242-70140i1GFE..GS151199707-199808

9009900200

main90099-00200

9009904412

main90099-04412

9011908736

main90119-08736

11 parts on this diagram · 2 diagrams in section
