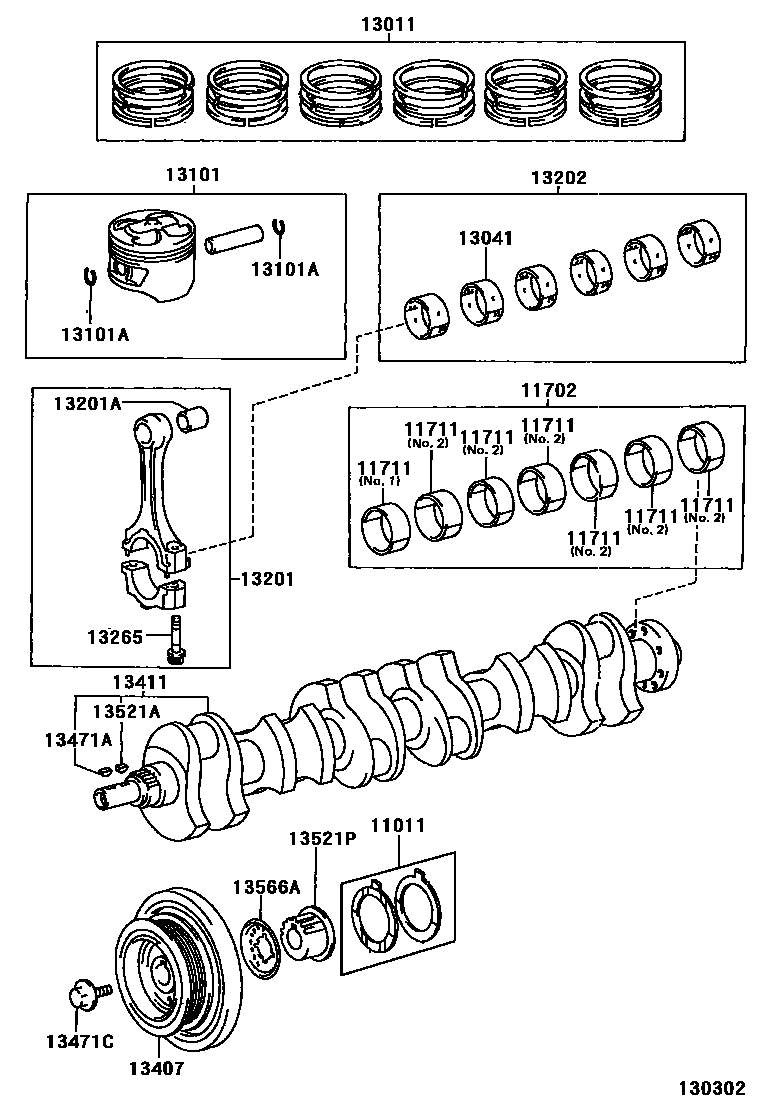

Toyota CROWN — CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
11702BEARING SET, CRANKSHAFT
U/S 0.25
U/S 0.25
11711BEARING, CRANKSHAFT
MARK 1,MARK 1,NO.1
MARK 2,MARK 2,NO.1
MARK 3,MARK 3,NO.1
MARK 4,MARK 4,NO.1
MARK 5,MARK 5,NO.1
MARK 1:REFER TO REPAIR MANUAL,MARK 1,NO.1
MARK 2:REFER TO REPAIR MANUAL,MARK 2,NO.1
MARK 3,NO.1,REFER R/M
MARK 4:REFER TO REPAIR MANUAL,MARK 4,NO.1
MARK 5,NO.1,REFER R/M
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4:REFER TO REPAIR MANUAL,MARK 4,NO.2
MARK 5:REFER TO REPAIR MANUAL,MARK 5,NO.2
13011RING SET, PISTON
STD
13041BEARING, CONNECTING ROD
MARK 1,REFER REPAIR MANUAL
REFER TO REPAIR MANUAL,MARK 2
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
13101PISTON SUB-ASSY, W/PIN
STD,REFER TO REPAIR MANUAL
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
REFER TO REPAIR MANUAL
13201ABUSH(FOR CONNECTING ROD SMALL END)
13202BEARING SET, CONNECTING ROD
U/S 0.25
U/S 0.25
13265BOLT, CONNECTING ROD
13407DAMPER SUB-ASSY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13521PPULLEY, CRANKSHAFT TIMING
13566AGUIDE, TIMING BELT
18 parts on this diagram · 1 diagram in section
CRANKSHAFT & PISTON for Toyota CROWN
This section contains 18 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota CROWN. Key components include: WASHER SET, CRANKSHAFT THRUST, BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, RING SET, PISTON, BEARING, CONNECTING ROD.
